홈/종합산업장비/센서/로드셀/FUTEK QLA383 Low Profile Portable Calibration Tripod

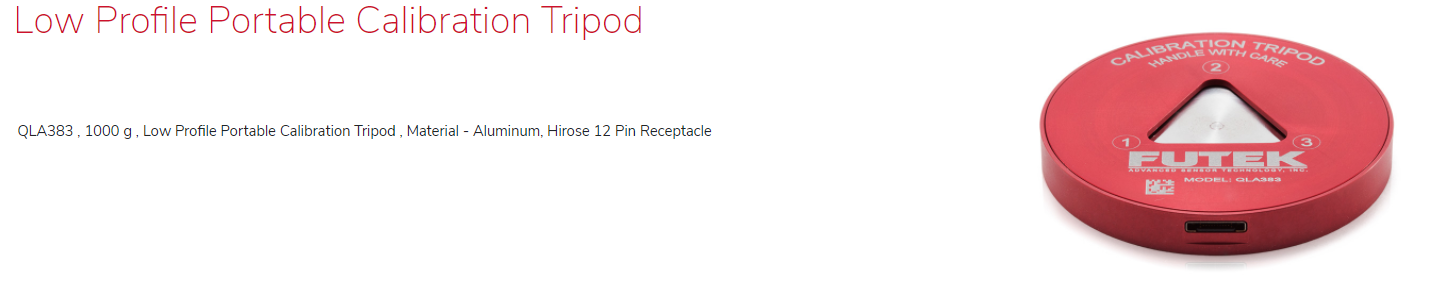

FUTEK QLA383 Low Profile Portable Calibration Tripod

QLA383 , 1000 g , Low Profile Portable Calibration Tripod , Material - Aluminum, Hirose 12 Pin Receptacle

QLA383 , 1000 g , Low Profile Portable Calibration Tripod , Material - Aluminum, Hirose 12 Pin Receptacle

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA383 , 1000 g , Low Profile Portable Calibration Tripod , Material - Aluminum, Hirose 12 Pin Receptacle

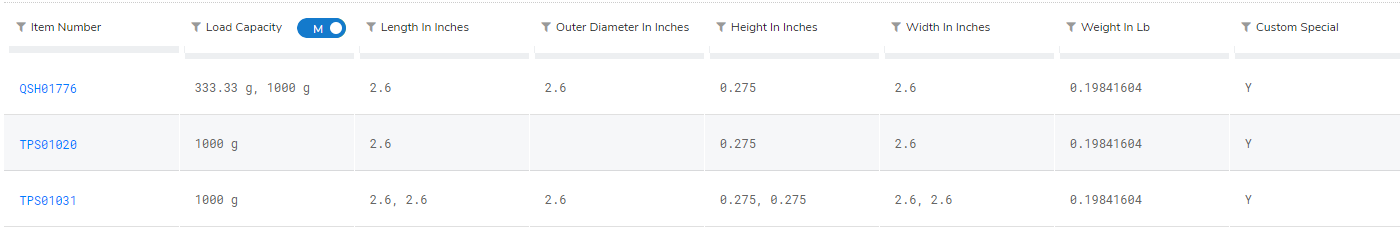

QSH01776

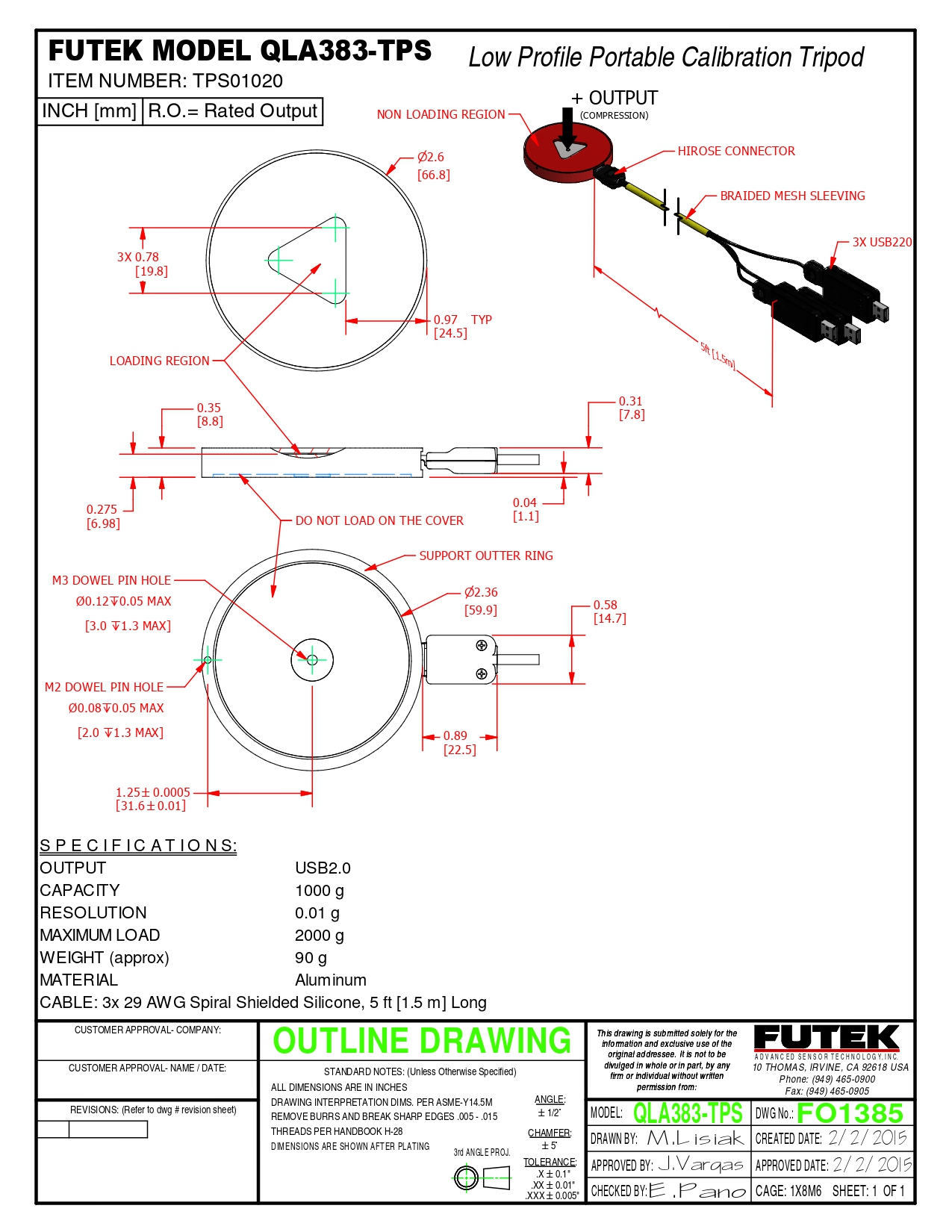

TPS01020

TPS01031

Description

Low Profile Portable Calibration Tripod

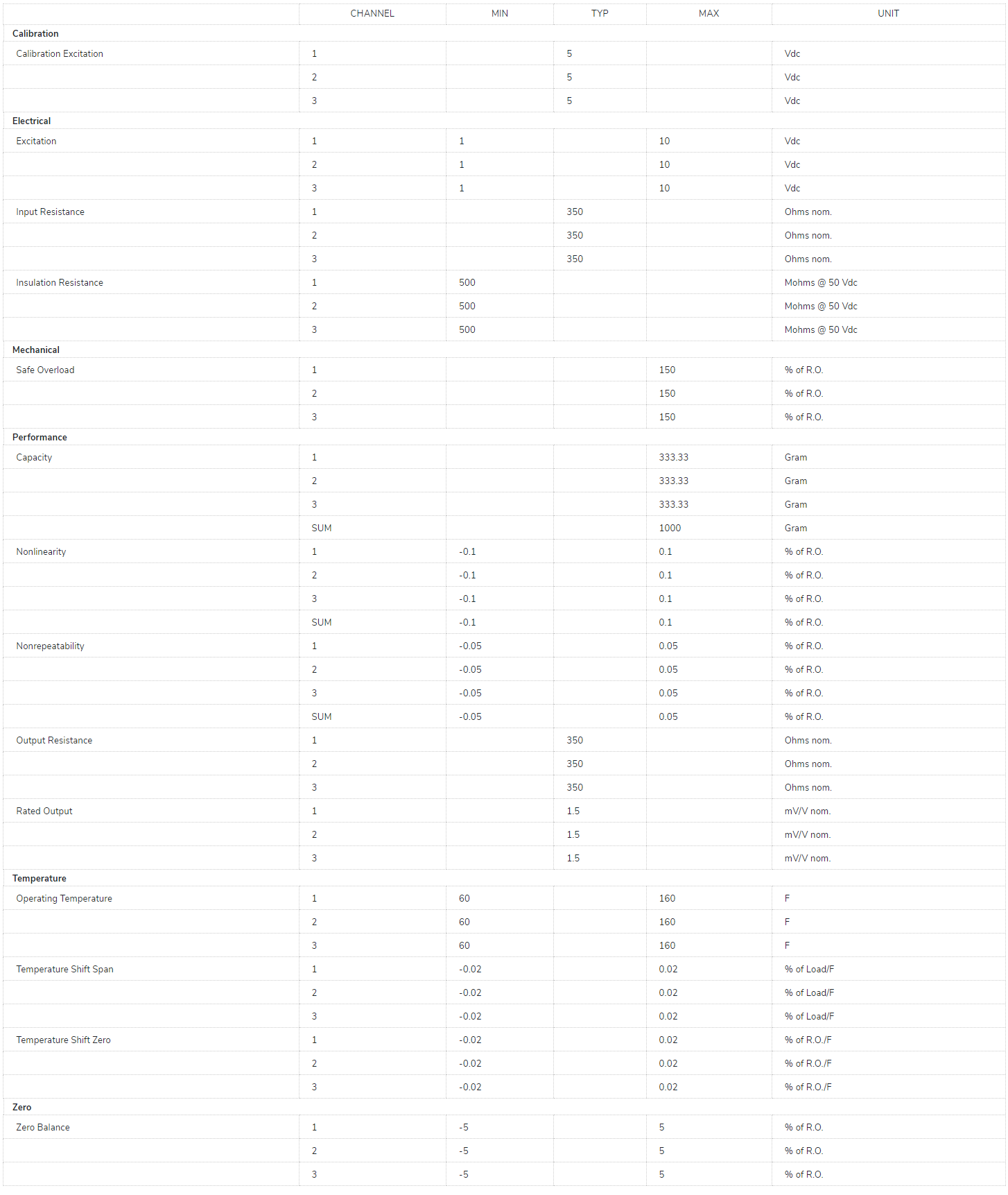

Specifications
