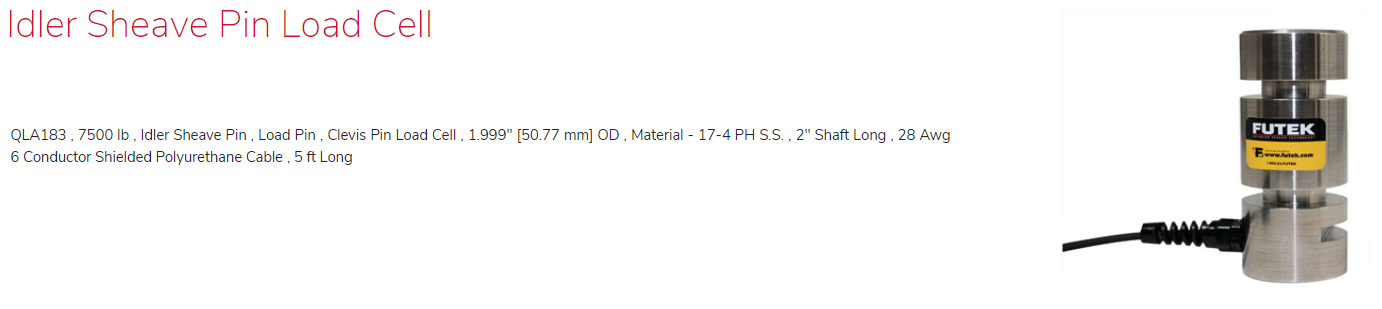

FUTEK QLA183 Idler Sheave Pin Load Cell

QLA183 , 7500 lb , Idler Sheave Pin , Load Pin , Clevis Pin Load Cell , 1.999" [50.77 mm] OD , Material - 17-4 PH S.S. , 2" Shaft Long , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

FUTEK QLA183 Idler Sheave Pin Load Cell 이미지

QLA183 , 7500 lb , Idler Sheave Pin , Load Pin , Clevis Pin Load Cell , 1.999" [50.77 mm] OD , Material - 17-4 PH S.S. , 2" Shaft Long , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA183 , 7500 lb , Idler Sheave Pin , Load Pin , Clevis Pin Load Cell , 1.999" [50.77 mm] OD , Material - 17-4 PH S.S. , 2" Shaft Long , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

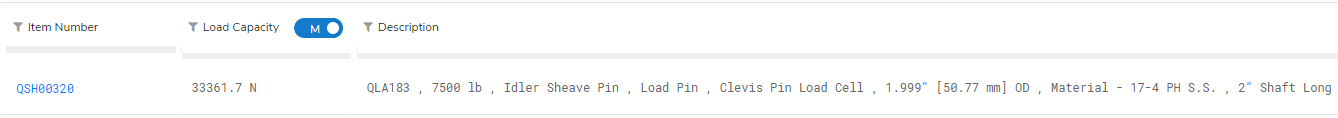

QSH00320

Description

Idler Sheave Pin Load Cell

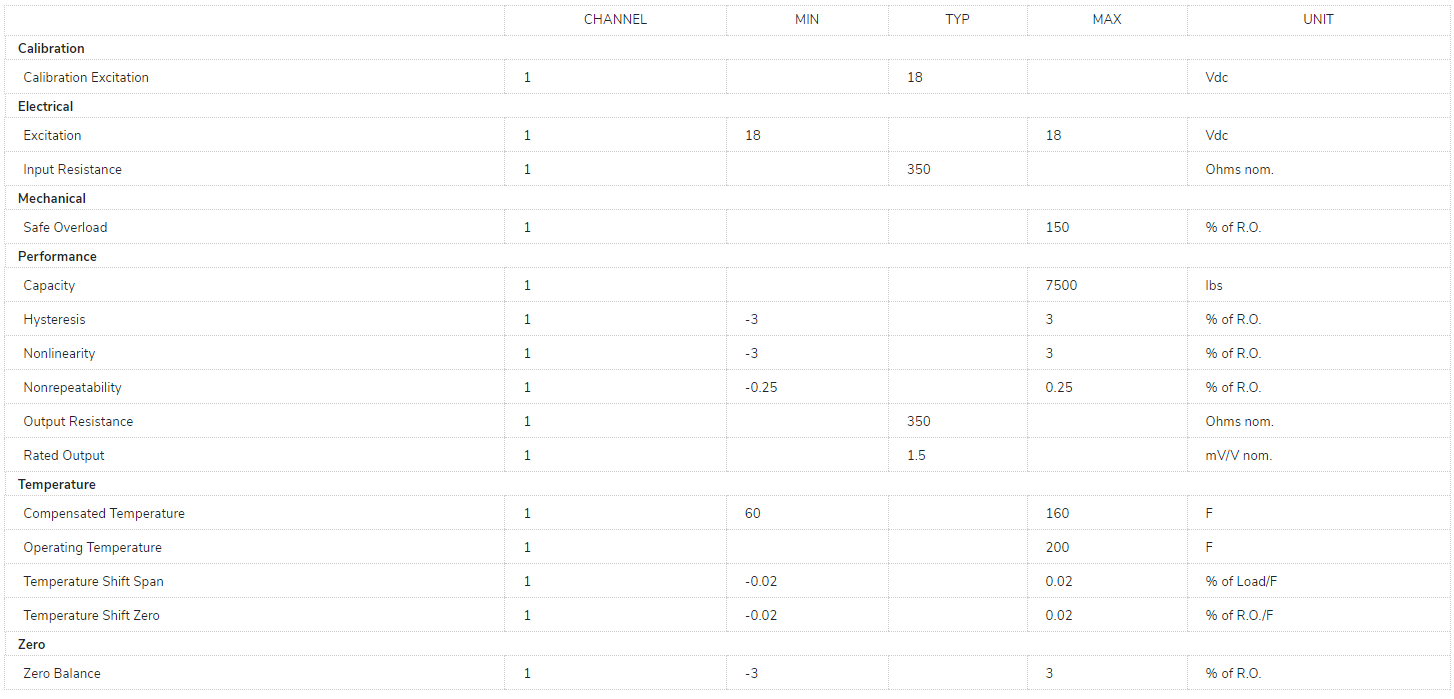

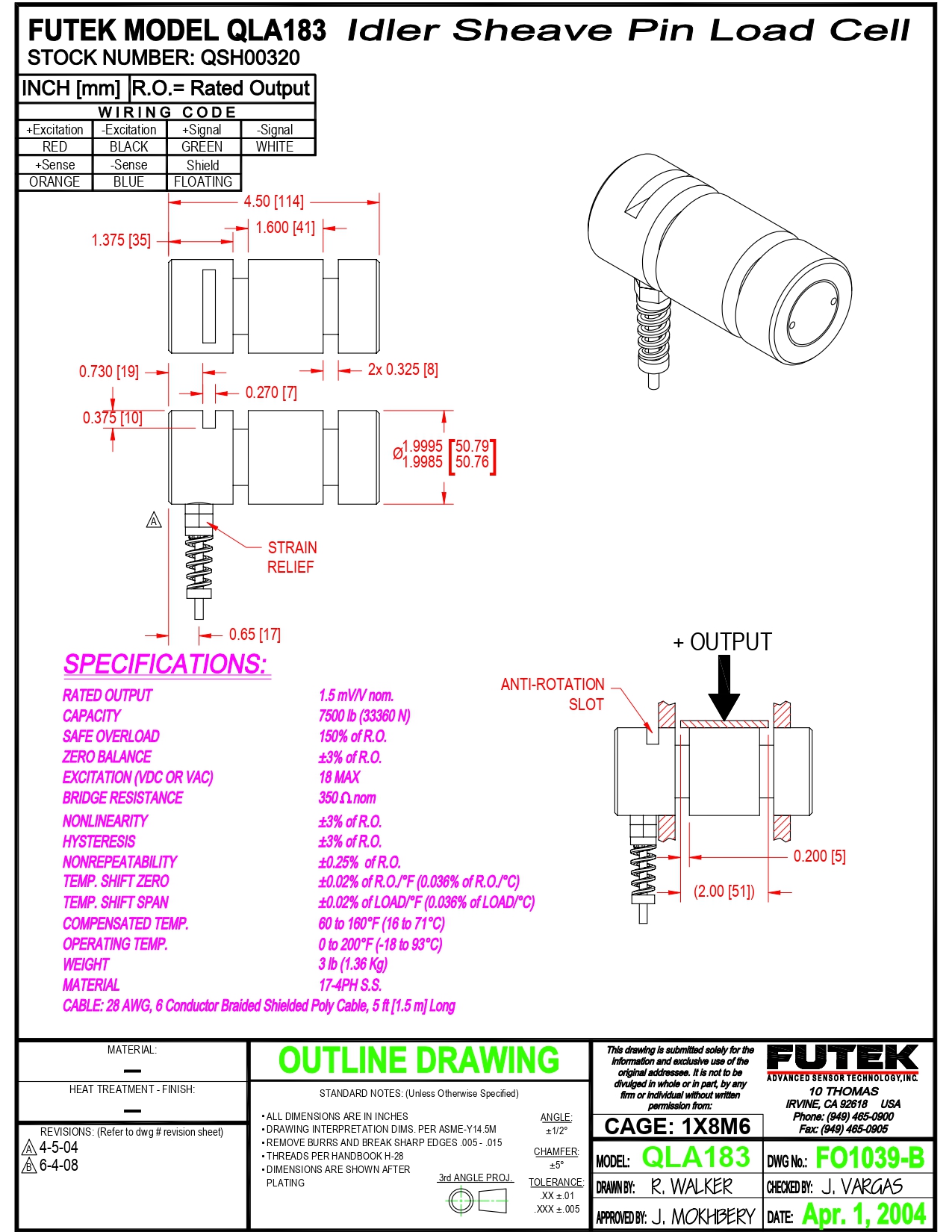

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
