FUTEK QLA294 Heavy Duty Wire Rope Test Load Cell Male-Male Threads

QLA294 , 10000 lb , Heavy Duty Wire Rope Test Load Cell Male-Male Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK QLA294 Heavy Duty Wire Rope Test Load Cell Male-Male Threads 이미지

QLA294 , 10000 lb , Heavy Duty Wire Rope Test Load Cell Male-Male Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA294 , 10000 lb , Heavy Duty Wire Rope Test Load Cell Male-Male Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

QSH01019

Description

Heavy Duty Wire Rope Test Load Cell Male / Female Threads

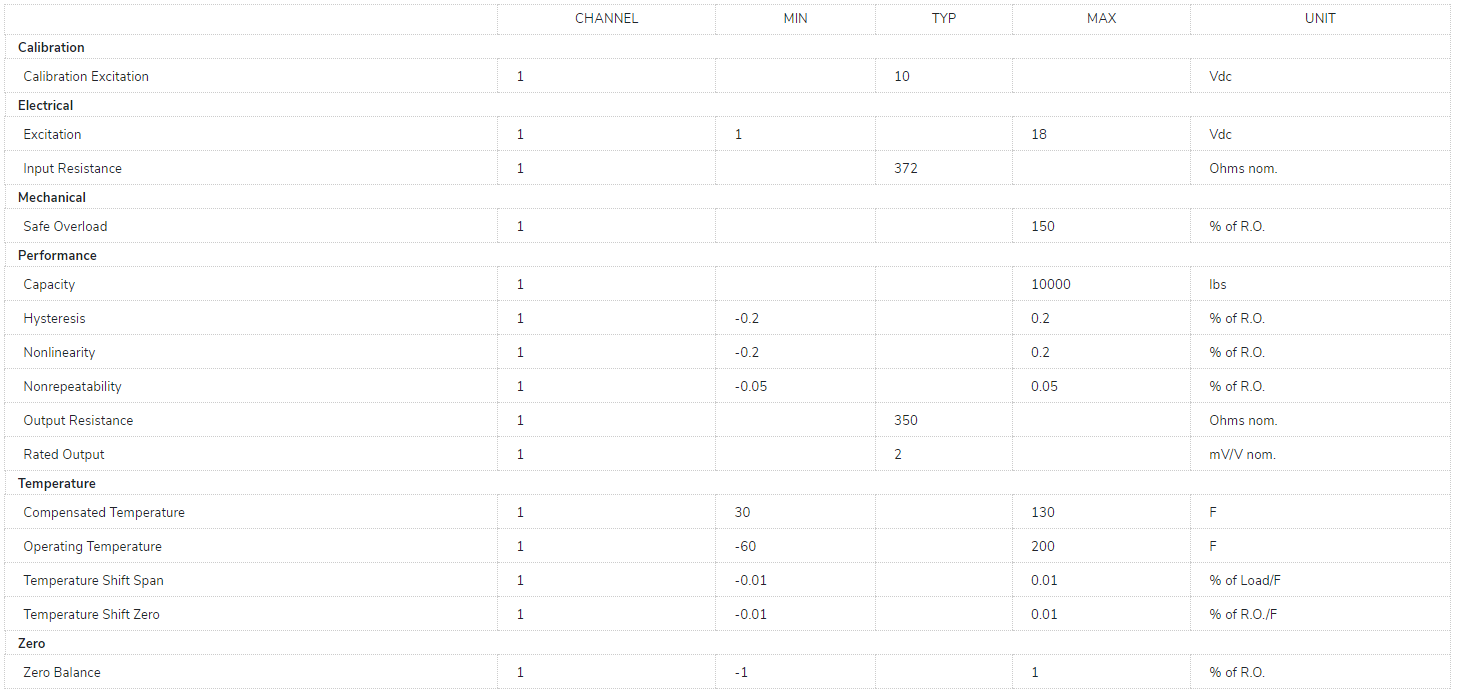

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
