홈/종합산업장비/센서/로드셀/FUTEK QLA291 Heavy Duty Wire Rope Test Load Cell Male-Female Threads

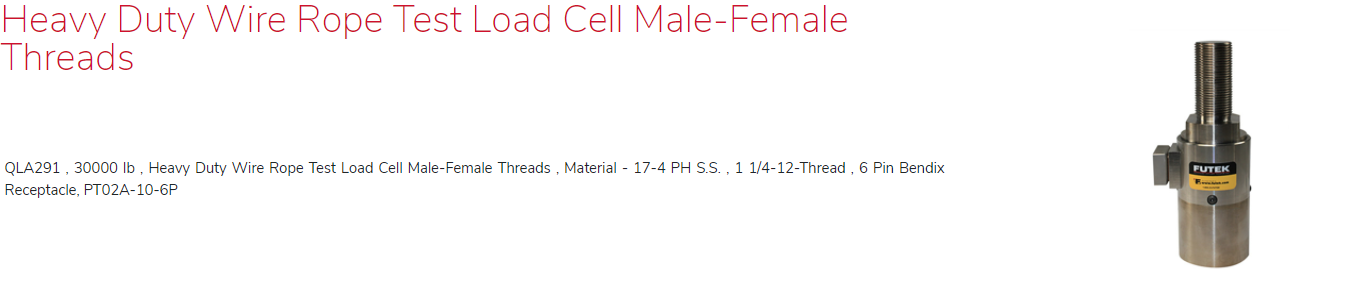

FUTEK QLA291 Heavy Duty Wire Rope Test Load Cell Male-Female Threads

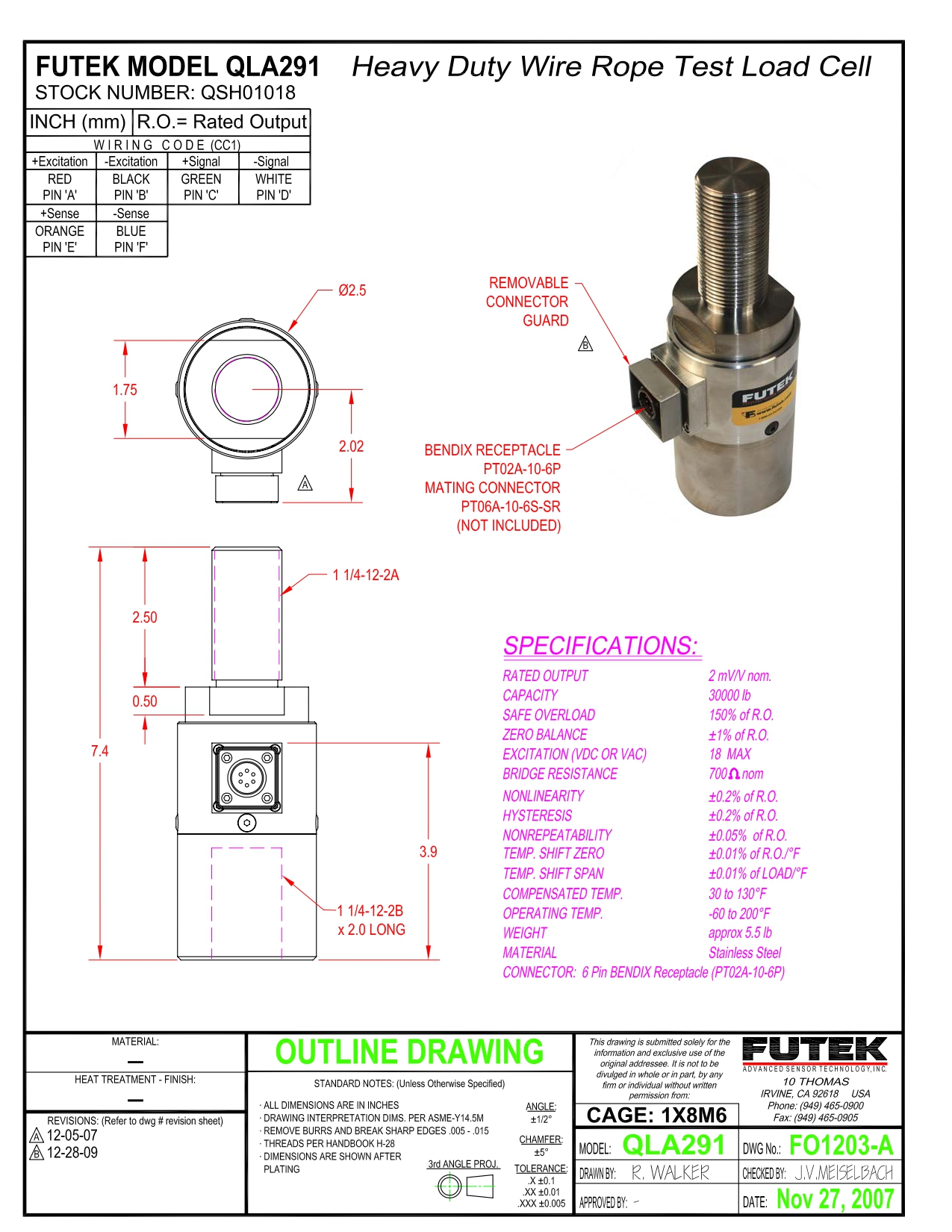

QLA291 , 30000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK QLA291 Heavy Duty Wire Rope Test Load Cell Male-Female Threads 이미지

QLA291 , 30000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA291 , 30000 lb , Heavy Duty Wire Rope Test Load Cell Male-Female Threads , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

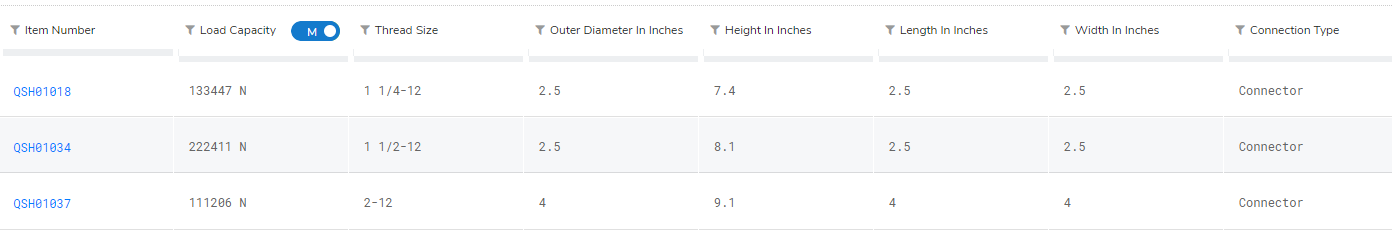

QSH01018

QSH01037

QSH01034

Description

Heavy Duty Wire Rope Test Load Cell Male-Female Threads

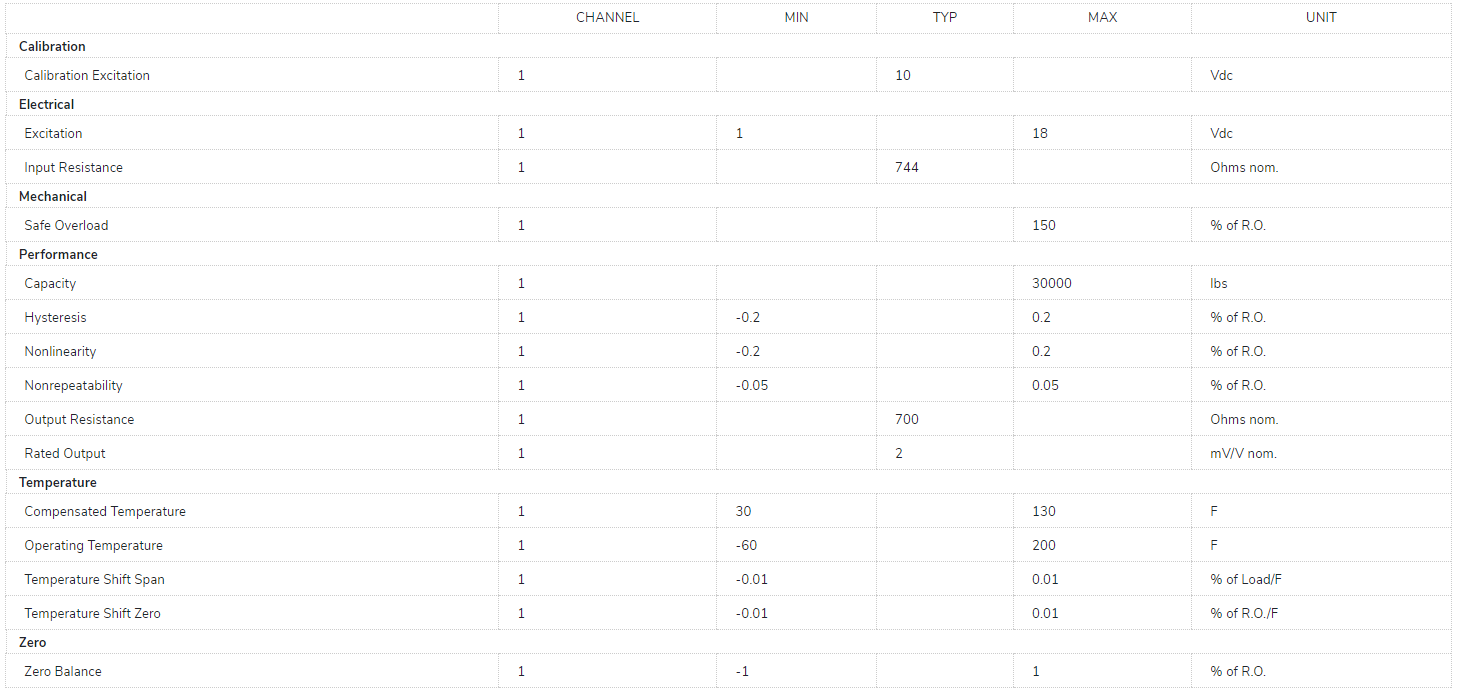

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법

로드셀 다른 상품

FUTEK LCF505 Universal Pancake Load Cell With Tension Base 썸네일
FUTEK LCF505 Universal Pancake Load Cell With Tension Base
LCF505 , 25000 lb , Low Profile Universal Pancake With Tension Base, RoHS Compliant, Material - 17-4 PH S.S. , 1 1/4-12-Thread , 4 mV/V , 6 Pin Bendix Receptacle, PT02E-10-6P
FUTEK LCF455 Universal Pancake Load Cell With Tension Base 썸네일
FUTEK LCF455 Universal Pancake Load Cell With Tension Base
LCF455 , 1000 lb , Low Profile Universal Pancake With Tension Base , +/-0.05% Non-Linearity , Material - 2024-T4 , 5/8-18-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P
FUTEK LCF500 Universal Pancake Load Cell 썸네일
FUTEK LCF500 Universal Pancake Load Cell
LCF500 , Ch 1: 25000 lb; Ch 2: 25000 lb , Low Profile Universal Pancake , Dual Bridge , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 4 mV/V , 6 Pin Bendix Receptacle, PT02A-10-6P
FUTEK LCF450 Universal Pancake Load Cell 썸네일
FUTEK LCF450 Universal Pancake Load Cell
LCF450 , 300 lb , Low Profile Universal Pancake , RoHS Compliant, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
FUTEK LCF400 Universal Pancake Load Cell 썸네일
FUTEK LCF400 Universal Pancake Load Cell
LCF400 , 250 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
FUTEK LCF300 Universal Pancake Load Cell 썸네일
FUTEK LCF300 Universal Pancake Load Cell
LCF300 , 25 lb , Universal Load Cell , RoHS Compliant, Material - 2024-T4 , 1/4-28-Thread , 4 Pin Lemo Receptacle, EGG.0B.304.CLL
FUTEK LCF555 High Capacity Pancake Load Cell With Tension Base 썸네일
FUTEK LCF555 High Capacity Pancake Load Cell With Tension Base
LCF555 , 100000 lb , Low Profile Universal Pancake With Tension Base , RoHS Compliant, 4 mV/V , Material - 17-4 PH S.S. , 1 3/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P
FUTEK LCF550 High Capacity Pancake Load Cell 썸네일
FUTEK LCF550 High Capacity Pancake Load Cell
Model LCF550 is a Pancake Load Cell designed for high capacity compression and tension applications. Built from a robust 17-4 Stainless Steel in a 100,000 lbs capacity, the LCF550 Pancake Load Cell can be used in most grueling environments. The low profile design also features 16 bolt down holes allowing easy mounting. You will also find options for Fatigue Rating, and Amplified Version readily available.
