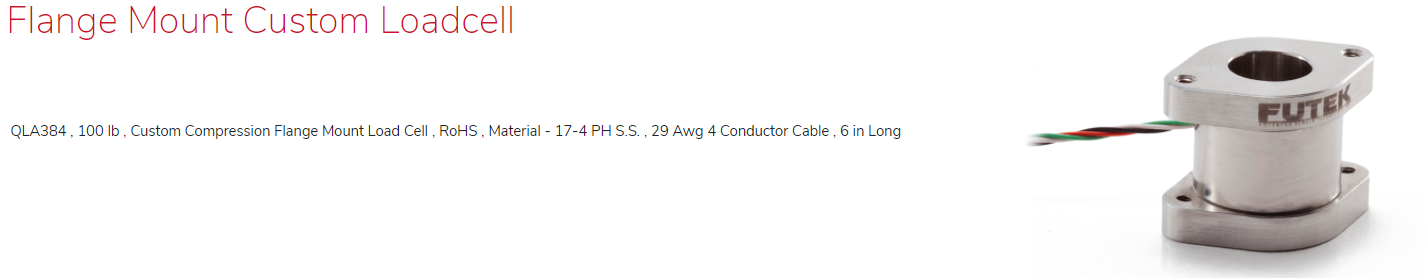

FUTEK QLA384 Flange Mount Custom Loadcell

QLA384 , 100 lb , Custom Compression Flange Mount Load Cell , RoHS , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Cable , 6 in Long

FUTEK QLA384 Flange Mount Custom Loadcell 이미지

QLA384 , 100 lb , Custom Compression Flange Mount Load Cell , RoHS , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Cable , 6 in Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA384 , 100 lb , Custom Compression Flange Mount Load Cell , RoHS , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Cable , 6 in Long

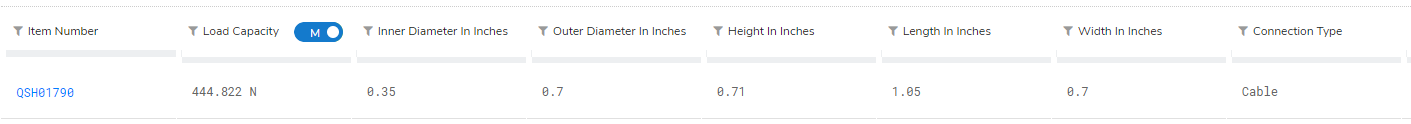

QSH01790

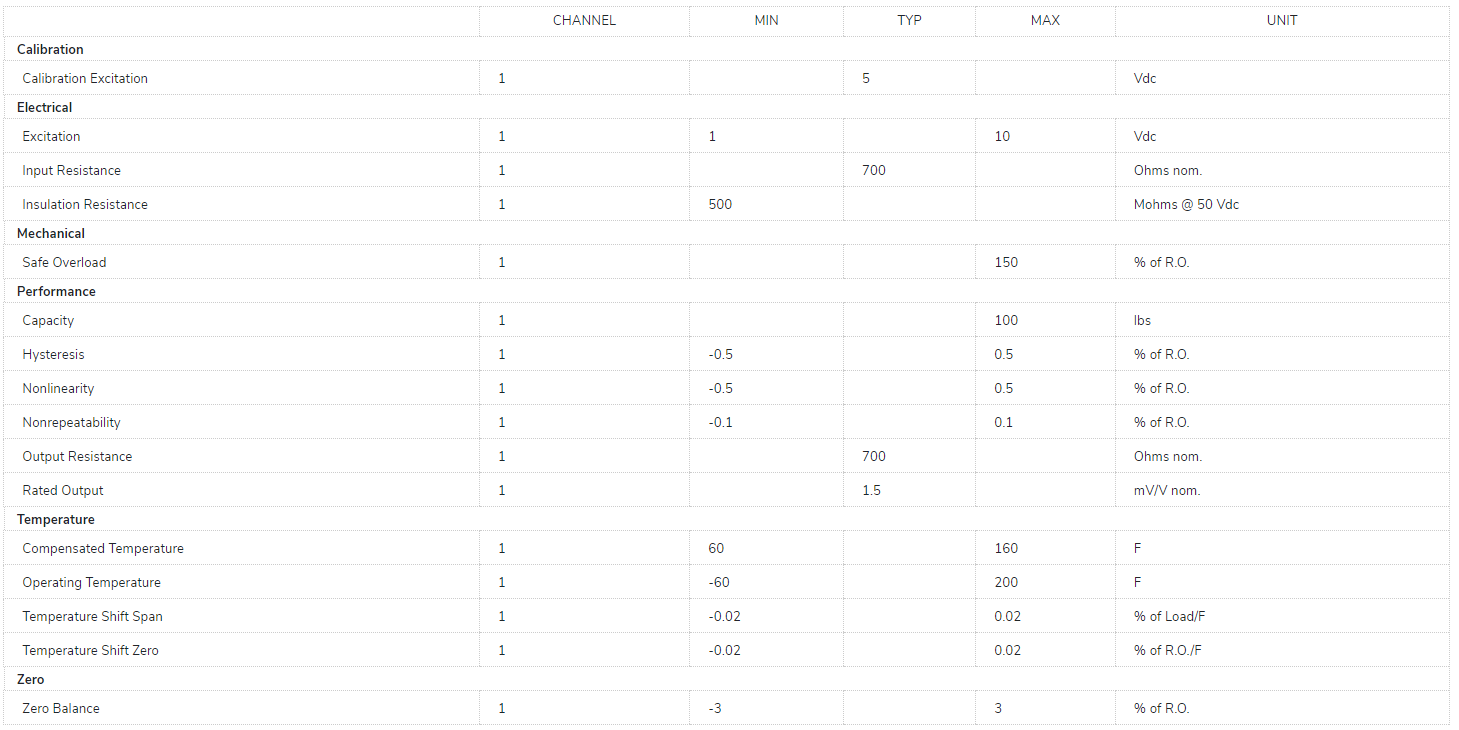

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법

로드셀 다른 상품

FUTEK LCF505 Universal Pancake Load Cell With Tension Base 썸네일

FUTEK LCF505 Universal Pancake Load Cell With Tension Base

LCF505 , 25000 lb , Low Profile Universal Pancake With Tension Base, RoHS Compliant, Material - 17-4 PH S.S. , 1 1/4-12-Thread , 4 mV/V , 6 Pin Bendix Receptacle, PT02E-10-6P

FUTEK LCF455 Universal Pancake Load Cell With Tension Base 썸네일

FUTEK LCF455 Universal Pancake Load Cell With Tension Base

LCF455 , 1000 lb , Low Profile Universal Pancake With Tension Base , +/-0.05% Non-Linearity , Material - 2024-T4 , 5/8-18-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK LCF500 Universal Pancake Load Cell 썸네일

FUTEK LCF500 Universal Pancake Load Cell

LCF500 , Ch 1: 25000 lb; Ch 2: 25000 lb , Low Profile Universal Pancake , Dual Bridge , Material - 17-4 PH S.S. , 1 1/4-12-Thread , 4 mV/V , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK LCF450 Universal Pancake Load Cell 썸네일

FUTEK LCF450 Universal Pancake Load Cell

LCF450 , 300 lb , Low Profile Universal Pancake , RoHS Compliant, Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

FUTEK LCF400 Universal Pancake Load Cell 썸네일

FUTEK LCF400 Universal Pancake Load Cell

LCF400 , 250 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

FUTEK LCF300 Universal Pancake Load Cell 썸네일

FUTEK LCF300 Universal Pancake Load Cell

LCF300 , 25 lb , Universal Load Cell , RoHS Compliant, Material - 2024-T4 , 1/4-28-Thread , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

FUTEK LCF555 High Capacity Pancake Load Cell With Tension Base 썸네일

FUTEK LCF555 High Capacity Pancake Load Cell With Tension Base

LCF555 , 100000 lb , Low Profile Universal Pancake With Tension Base , RoHS Compliant, 4 mV/V , Material - 17-4 PH S.S. , 1 3/4-12-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK LCF550 High Capacity Pancake Load Cell 썸네일

FUTEK LCF550 High Capacity Pancake Load Cell

Model LCF550 is a Pancake Load Cell designed for high capacity compression and tension applications. Built from a robust 17-4 Stainless Steel in a 100,000 lbs capacity, the LCF550 Pancake Load Cell can be used in most grueling environments. The low profile design also features 16 bolt down holes allowing easy mounting. You will also find options for Fatigue Rating, and Amplified Version readily available.
