FUTEK QLA149 Female Thread Rod End Load Cell

QLA149 , 500 lb , Female Thread Rod End Load Cell , OEM , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable

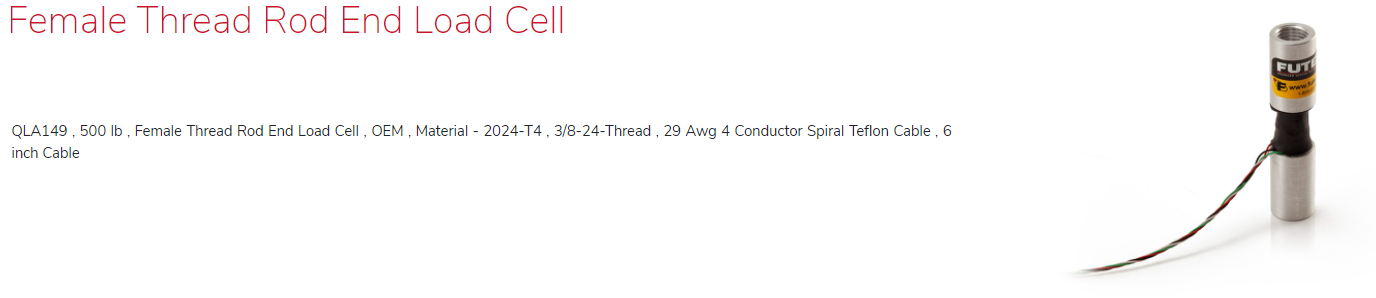

FUTEK QLA149 Female Thread Rod End Load Cell 이미지

QLA149 , 500 lb , Female Thread Rod End Load Cell , OEM , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA149 , 500 lb , Female Thread Rod End Load Cell , OEM , Material - 2024-T4 , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Cable

QSH00132

Description

Female Thread Rod End Load Cell

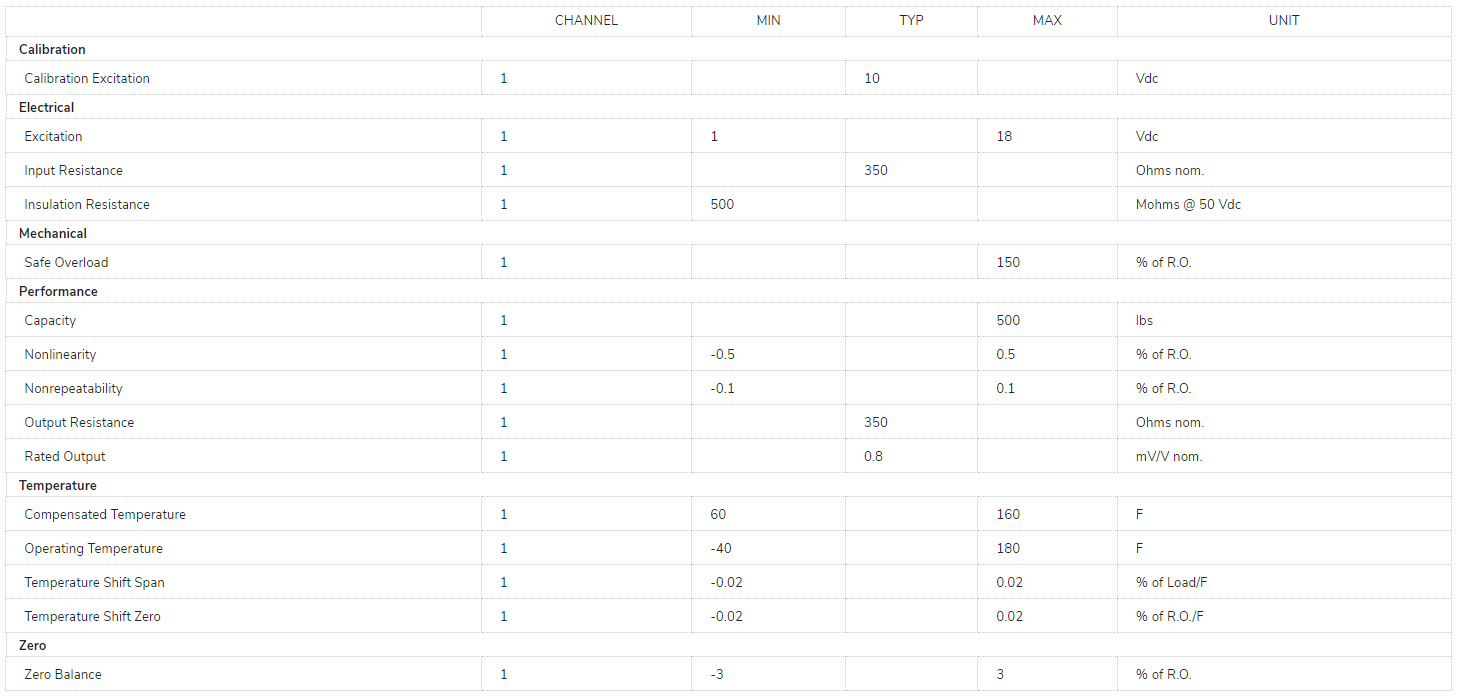

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
