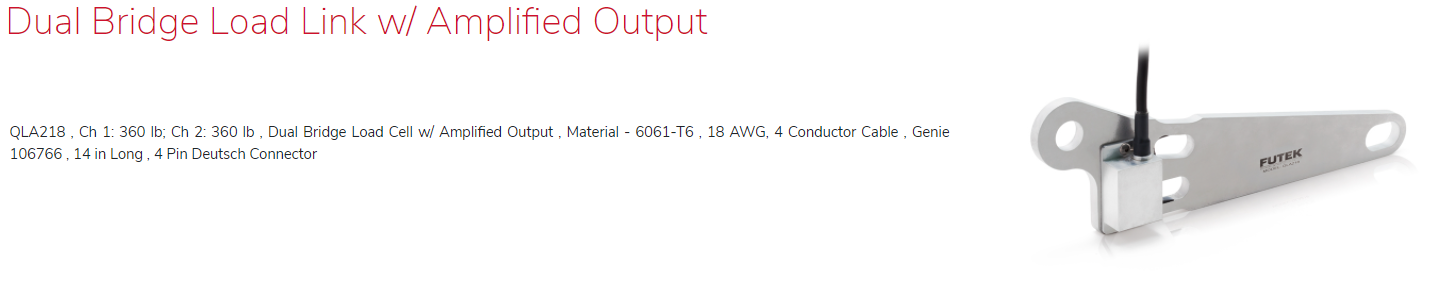

FUTEK QLA218 Dual Bridge Load Link w/ Amplified Output

QLA218 , Ch 1: 360 lb; Ch 2: 360 lb , Dual Bridge Load Cell w/ Amplified Output , Material - 6061-T6 , 18 AWG, 4 Conductor Cable , Genie 106766 , 14 in Long , 4 Pin Deutsch Connector

FUTEK QLA218 Dual Bridge Load Link w/ Amplified Output 이미지

QLA218 , Ch 1: 360 lb; Ch 2: 360 lb , Dual Bridge Load Cell w/ Amplified Output , Material - 6061-T6 , 18 AWG, 4 Conductor Cable , Genie 106766 , 14 in Long , 4 Pin Deutsch Connector

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA218 , Ch 1: 360 lb; Ch 2: 360 lb , Dual Bridge Load Cell w/ Amplified Output , Material - 6061-T6 , 18 AWG, 4 Conductor Cable , Genie 106766 , 14 in Long , 4 Pin Deutsch Connector

QSH00577

Description

Dual Bridge Load Link w/ Amplified Output

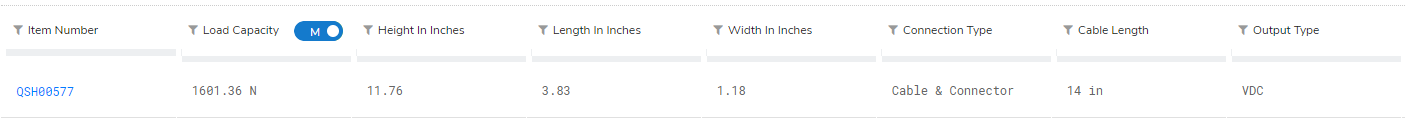

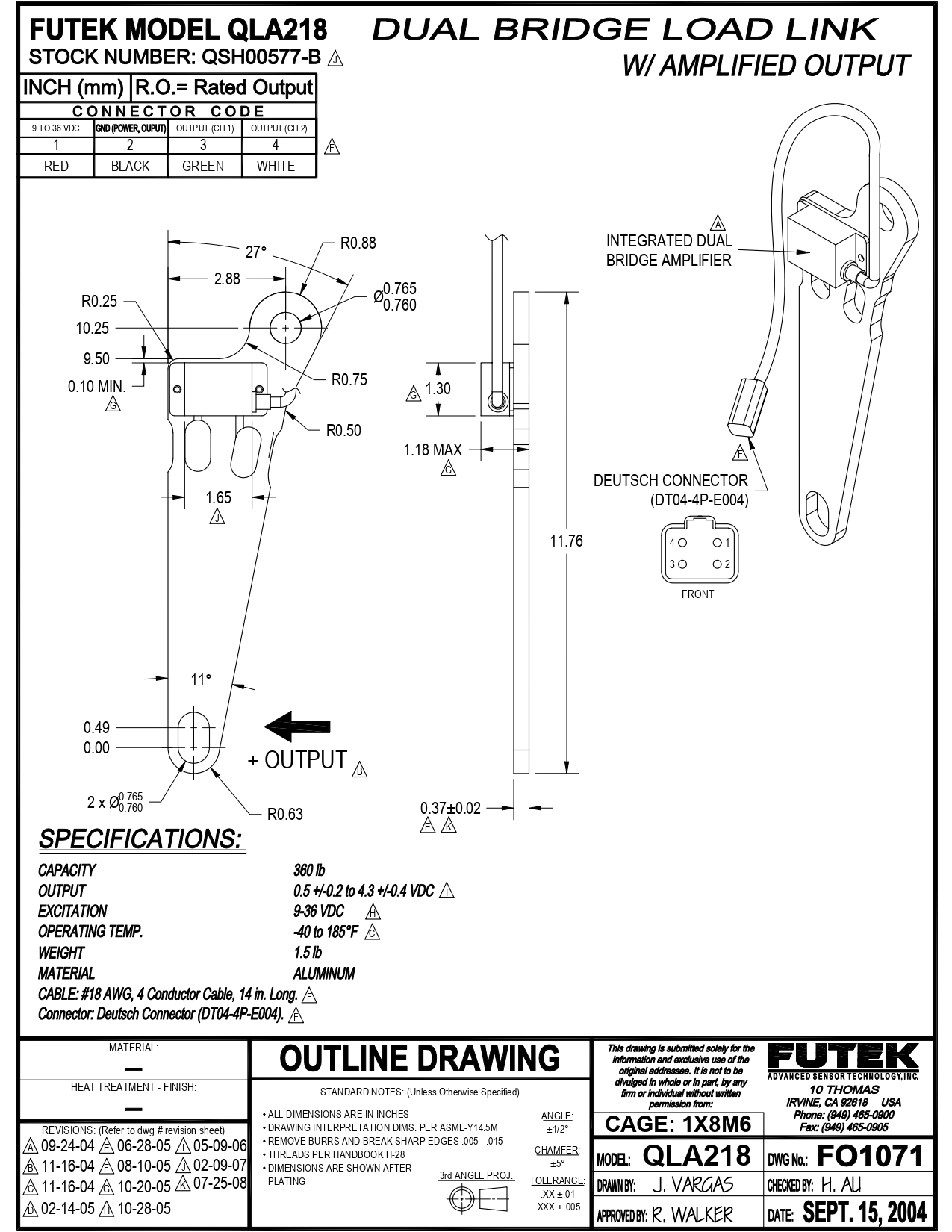

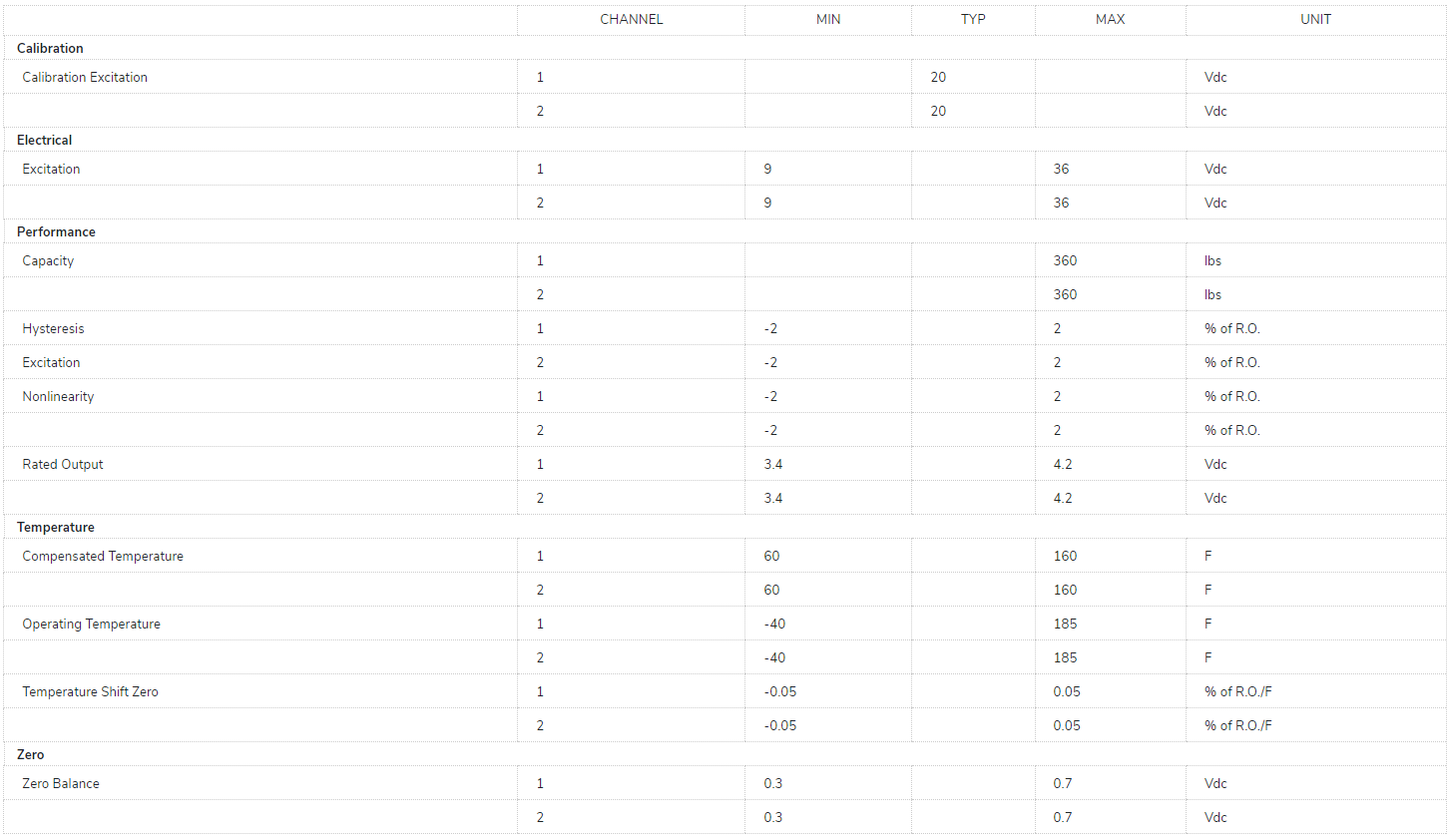

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
