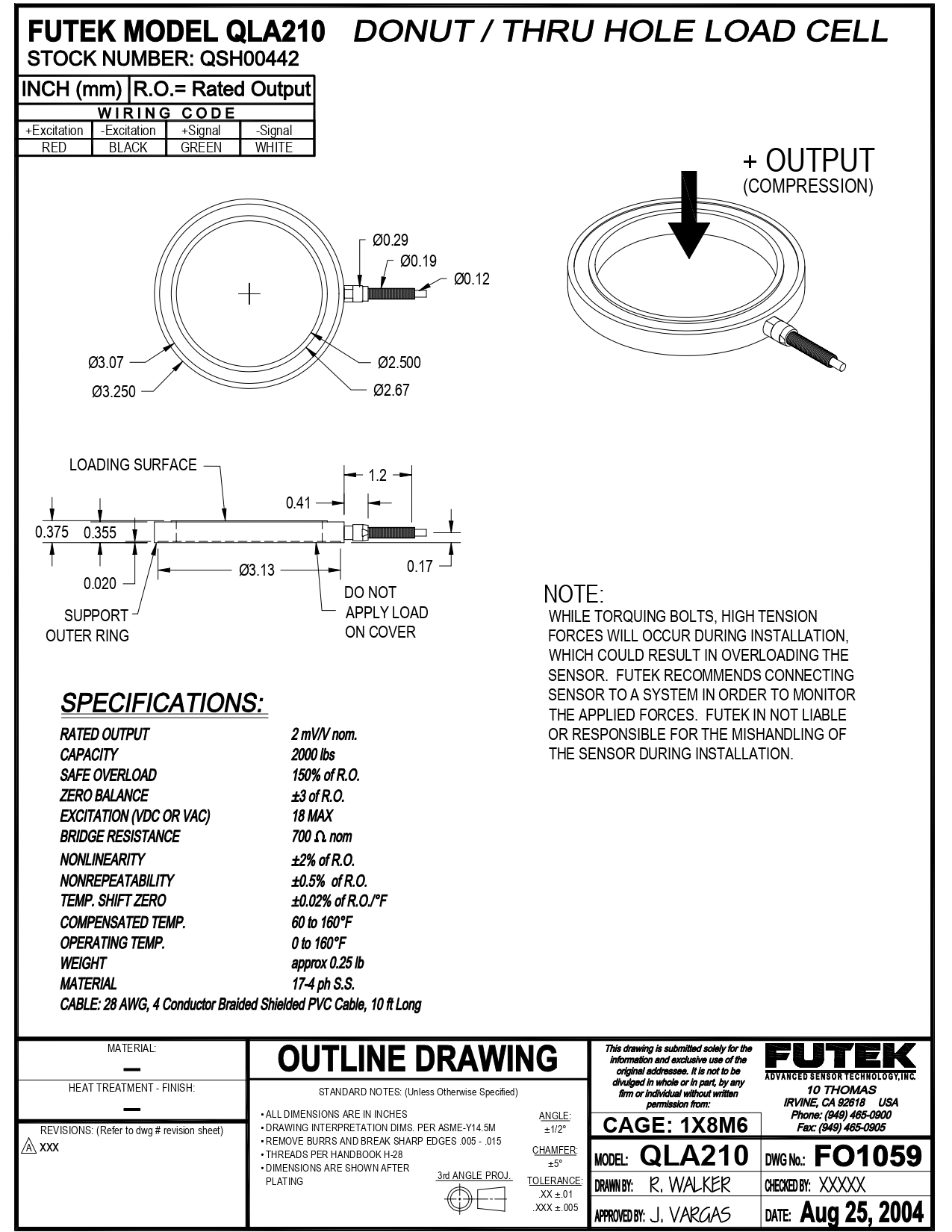

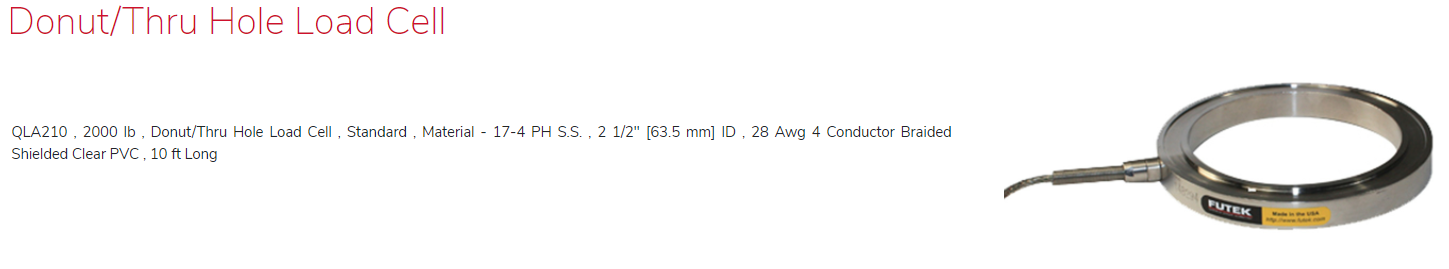

FUTEK QLA210 Donut/Thru Hole Load Cell

QLA210 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2 1/2" [63.5 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

FUTEK QLA210 Donut/Thru Hole Load Cell 이미지

QLA210 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2 1/2" [63.5 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA210 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2 1/2" [63.5 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

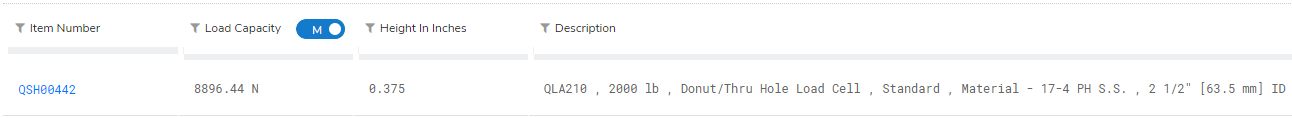

QSH00442

Description

Donut / Thru Hole Load Cell

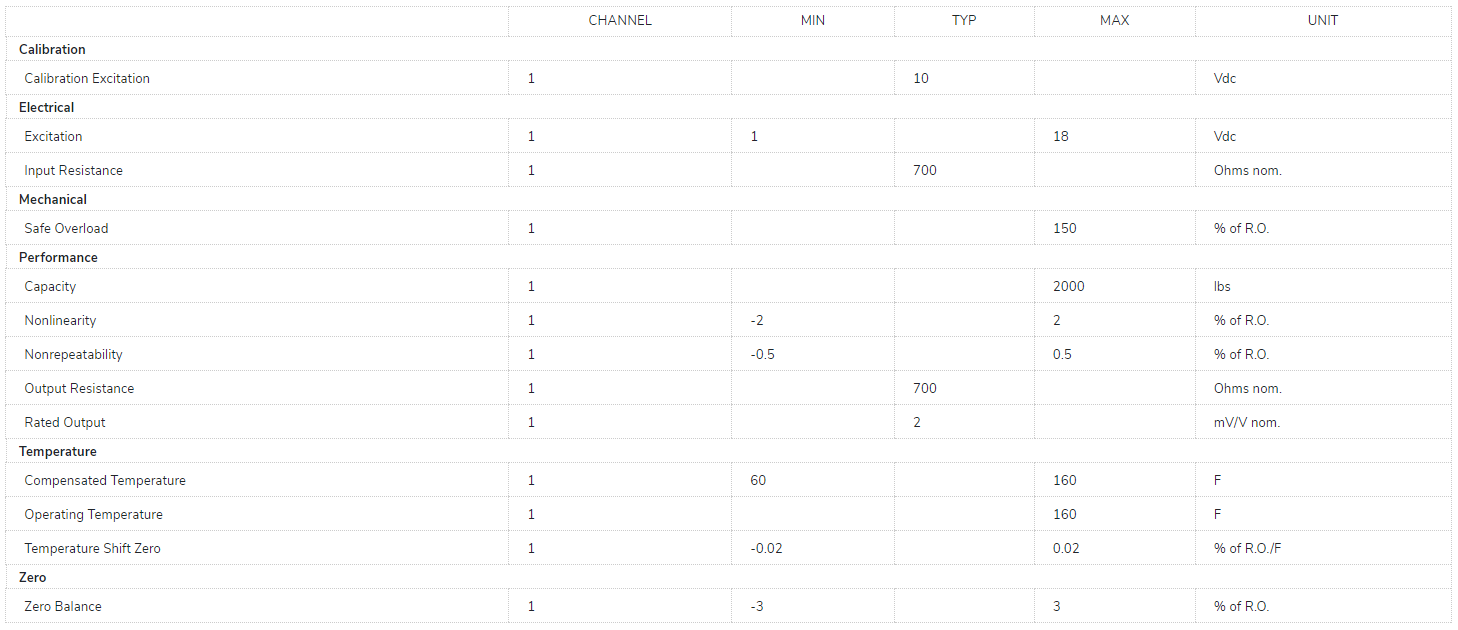

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
