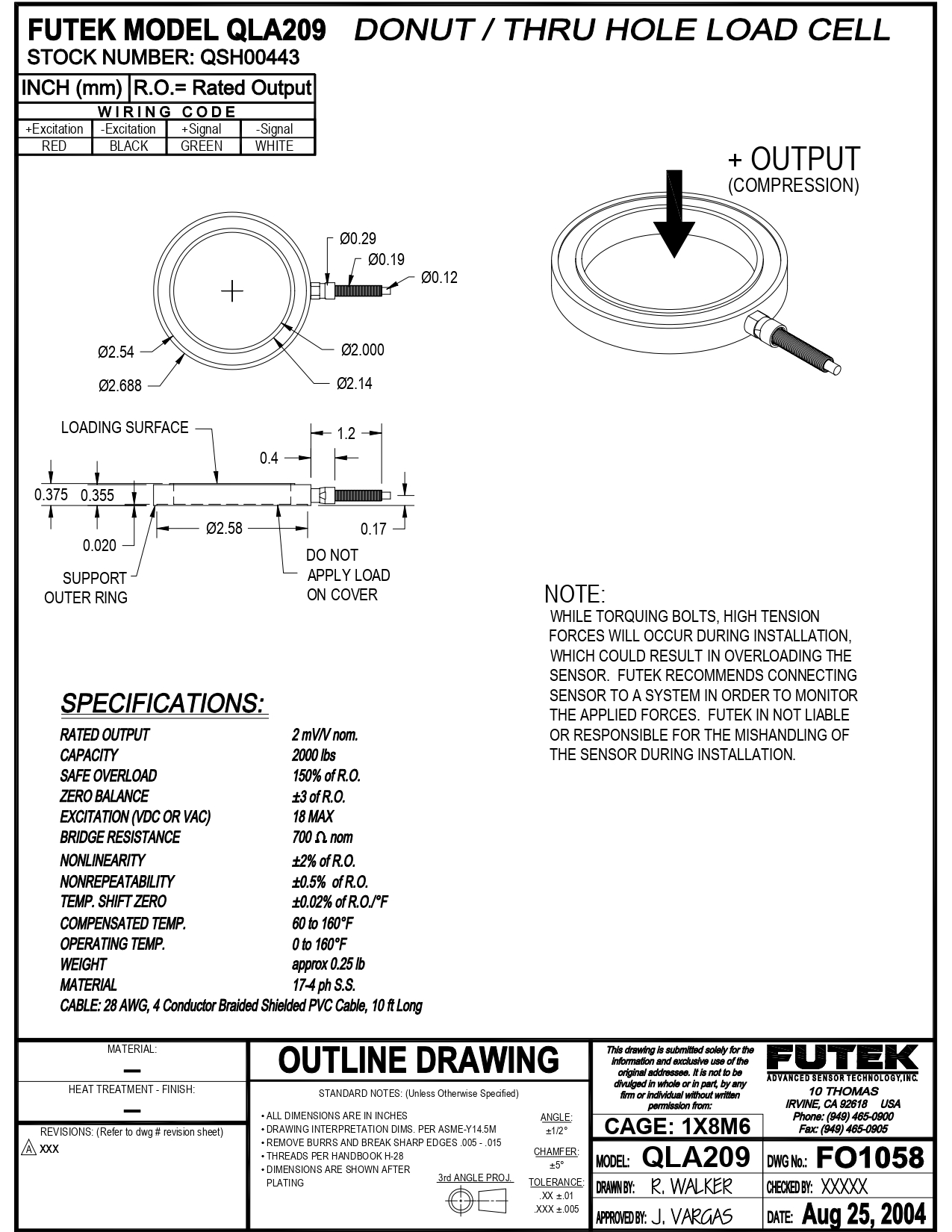

FUTEK QLA209 Donut/Thru Hole Load Cell

QLA209 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2.0" [50.8 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

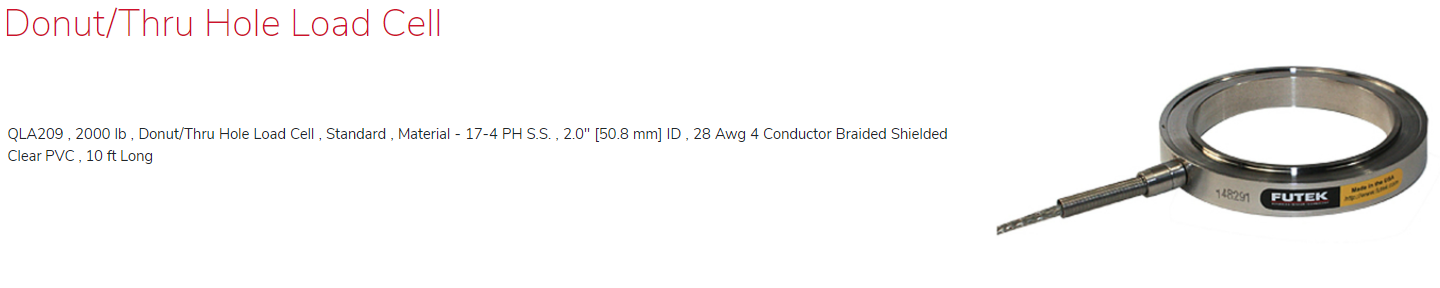

FUTEK QLA209 Donut/Thru Hole Load Cell 이미지

QLA209 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2.0" [50.8 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA209 , 2000 lb , Donut/Thru Hole Load Cell , Standard , Material - 17-4 PH S.S. , 2.0" [50.8 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

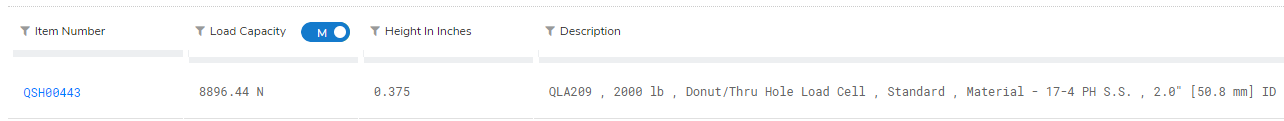

QSH00443

Description

Donut / Thru Hole Load Cell

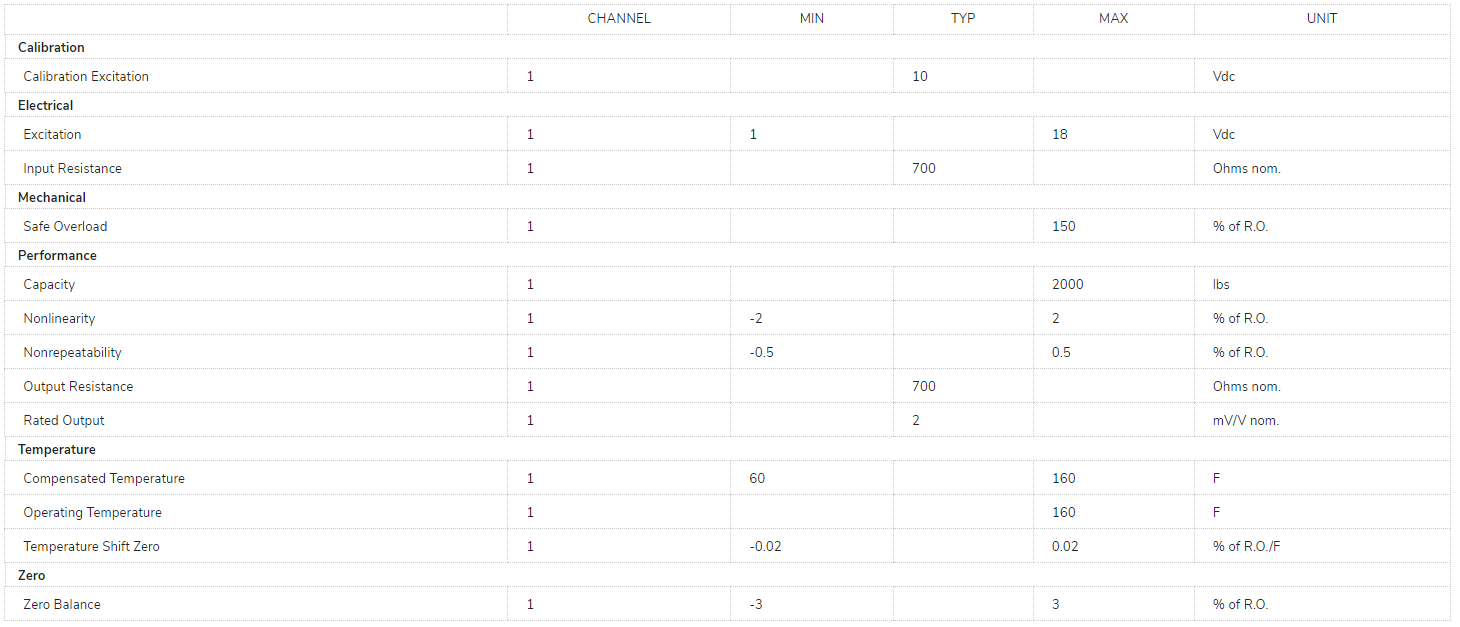

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
