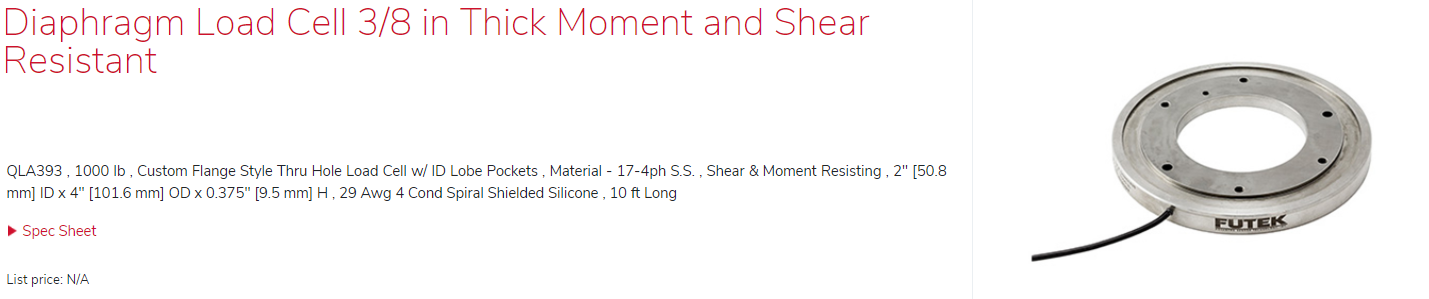

FUTEK QLA393 Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

QLA393 , 1000 lb , Custom Flange Style Thru Hole Load Cell w/ ID Lobe Pockets , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.375" [9.5 mm] H , 29 Awg 4 Cond Spiral Shielded Silicone , 10 ft Long

FUTEK QLA393 Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant 이미지

QLA393 , 1000 lb , Custom Flange Style Thru Hole Load Cell w/ ID Lobe Pockets , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.375" [9.5 mm] H , 29 Awg 4 Cond Spiral Shielded Silicone , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

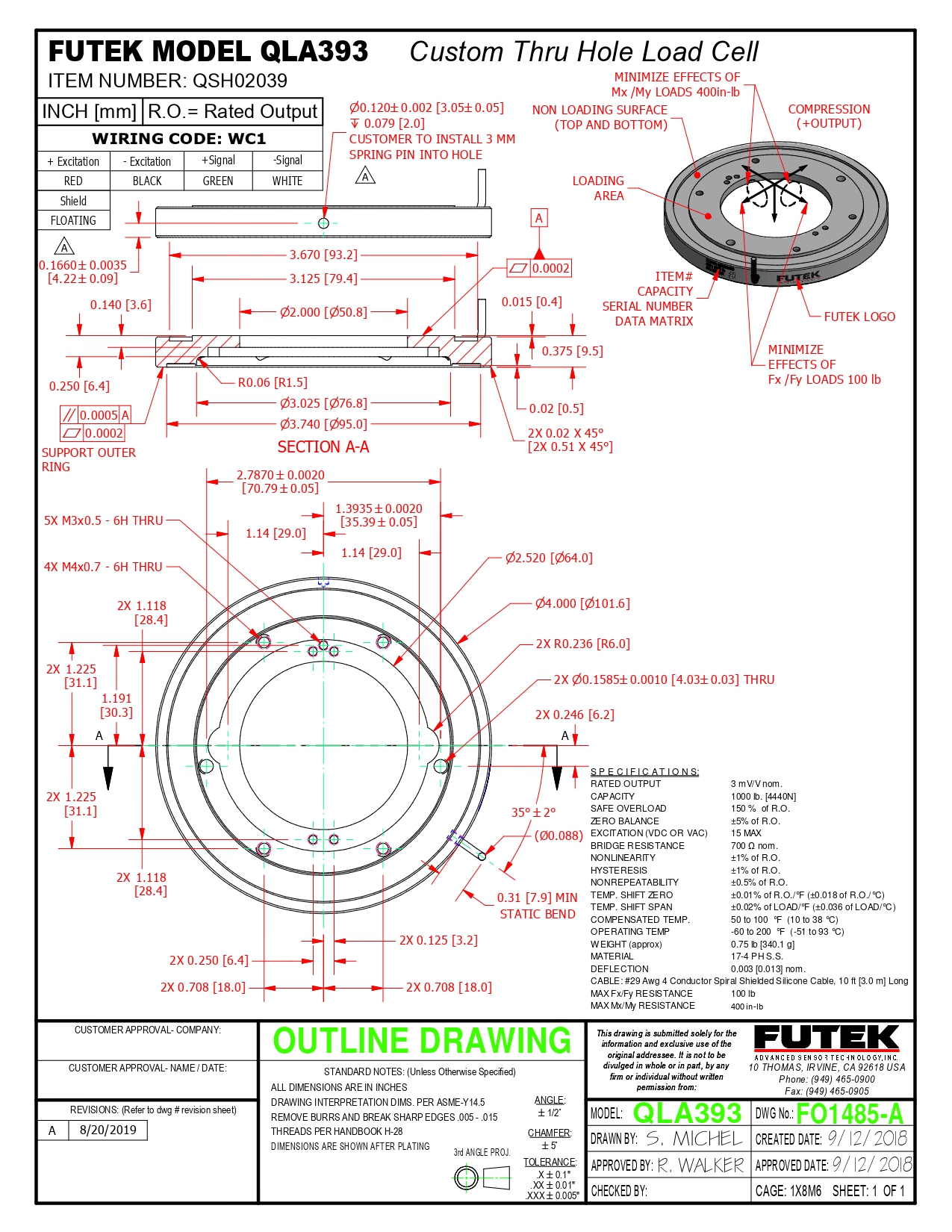

QLA393 , 1000 lb , Custom Flange Style Thru Hole Load Cell w/ ID Lobe Pockets , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.375" [9.5 mm] H , 29 Awg 4 Cond Spiral Shielded Silicone , 10 ft Long

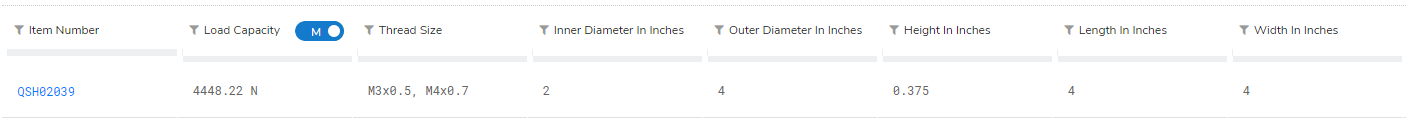

QSH02039

Description

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

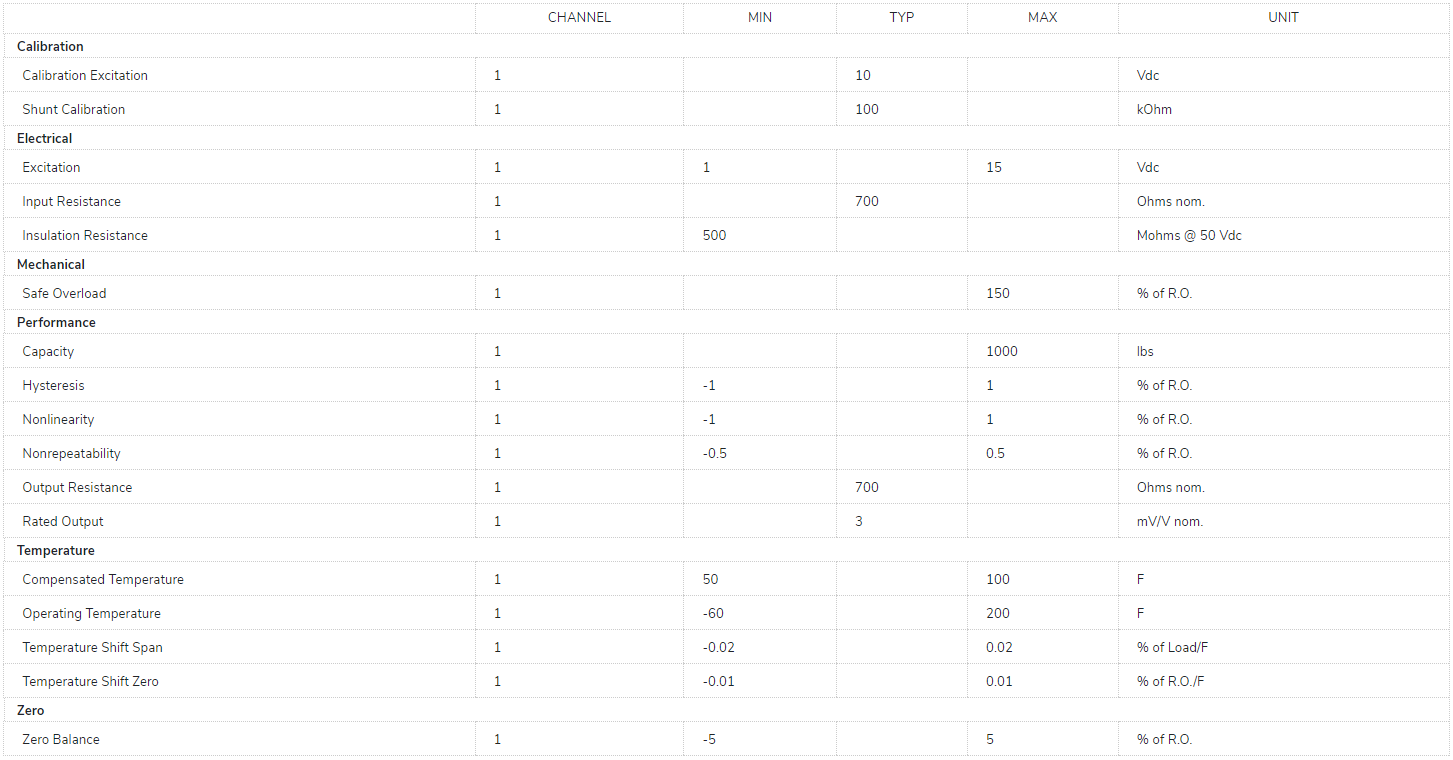

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
