FUTEK QLA413 Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

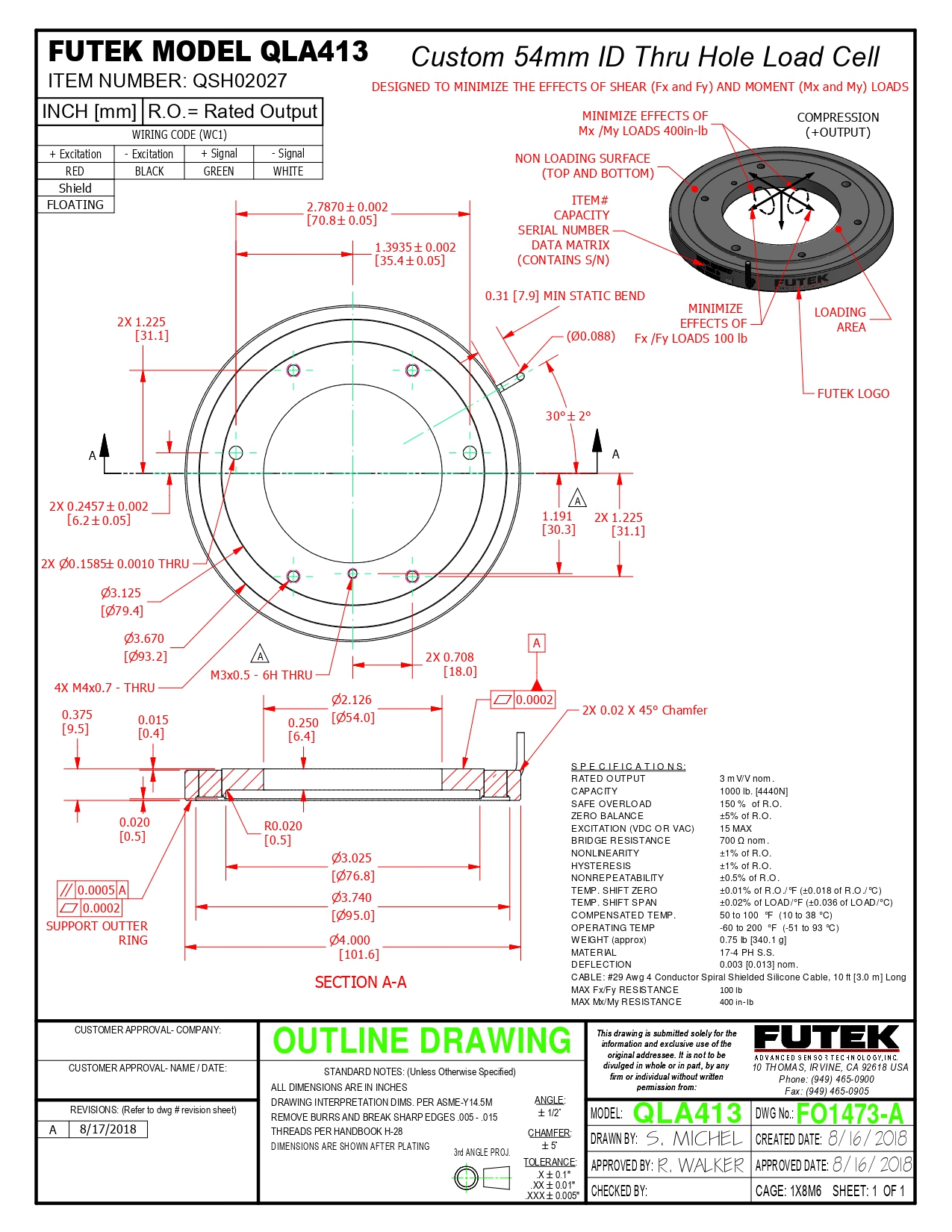

QLA413, 1000 lb , Custom Flange Style Thru Hole Load Cell, Material - 17-4ph S.S. ,Shear & Moment Resisting , 2.13" [54 mm] ID x 4" [101.6 mm] OD x 0.38" [9.5 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

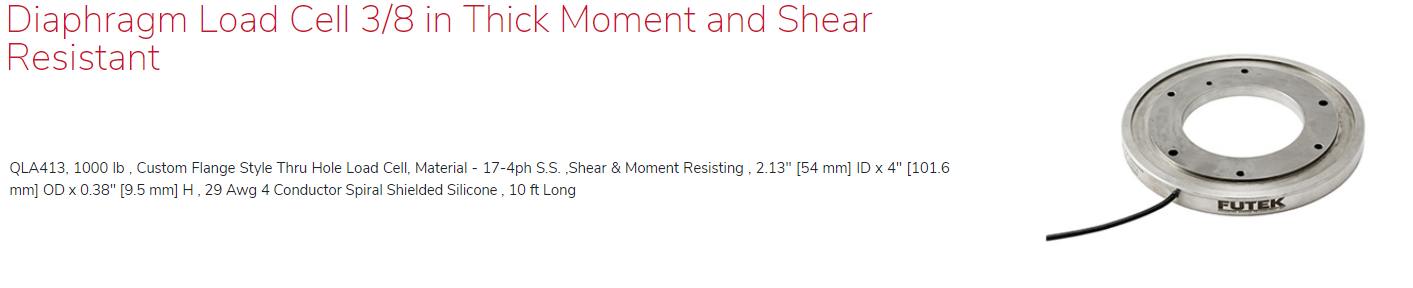

FUTEK QLA413 Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant 이미지

QLA413, 1000 lb , Custom Flange Style Thru Hole Load Cell, Material - 17-4ph S.S. ,Shear & Moment Resisting , 2.13" [54 mm] ID x 4" [101.6 mm] OD x 0.38" [9.5 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA413, 1000 lb , Custom Flange Style Thru Hole Load Cell, Material - 17-4ph S.S. ,Shear & Moment Resisting , 2.13" [54 mm] ID x 4" [101.6 mm] OD x 0.38" [9.5 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

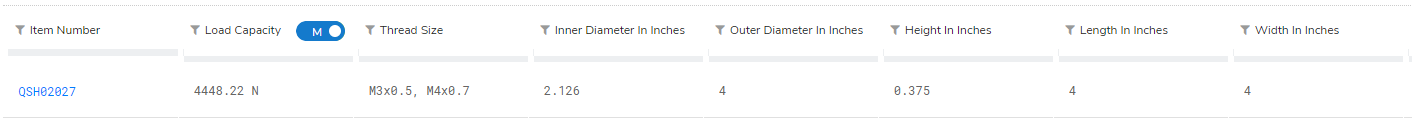

QSH02027

Description

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

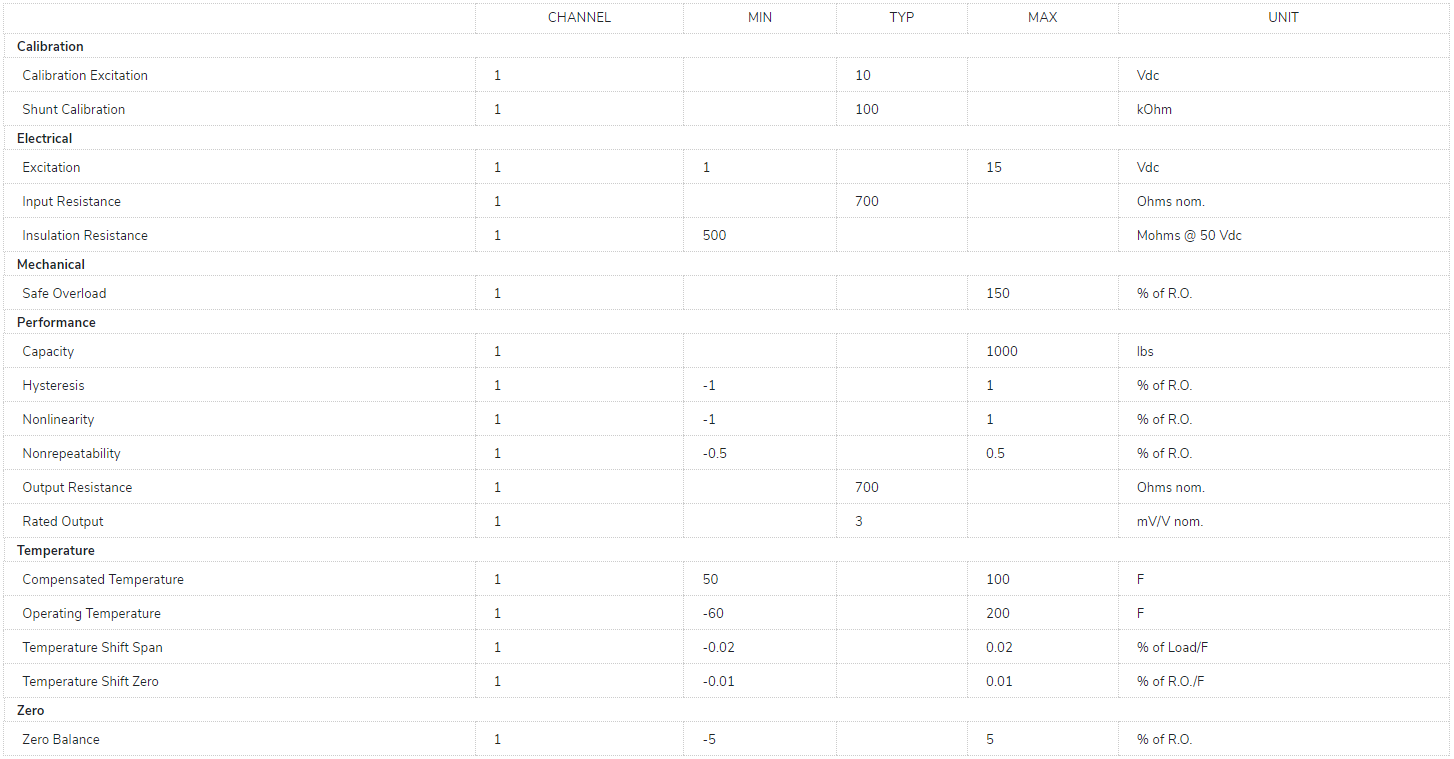

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
