홈/종합산업장비/센서/로드셀/FUTEK QLA132 Custom Wire Tension Load Cell

FUTEK QLA132 Custom Wire Tension Load Cell

QLA132 , 20 N , Custom Wire Tension/Roller Tension Load Cell , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 1 ft Long

FUTEK QLA132 Custom Wire Tension Load Cell 이미지

QLA132 , 20 N , Custom Wire Tension/Roller Tension Load Cell , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 1 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA132 , 20 N , Custom Wire Tension/Roller Tension Load Cell , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 1 ft Long

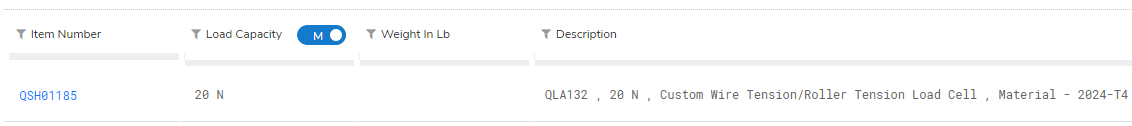

QSH01185

Description

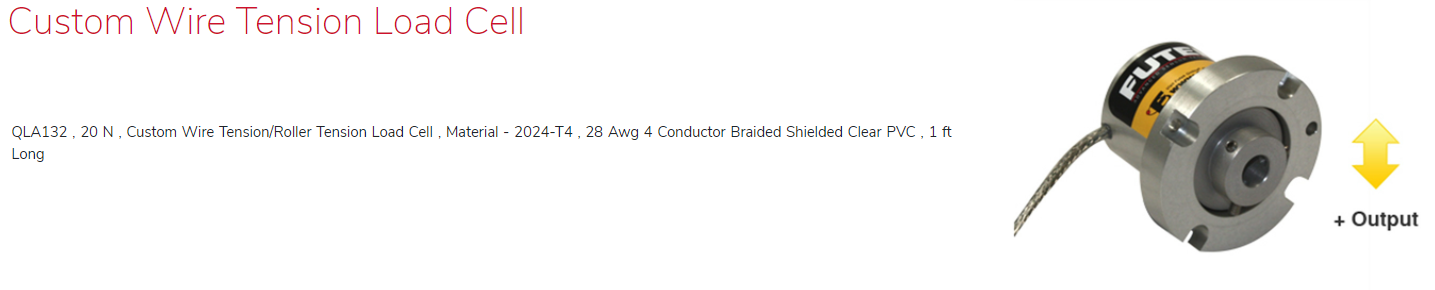

Custom Wire Tension Load Cell

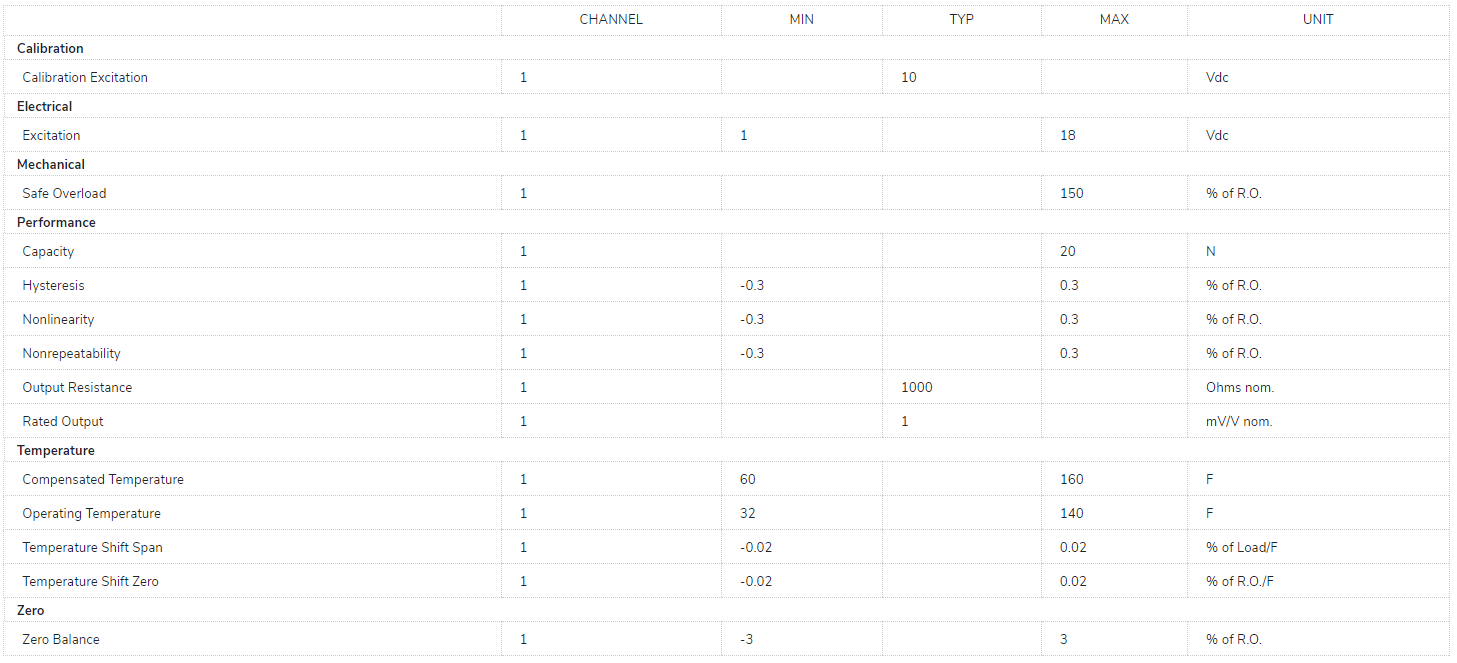

Specifications
