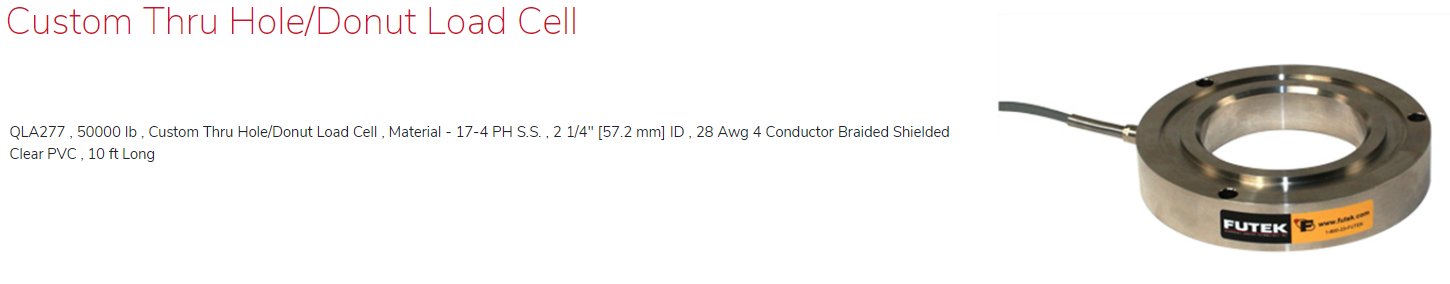

FUTEK QLA277 Custom Thru Hole/Donut Load Cell

QLA277 , 50000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2 1/4" [57.2 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

FUTEK QLA277 Custom Thru Hole/Donut Load Cell 이미지

QLA277 , 50000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2 1/4" [57.2 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA277 , 50000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2 1/4" [57.2 mm] ID , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

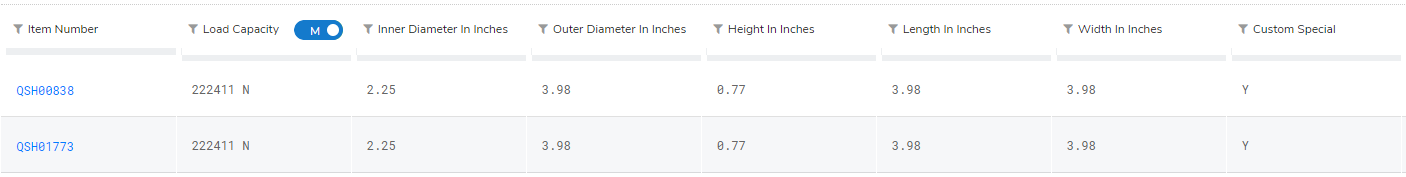

QSH00838

QSH01773

Description

Custom Thru Hole / Donut Load Cell

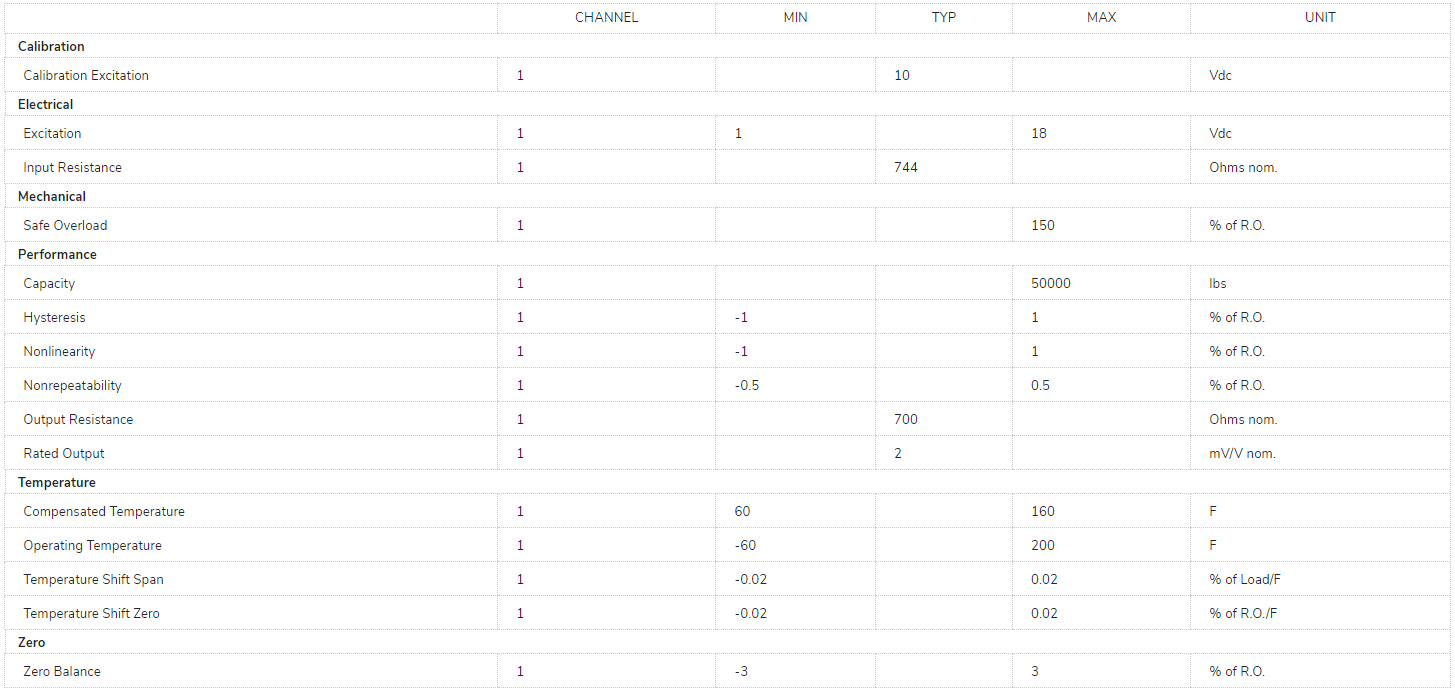

Specifications
