FUTEK QLA261 Custom Thru Hole/Donut Load Cell

QLA261 , 56000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 4.74 " [120.4 mm] ID , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

FUTEK QLA261 Custom Thru Hole/Donut Load Cell 이미지

QLA261 , 56000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 4.74 " [120.4 mm] ID , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA261 , 56000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 4.74 " [120.4 mm] ID , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

QSH00723

Description

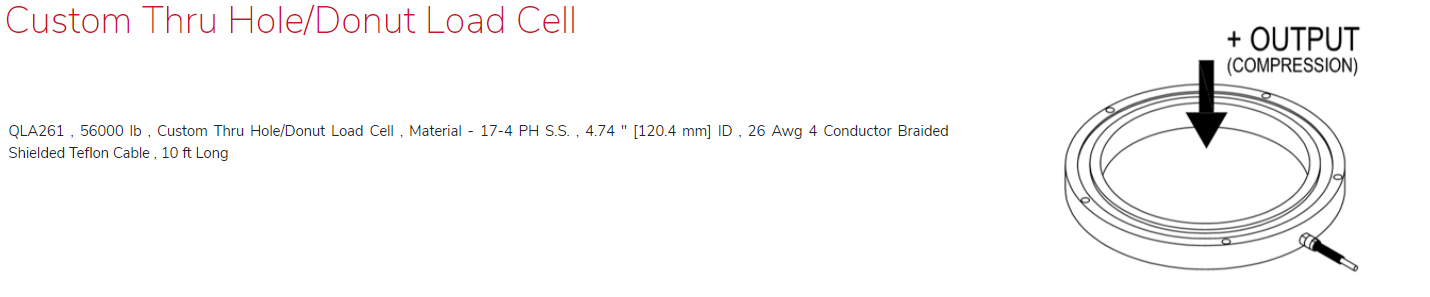

Custom Thru Hole / Donut Load Cell

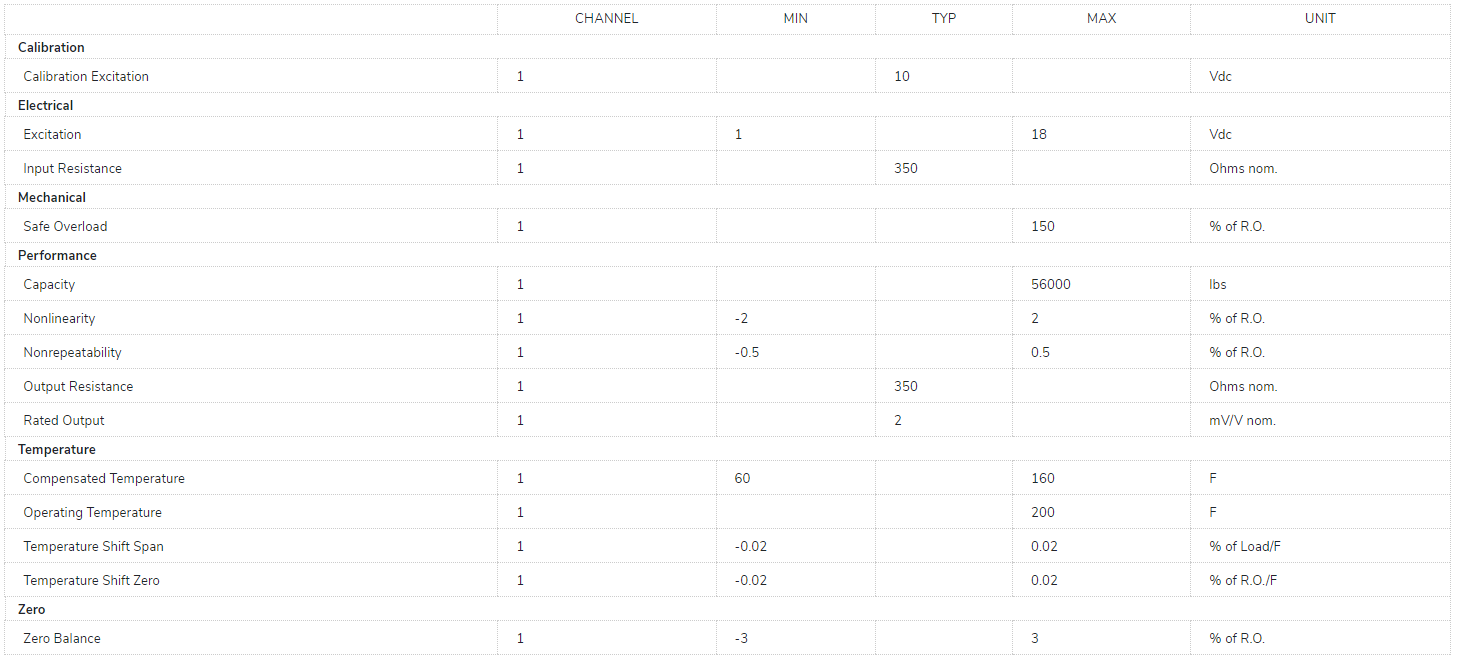

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
