FUTEK QLA254 Custom Thru Hole/Donut Load Cell

QLA254 , 2000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 3.2" [81.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long

FUTEK QLA254 Custom Thru Hole/Donut Load Cell 이미지

QLA254 , 2000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 3.2" [81.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA254 , 2000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 3.2" [81.3 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long

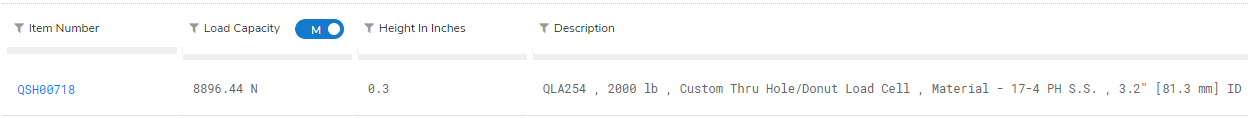

QSH00718

Description

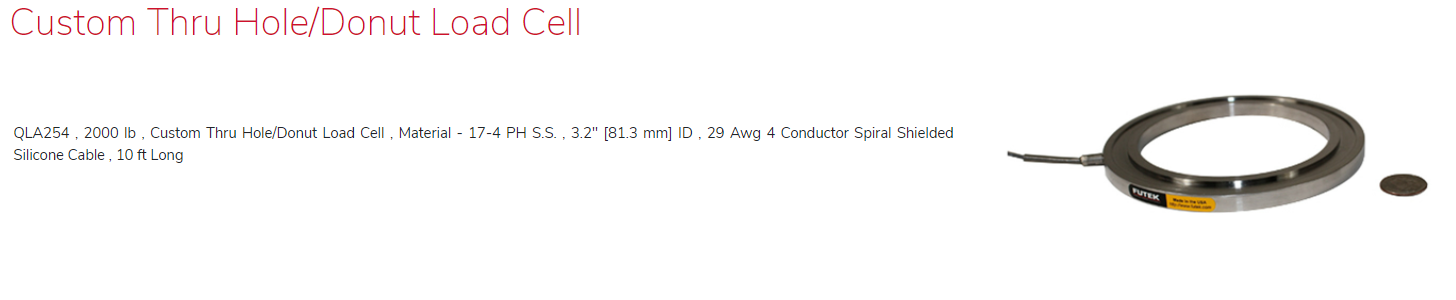

Custom Thru Hole / Donut Load Cell

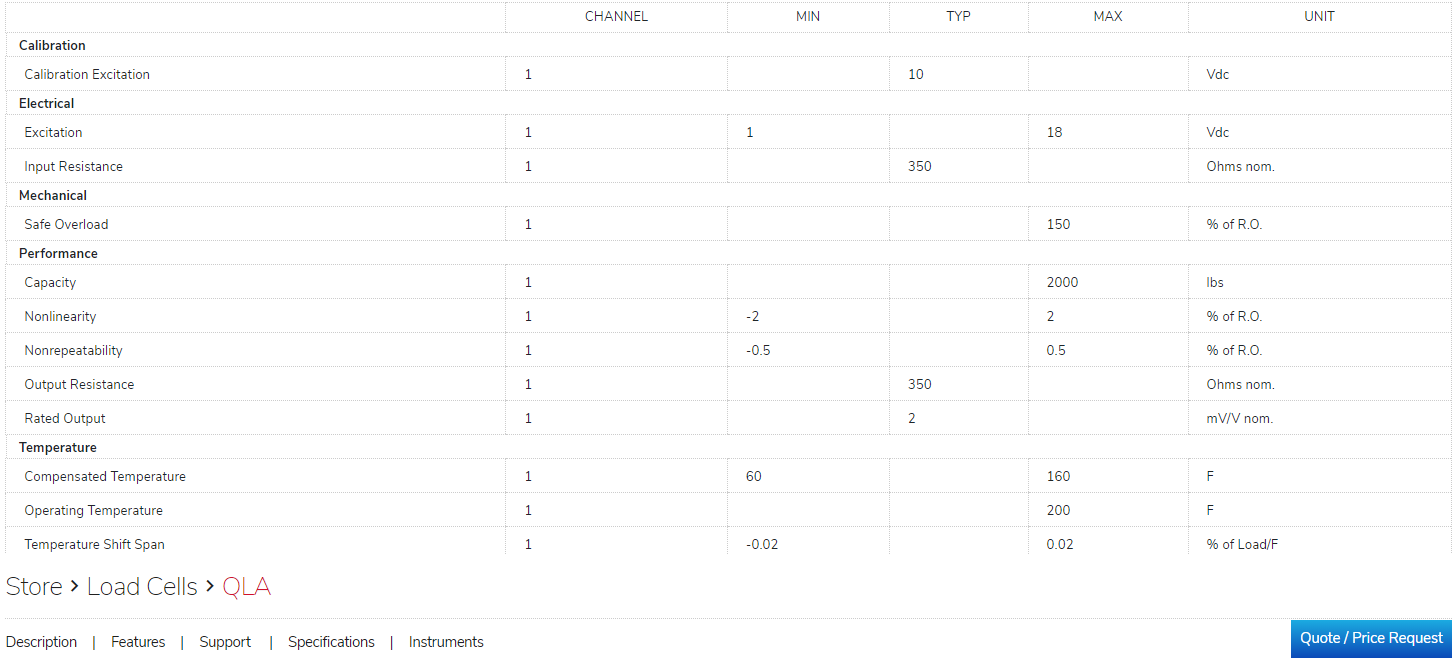

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
