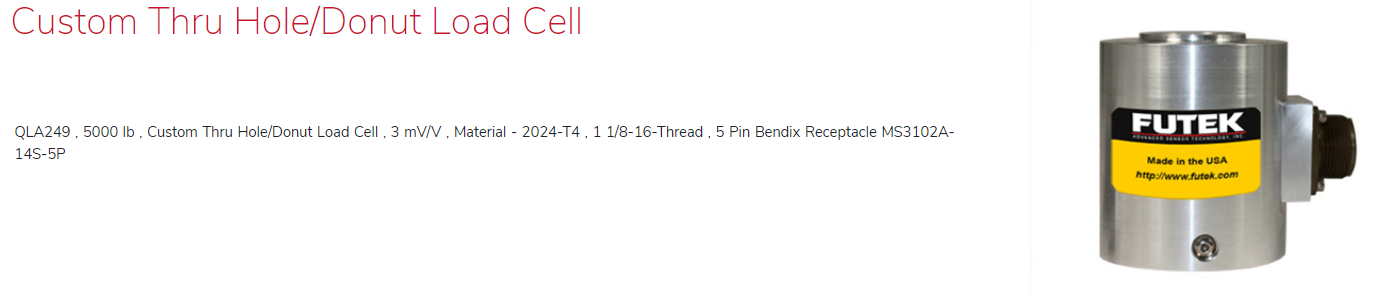

FUTEK QLA249 Custom Thru Hole/Donut Load Cell

QLA249 , 5000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P

FUTEK QLA249 Custom Thru Hole/Donut Load Cell 이미지

QLA249 , 5000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA249 , 5000 lb , Custom Thru Hole/Donut Load Cell , 3 mV/V , Material - 2024-T4 , 1 1/8-16-Thread , 5 Pin Bendix Receptacle MS3102A-14S-5P

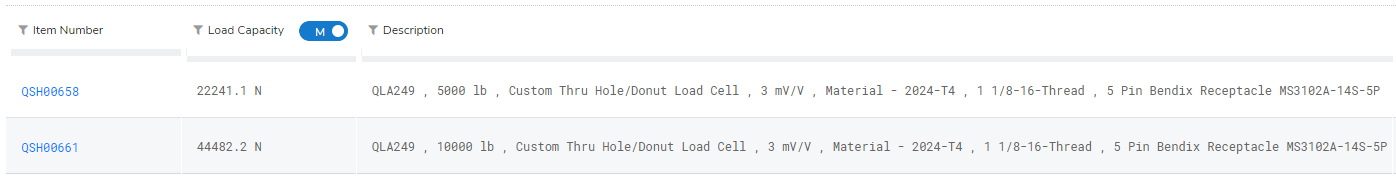

QSH00658

QSH00661

Description

Custom Thru Hole / Donut Load Cell

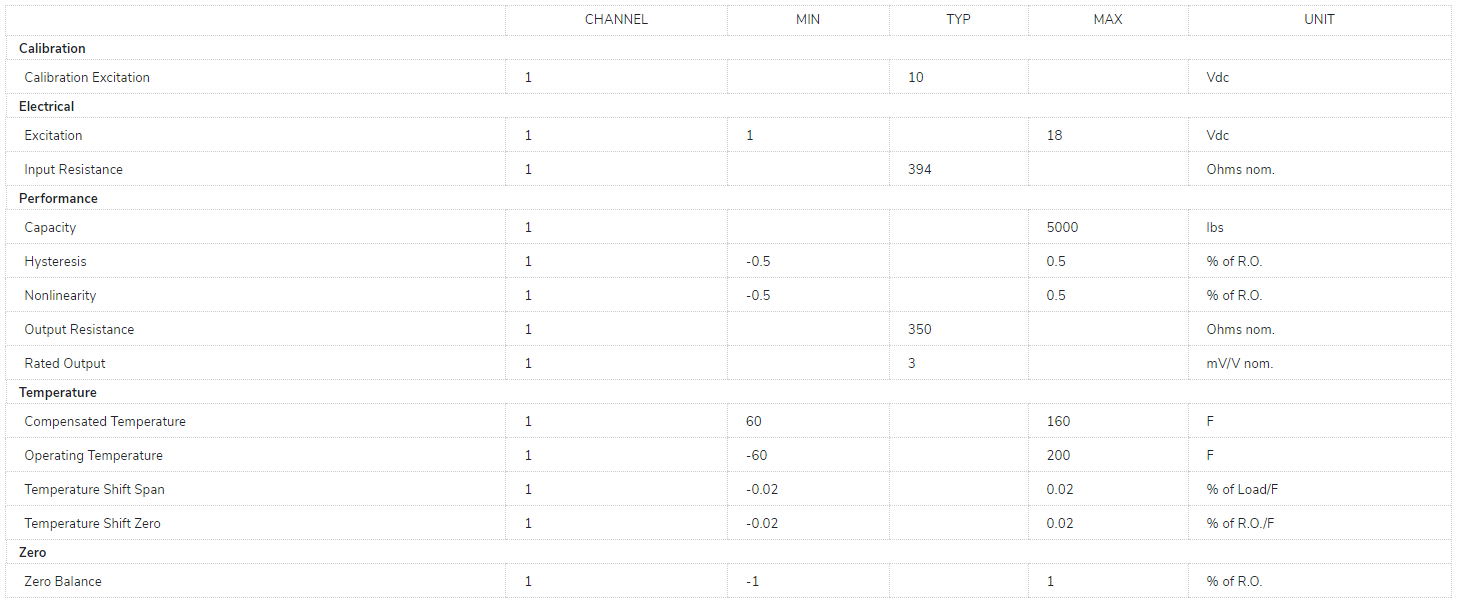

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
