industrial equipment

홈/종합산업장비/센서/로드셀/FUTEK QLA233 Custom Thru Hole/Donut Load Cell

FUTEK QLA233 Custom Thru Hole/Donut Load Cell

QLA233 , 20000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2.16 " [55 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

FUTEK QLA233 Custom Thru Hole/Donut Load Cell 이미지

QLA233 , 20000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2.16 " [55 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA233 , 20000 lb , Custom Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 2.16 " [55 mm] ID , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

QSH00553

Description

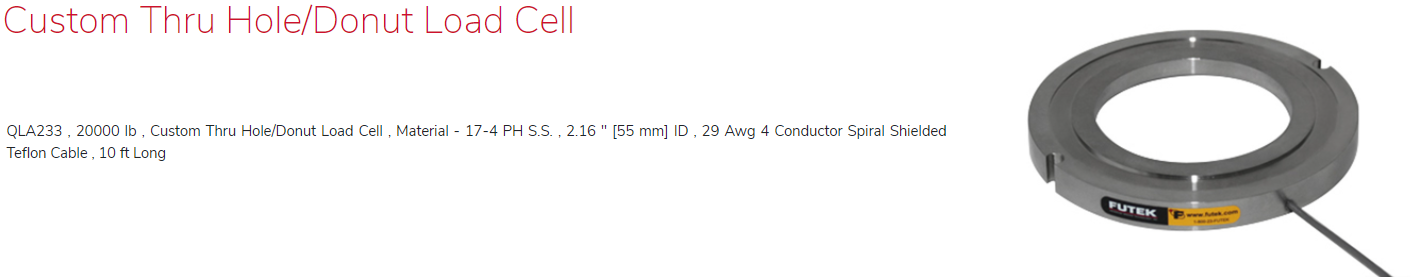

Custom Thru Hole / Donut Load Cell

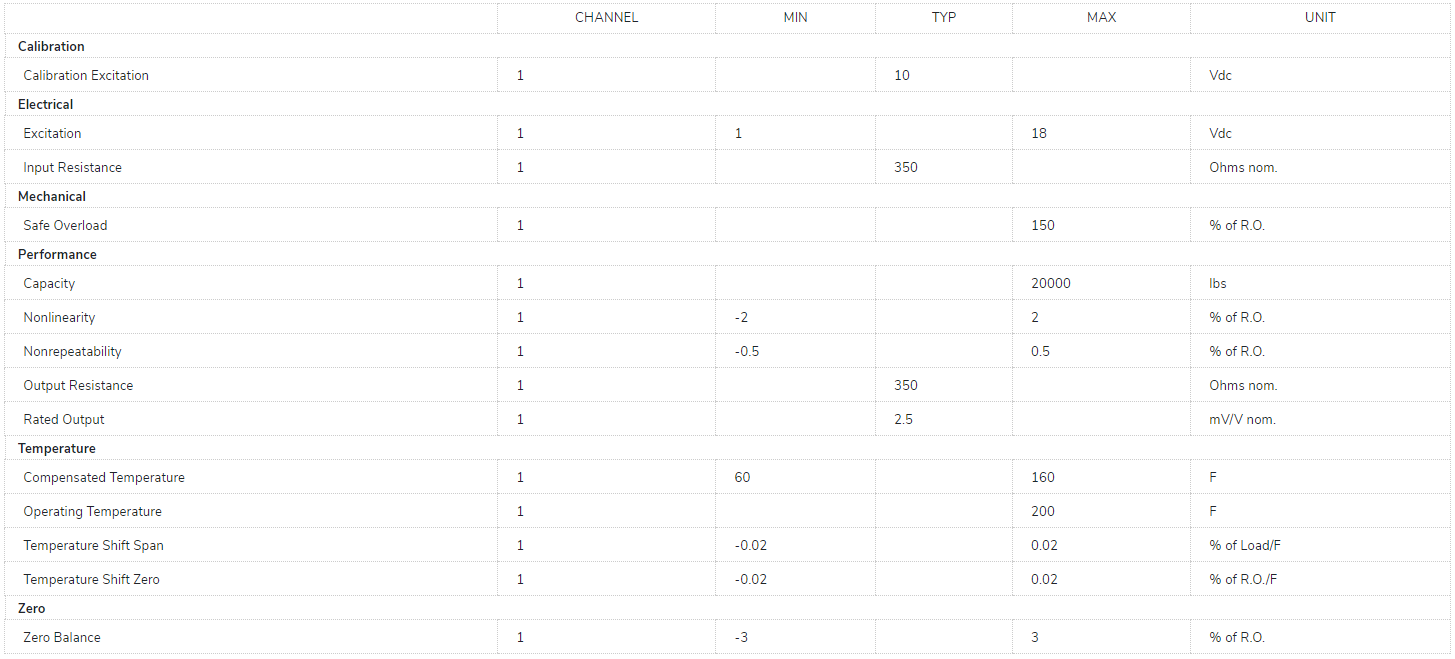

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
