홈/종합산업장비/센서/로드셀/FUTEK QLA255 Custom Thru Hole/Donut Load Cell (Compression and Tension)

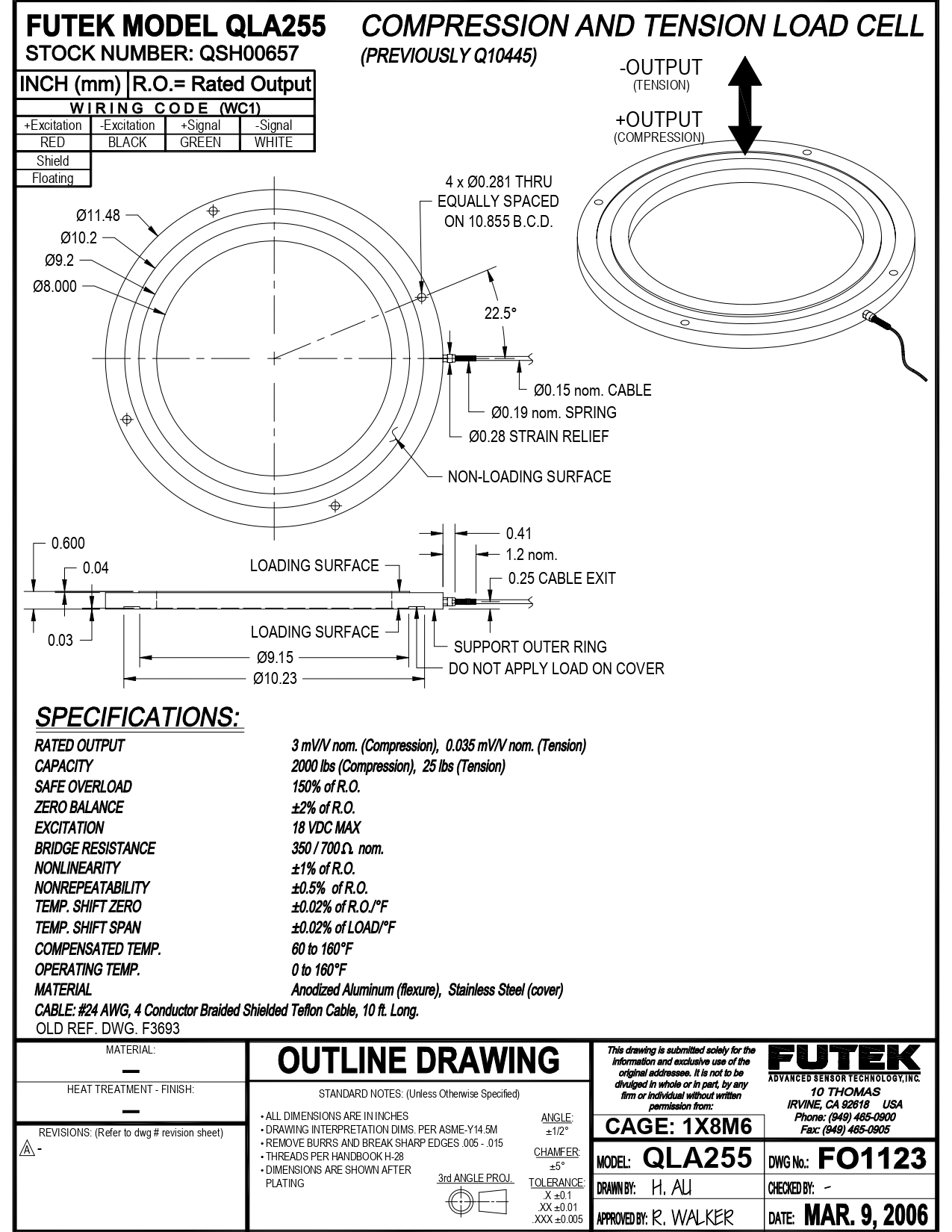

FUTEK QLA255 Custom Thru Hole/Donut Load Cell (Compression and Tension)

QLA255 , 2000 lb , Custom Thru Hole/Donut Load Cell (Compression and Tension) , 25 lb max load in Tension , Material - 2024-T4 , 8.0" [203 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

FUTEK QLA255 Custom Thru Hole/Donut Load Cell (Compression and Tension) 이미지

QLA255 , 2000 lb , Custom Thru Hole/Donut Load Cell (Compression and Tension) , 25 lb max load in Tension , Material - 2024-T4 , 8.0" [203 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA255 , 2000 lb , Custom Thru Hole/Donut Load Cell (Compression and Tension) , 25 lb max load in Tension , Material - 2024-T4 , 8.0" [203 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

QSH00749

Description

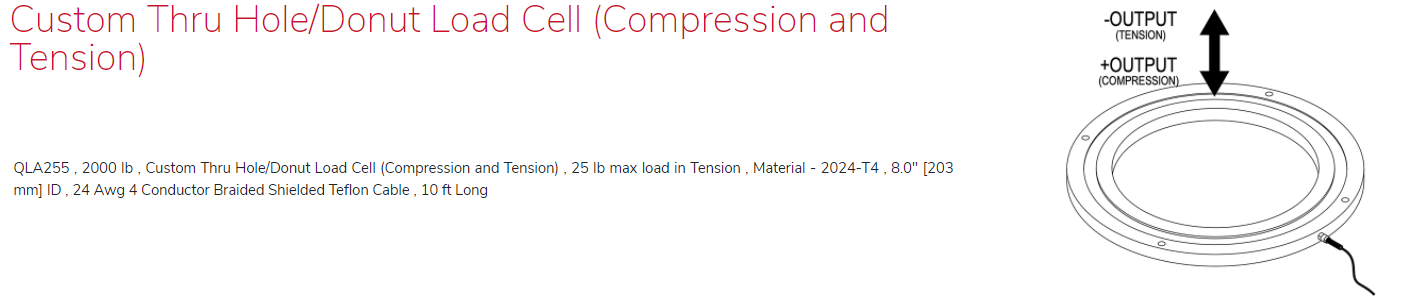

Custom Thru Hole / Donut Load Cell (Compression and Tension)

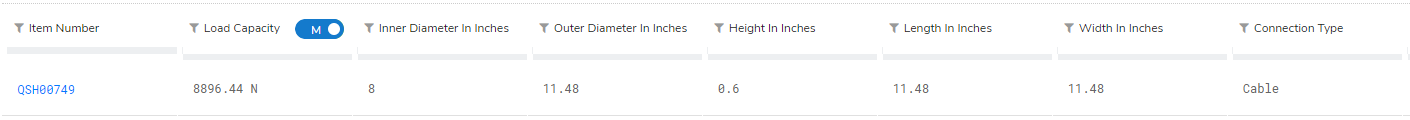

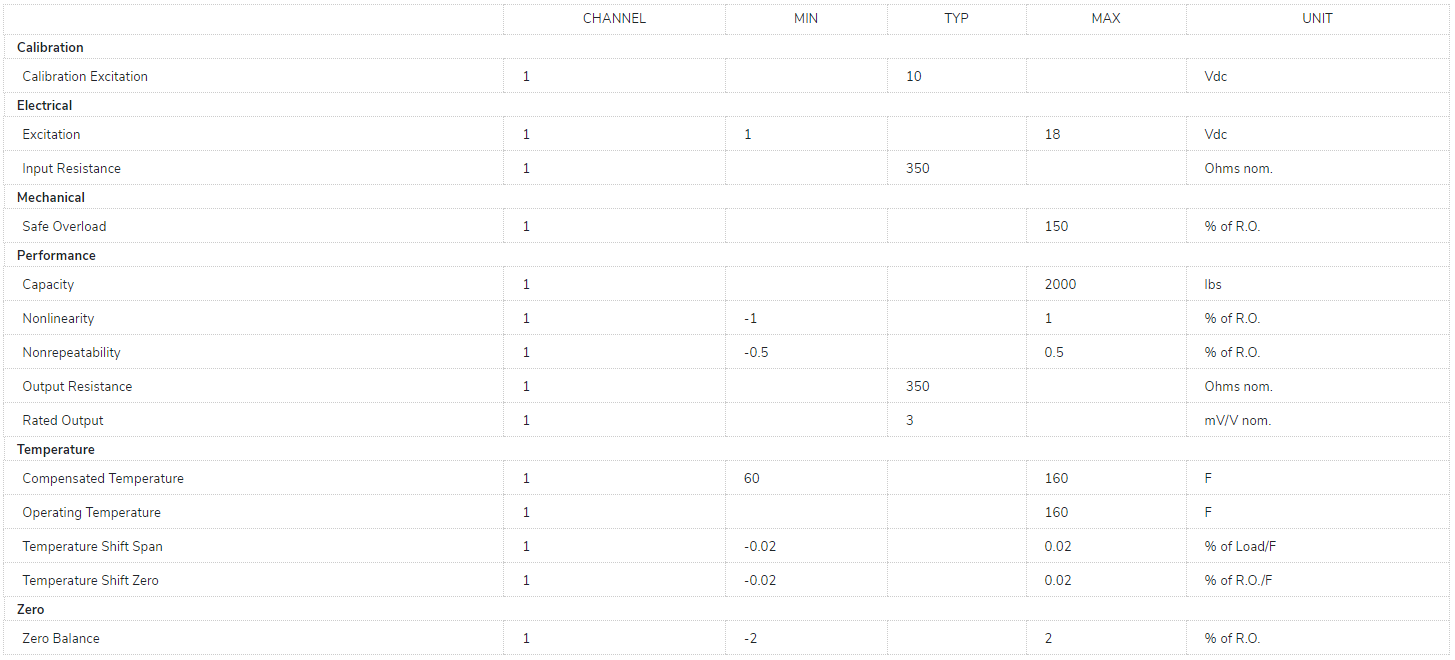

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
