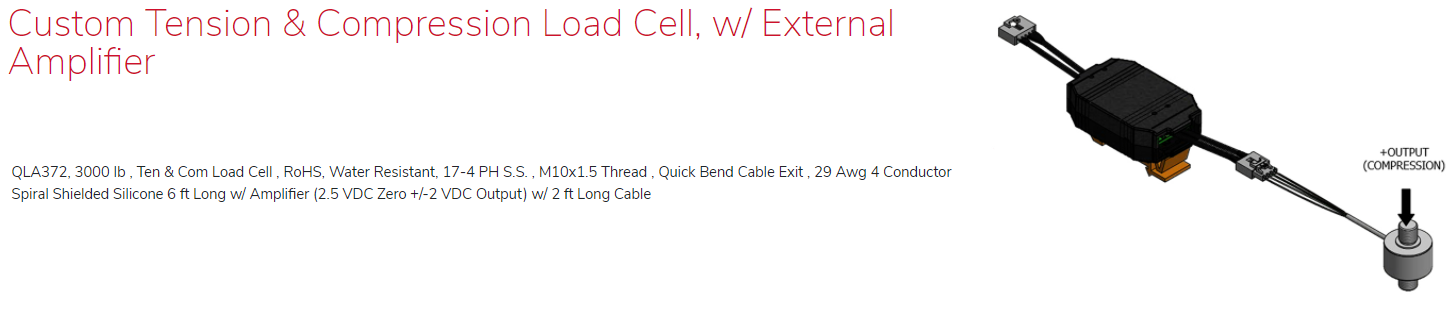

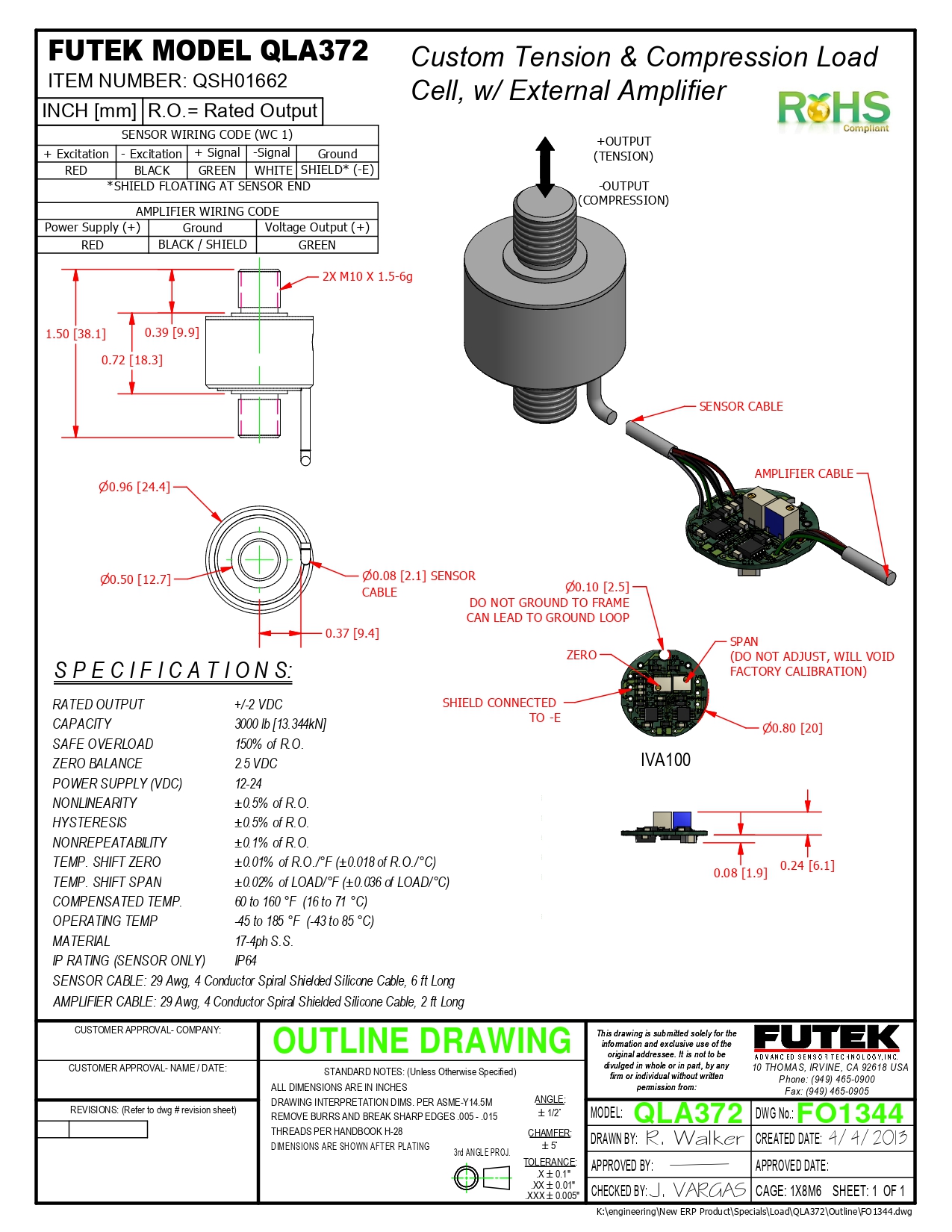

FUTEK QLA372 Custom Tension & Compression Load Cell, w/ External Amplifier

QLA372, 3000 lb , Ten & Com Load Cell , RoHS, Water Resistant, 17-4 PH S.S. , M10x1.5 Thread , Quick Bend Cable Exit , 29 Awg 4 Conductor Spiral Shielded Silicone 6 ft Long w/ Amplifier (2.5 VDC Zero +/-2 VDC Output) w/ 2 ft Long Cable

FUTEK QLA372 Custom Tension & Compression Load Cell, w/ External Amplifier 이미지

QLA372, 3000 lb , Ten & Com Load Cell , RoHS, Water Resistant, 17-4 PH S.S. , M10x1.5 Thread , Quick Bend Cable Exit , 29 Awg 4 Conductor Spiral Shielded Silicone 6 ft Long w/ Amplifier (2.5 VDC Zero +/-2 VDC Output) w/ 2 ft Long Cable

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA372, 3000 lb , Ten & Com Load Cell , RoHS, Water Resistant, 17-4 PH S.S. , M10x1.5 Thread , Quick Bend Cable Exit , 29 Awg 4 Conductor Spiral Shielded Silicone 6 ft Long w/ Amplifier (2.5 VDC Zero +/-2 VDC Output) w/ 2 ft Long Cable

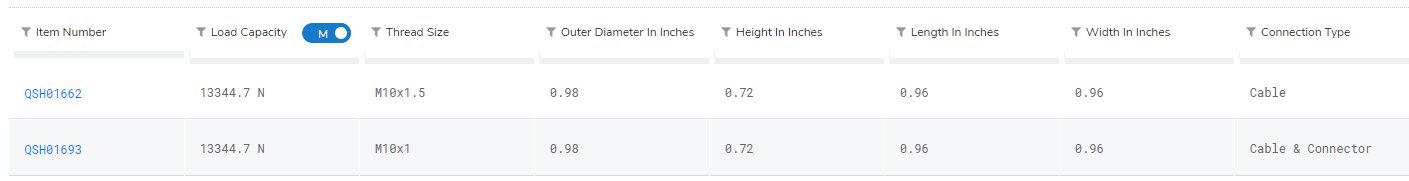

QSH01662

QSH01693

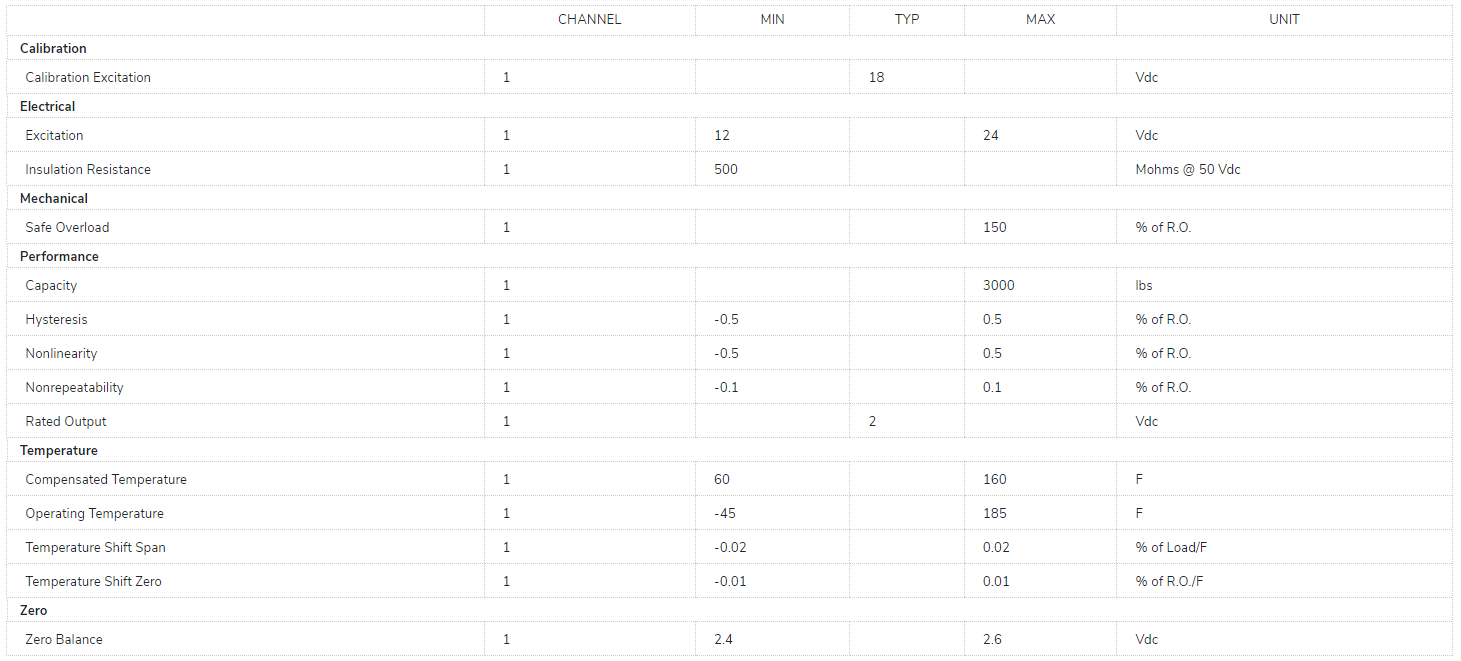

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
