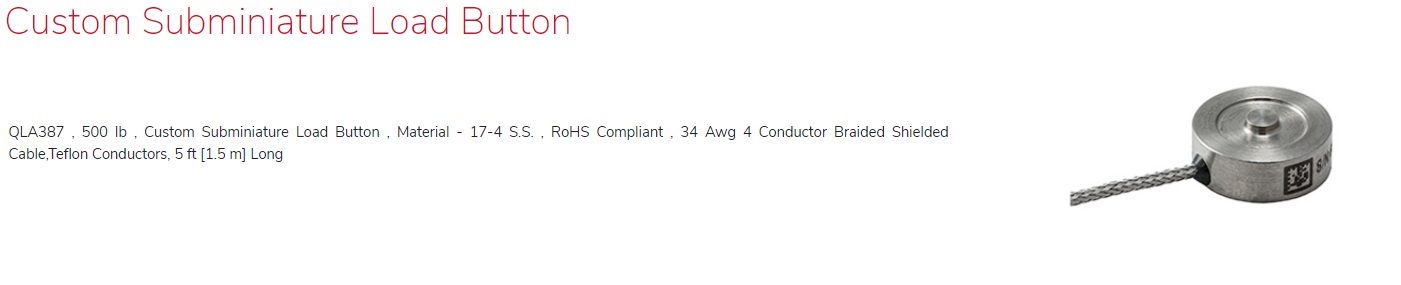

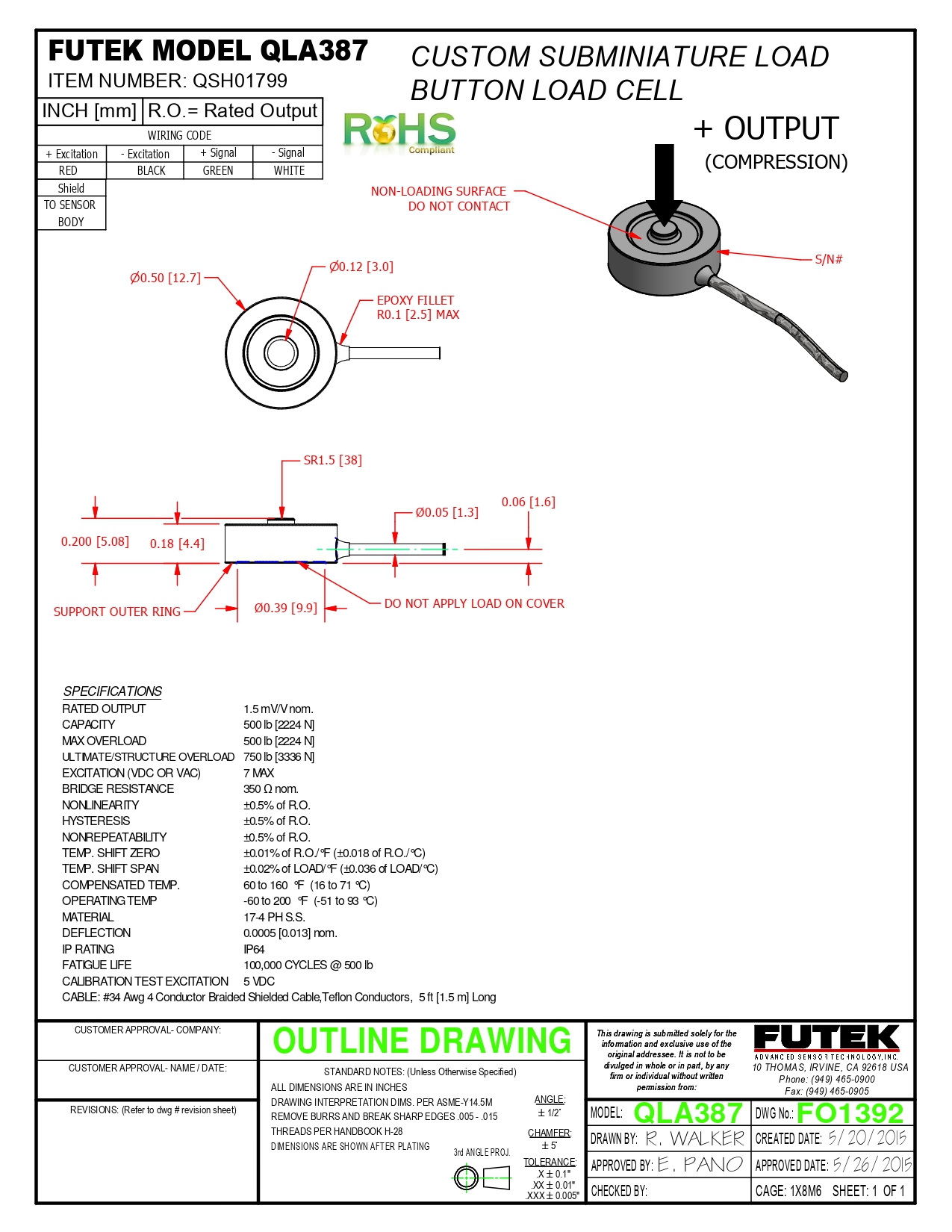

FUTEK QLA387 Custom Subminiature Load Button

QLA387 , 500 lb , Custom Subminiature Load Button , Material - 17-4 S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Shielded Cable,Teflon Conductors, 5 ft [1.5 m] Long

FUTEK QLA387 Custom Subminiature Load Button 이미지

QLA387 , 500 lb , Custom Subminiature Load Button , Material - 17-4 S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Shielded Cable,Teflon Conductors, 5 ft [1.5 m] Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA387 , 500 lb , Custom Subminiature Load Button , Material - 17-4 S.S. , RoHS Compliant , 34 Awg 4 Conductor Braided Shielded Cable,Teflon Conductors, 5 ft [1.5 m] Long

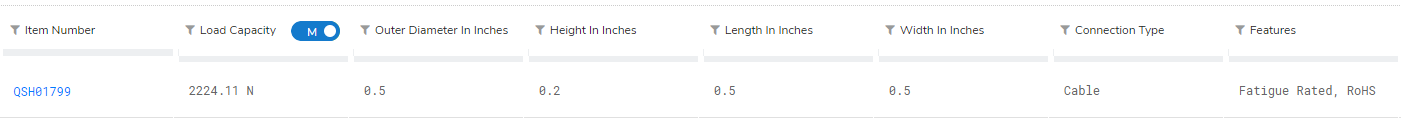

QSH01799

Description

Custom Subminiature Load Button

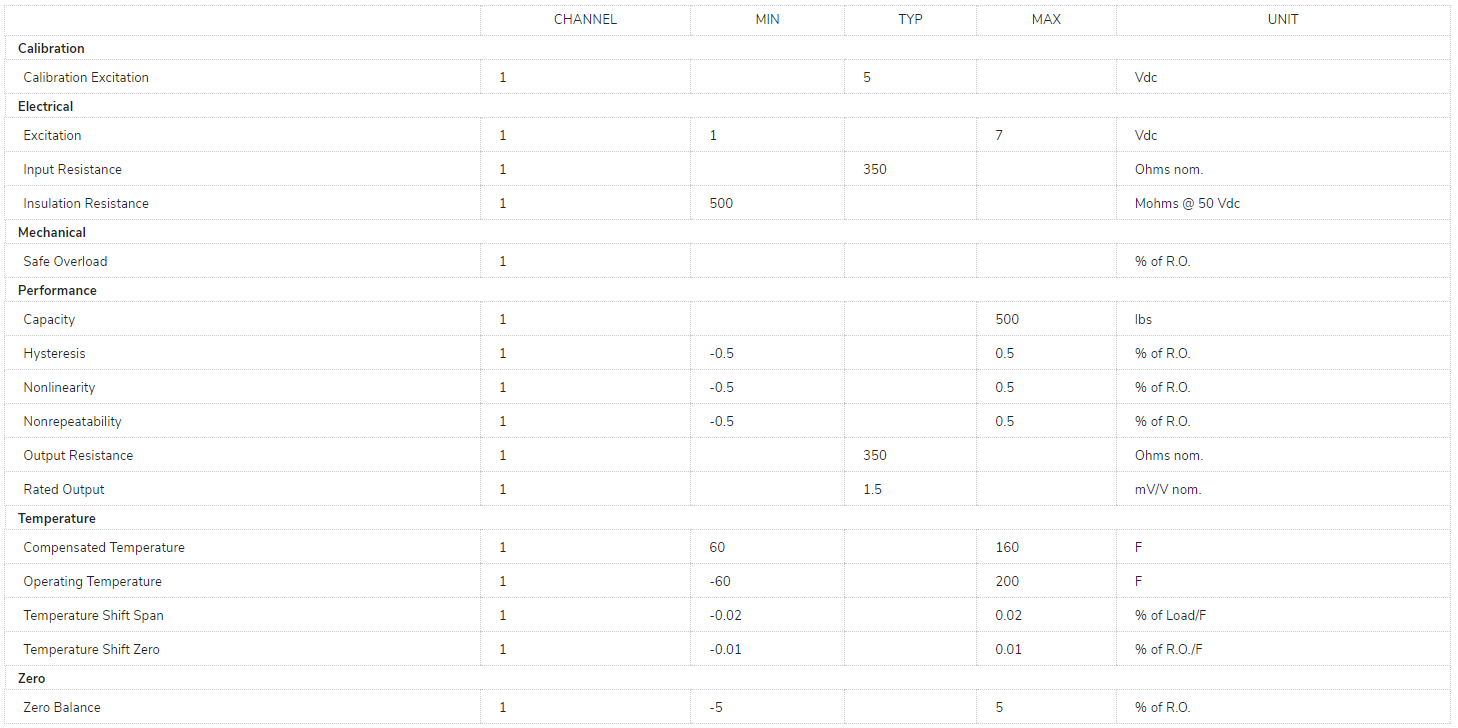

Specifications
