FUTEK QLA407 Custom Square Body Center Flange Load Cell

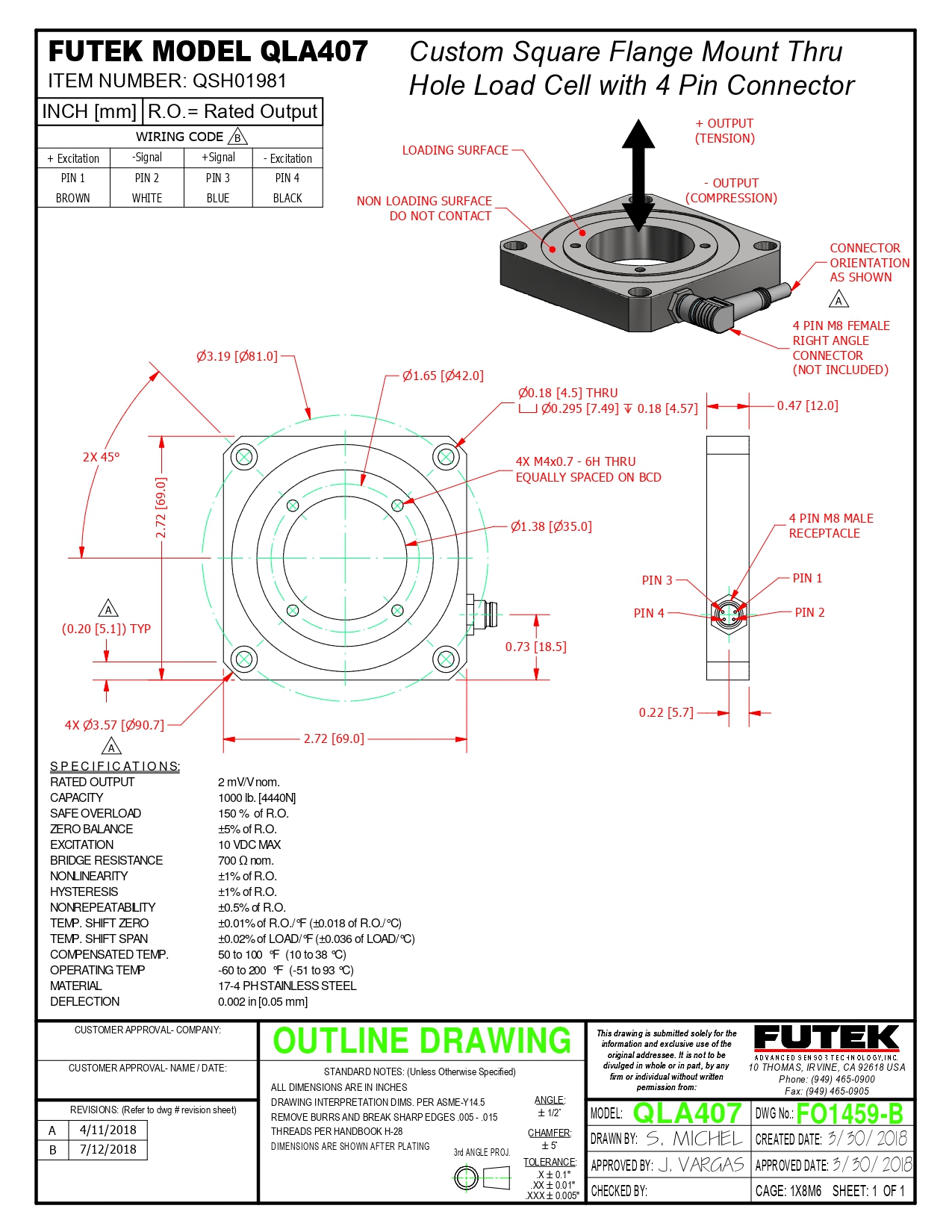

QLA407 , 1000 lb , Custom Square Flange Mount Thru Hole Load Cell , 1.38" [35 mm] ID x 0.472" [12 mm] H , RoHS Compliant, Material - 17-4PH S.S. , 4 Pin M8 Receptacle

FUTEK QLA407 Custom Square Body Center Flange Load Cell 이미지

QLA407 , 1000 lb , Custom Square Flange Mount Thru Hole Load Cell , 1.38" [35 mm] ID x 0.472" [12 mm] H , RoHS Compliant, Material - 17-4PH S.S. , 4 Pin M8 Receptacle

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA407 , 1000 lb , Custom Square Flange Mount Thru Hole Load Cell , 1.38" [35 mm] ID x 0.472" [12 mm] H , RoHS Compliant, Material - 17-4PH S.S. , 4 Pin M8 Receptacle

QSH01981

Description

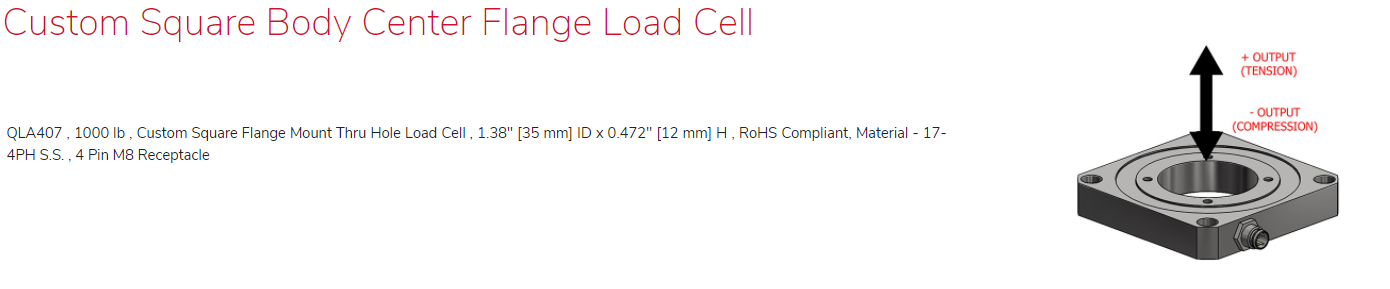

Custom Square Body Center Flange Load Cell

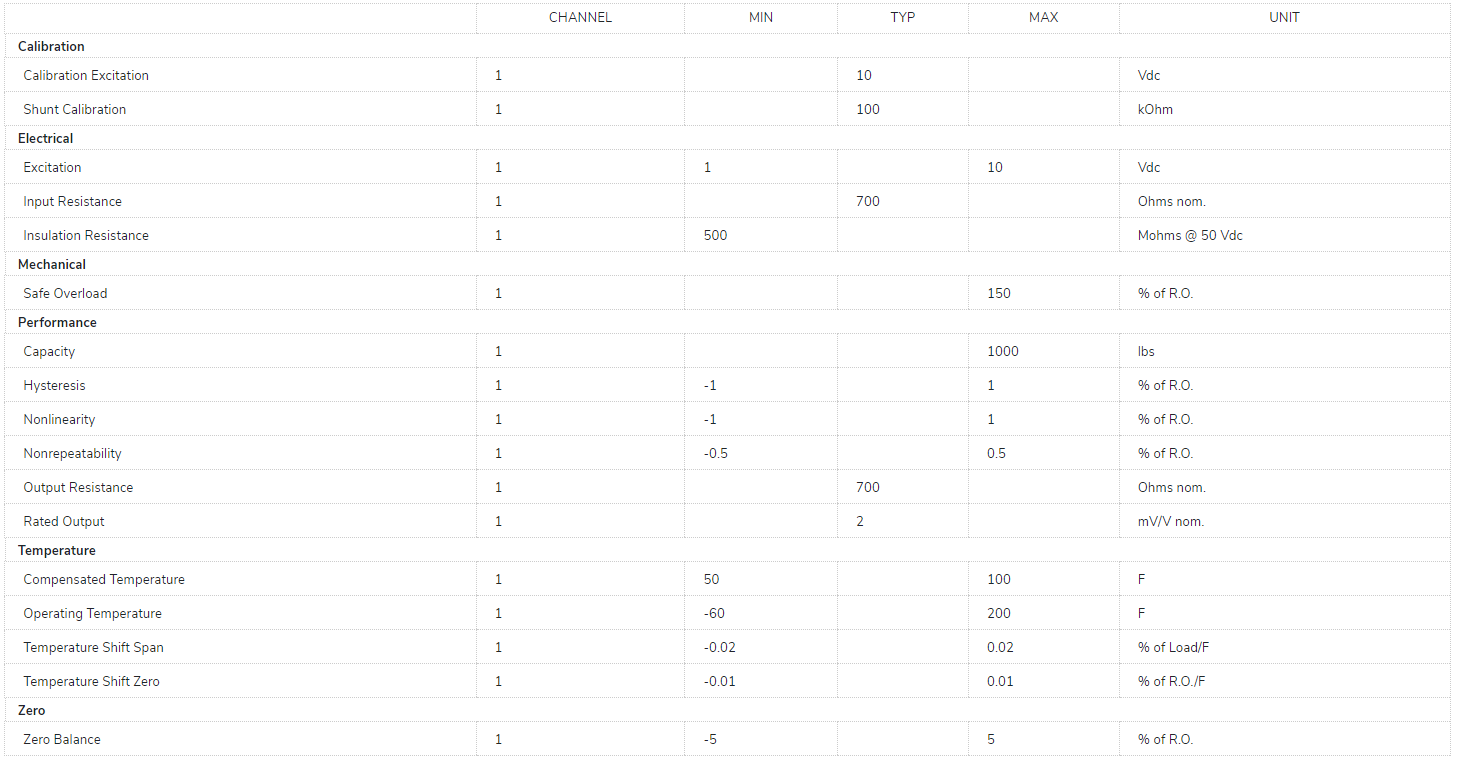

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
