홈/종합산업장비/센서/로드셀/FUTEK QLA411 Custom Single Point Load Cell

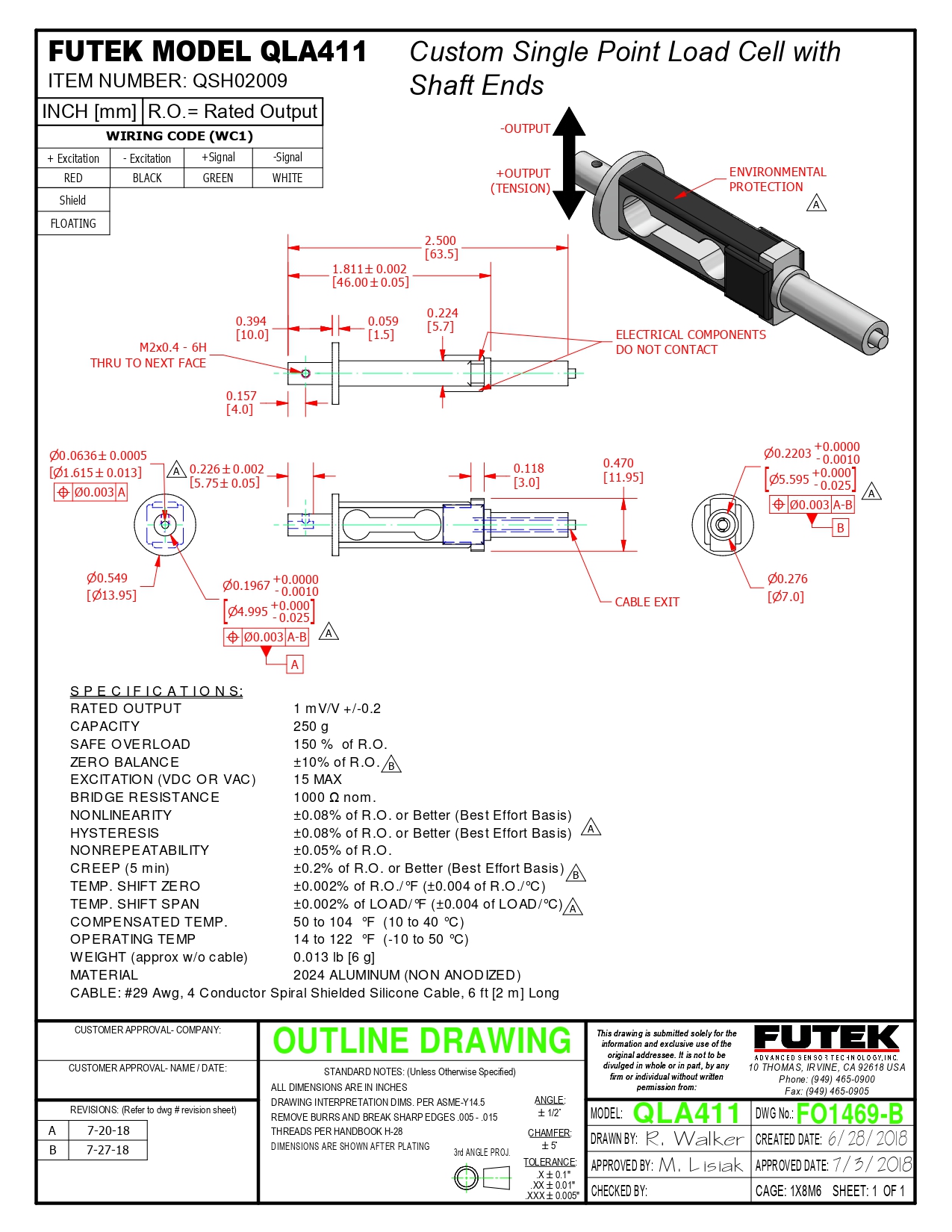

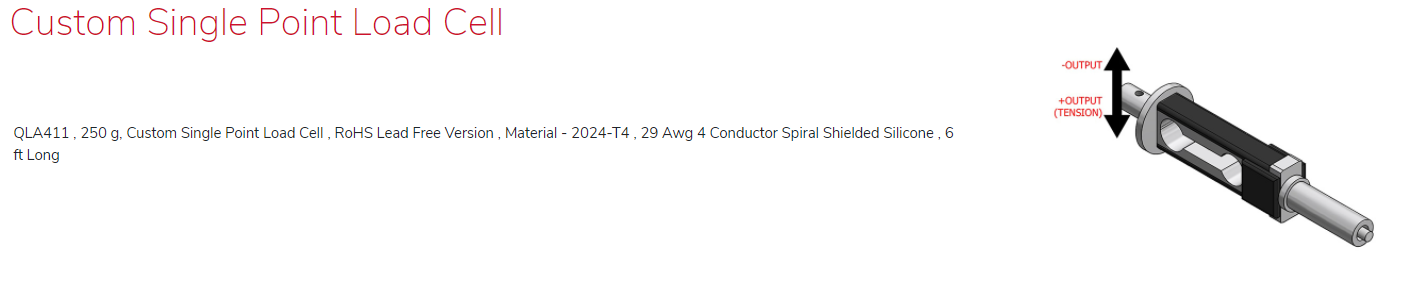

FUTEK QLA411 Custom Single Point Load Cell

QLA411 , 250 g, Custom Single Point Load Cell , RoHS Lead Free Version , Material - 2024-T4 , 29 Awg 4 Conductor Spiral Shielded Silicone , 6 ft Long

FUTEK QLA411 Custom Single Point Load Cell 이미지

QLA411 , 250 g, Custom Single Point Load Cell , RoHS Lead Free Version , Material - 2024-T4 , 29 Awg 4 Conductor Spiral Shielded Silicone , 6 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA411 , 250 g, Custom Single Point Load Cell , RoHS Lead Free Version , Material - 2024-T4 , 29 Awg 4 Conductor Spiral Shielded Silicone , 6 ft Long

QSH02009

Description

Custom Single Point Load Cell

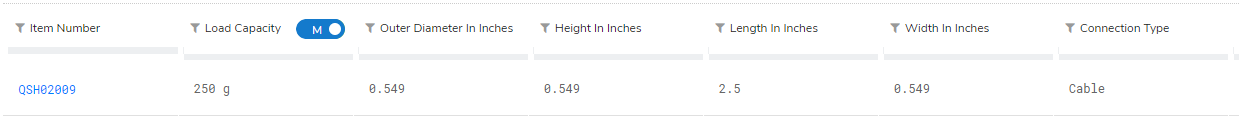

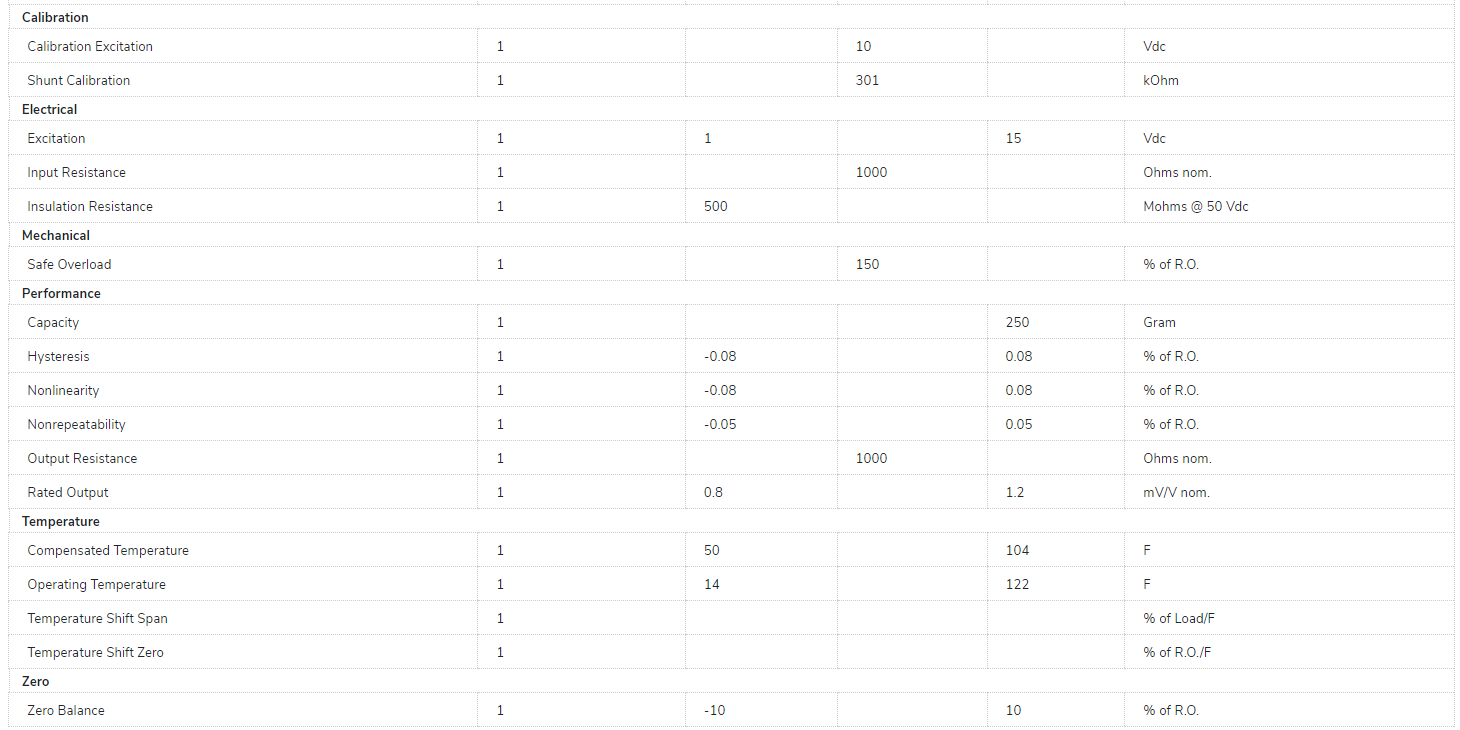

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
