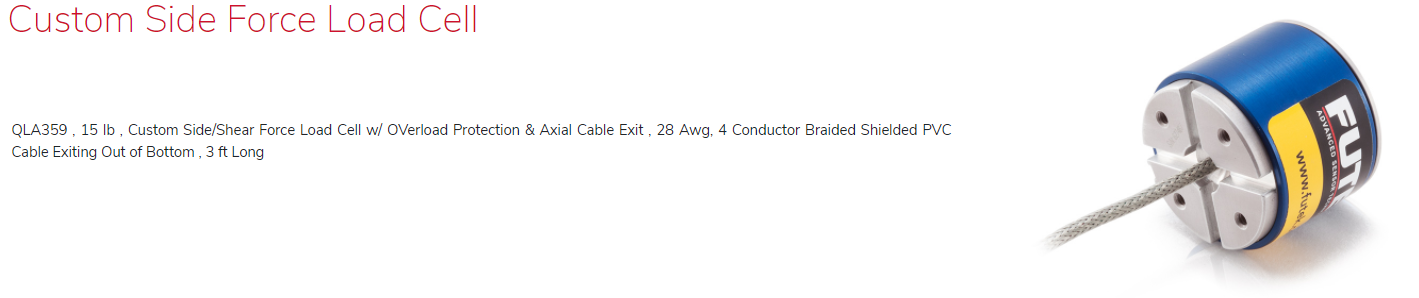

FUTEK QLA359 Custom Side Force Load Cell

QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long

FUTEK QLA359 Custom Side Force Load Cell 이미지

QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA359 , 15 lb , Custom Side/Shear Force Load Cell w/ OVerload Protection & Axial Cable Exit , 28 Awg, 4 Conductor Braided Shielded PVC Cable Exiting Out of Bottom , 3 ft Long

QSH01765

Description

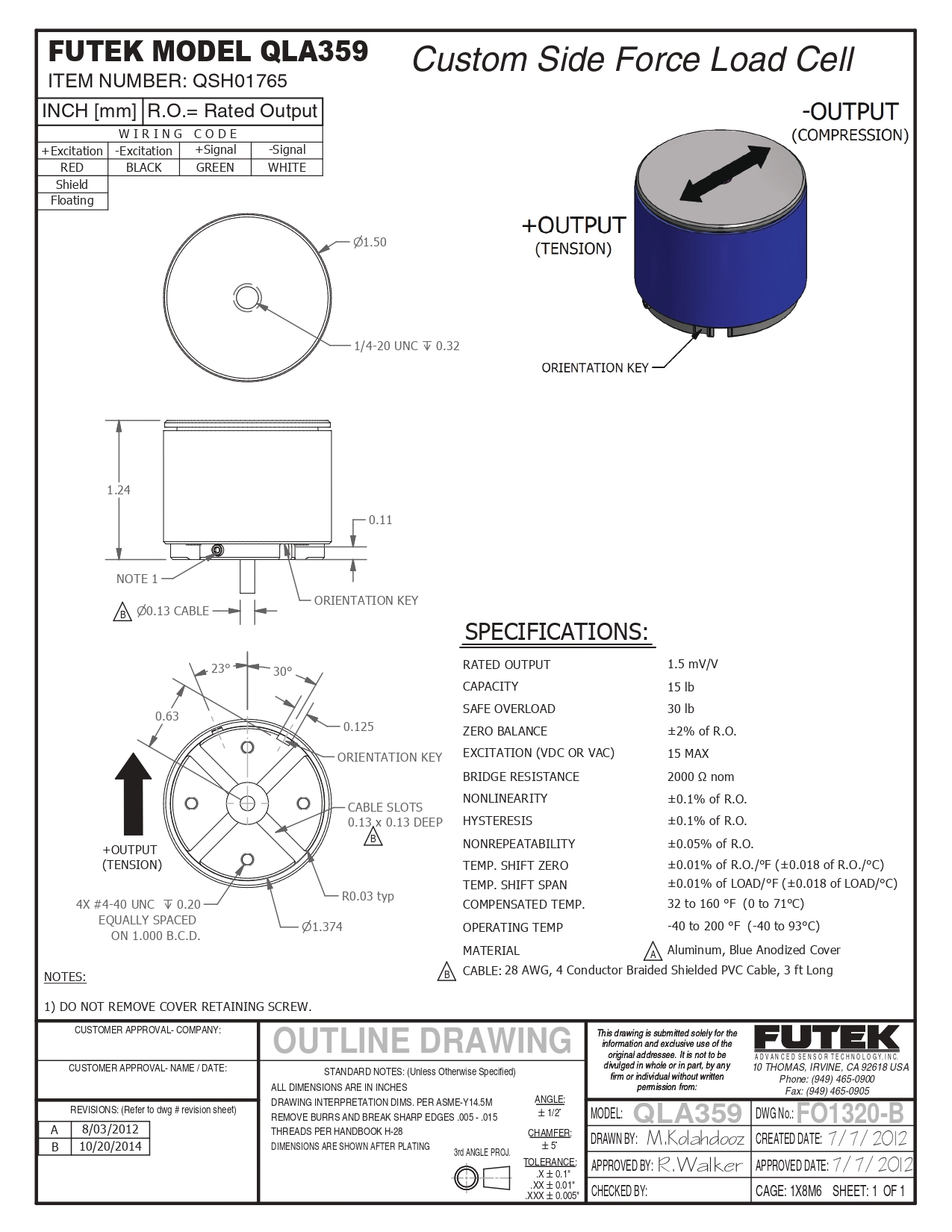

Custom Side Force Load Cell

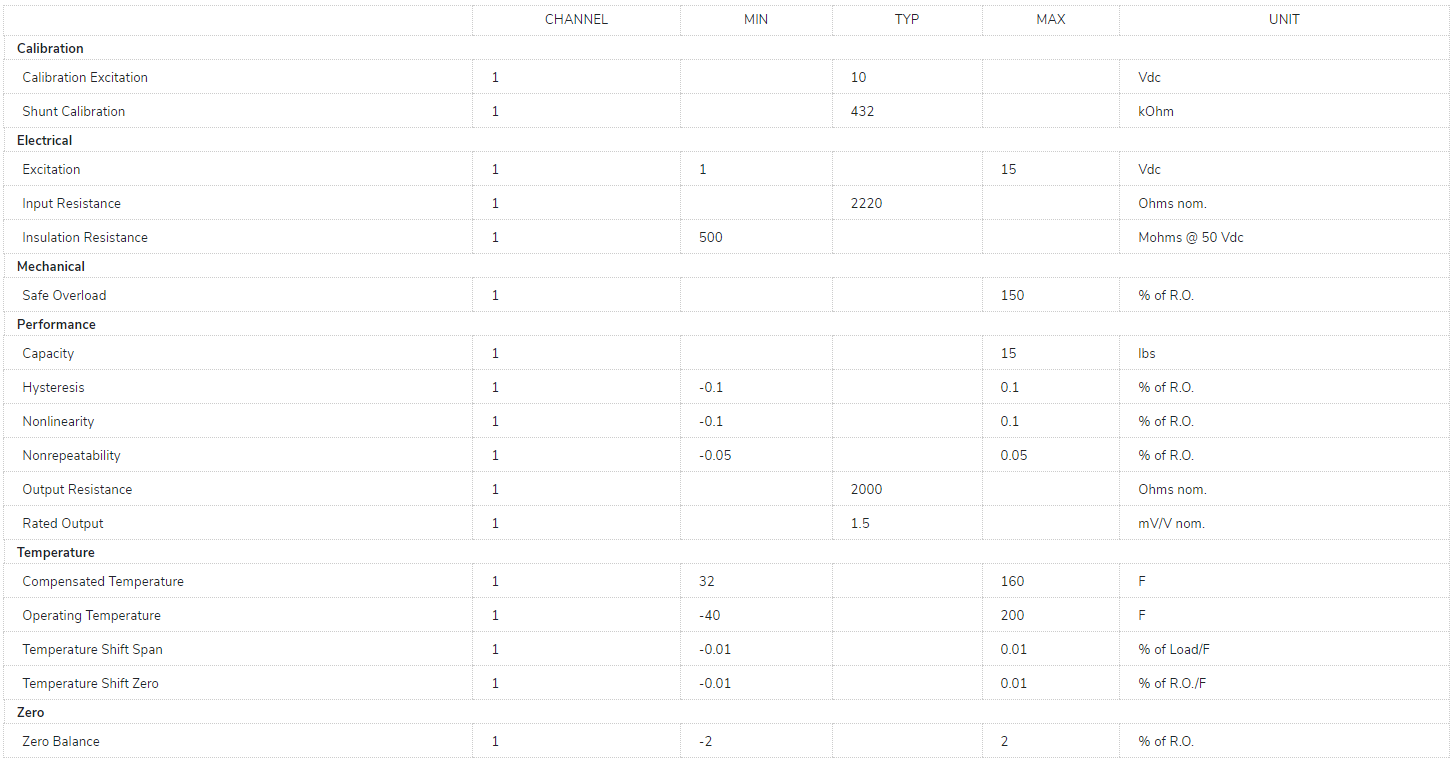

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
