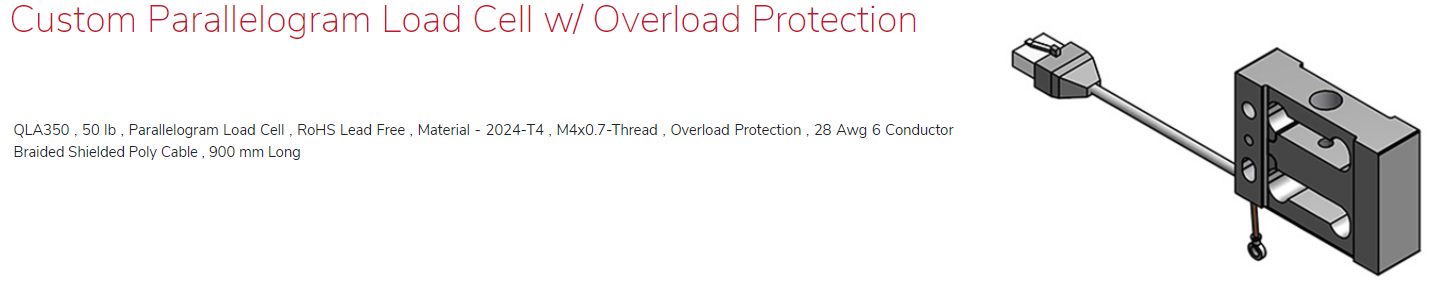

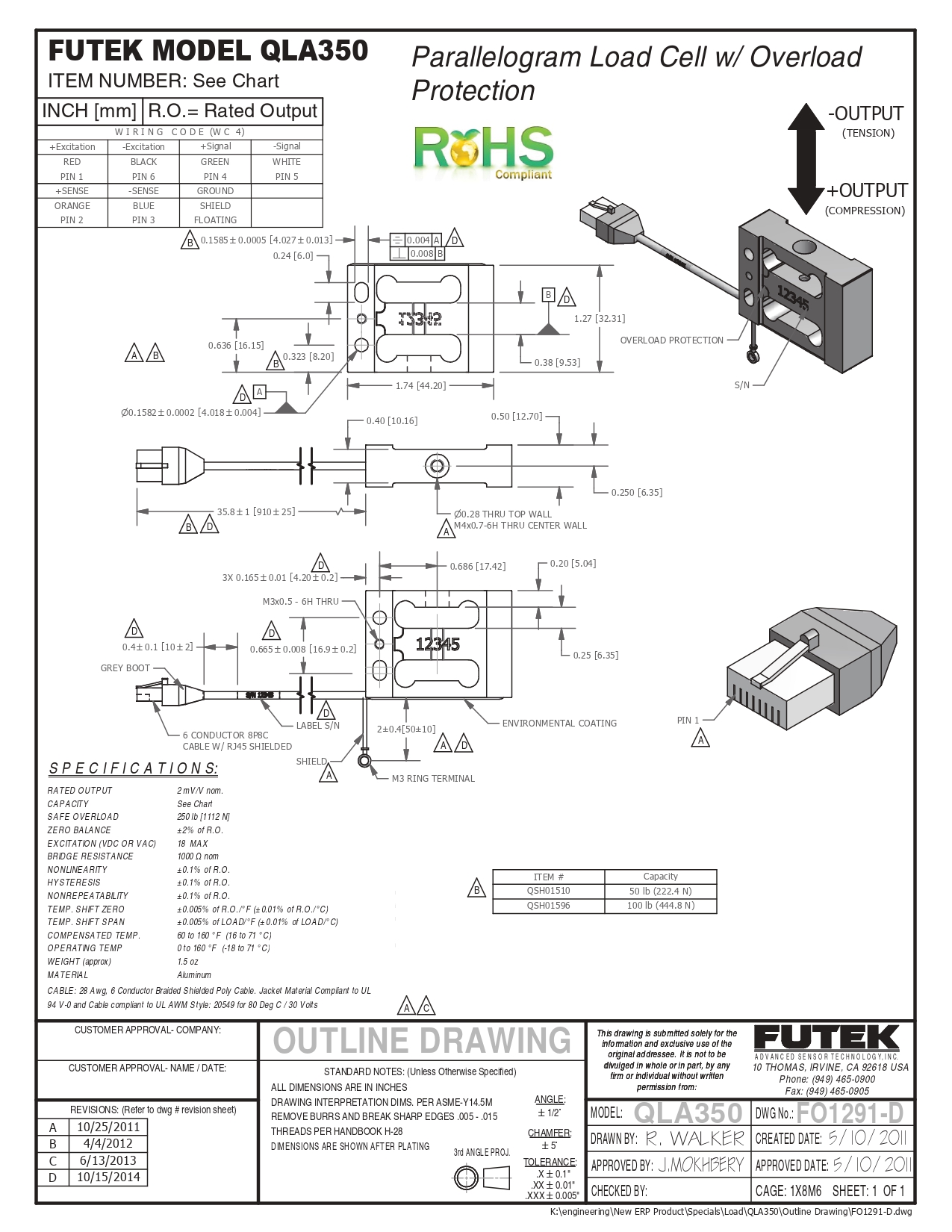

FUTEK QLA350 Custom Parallelogram Load Cell w/ Overload Protection

QLA350 , 50 lb , Parallelogram Load Cell , RoHS Lead Free , Material - 2024-T4 , M4x0.7-Thread , Overload Protection , 28 Awg 6 Conductor Braided Shielded Poly Cable , 900 mm Long

FUTEK QLA350 Custom Parallelogram Load Cell w/ Overload Protection 이미지

QLA350 , 50 lb , Parallelogram Load Cell , RoHS Lead Free , Material - 2024-T4 , M4x0.7-Thread , Overload Protection , 28 Awg 6 Conductor Braided Shielded Poly Cable , 900 mm Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA350 , 50 lb , Parallelogram Load Cell , RoHS Lead Free , Material - 2024-T4 , M4x0.7-Thread , Overload Protection , 28 Awg 6 Conductor Braided Shielded Poly Cable , 900 mm Long

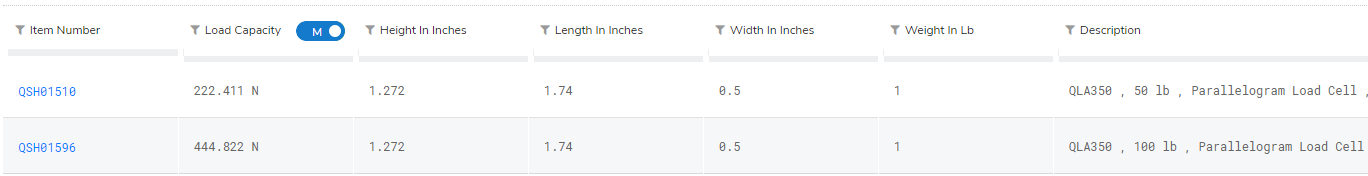

QSH01596

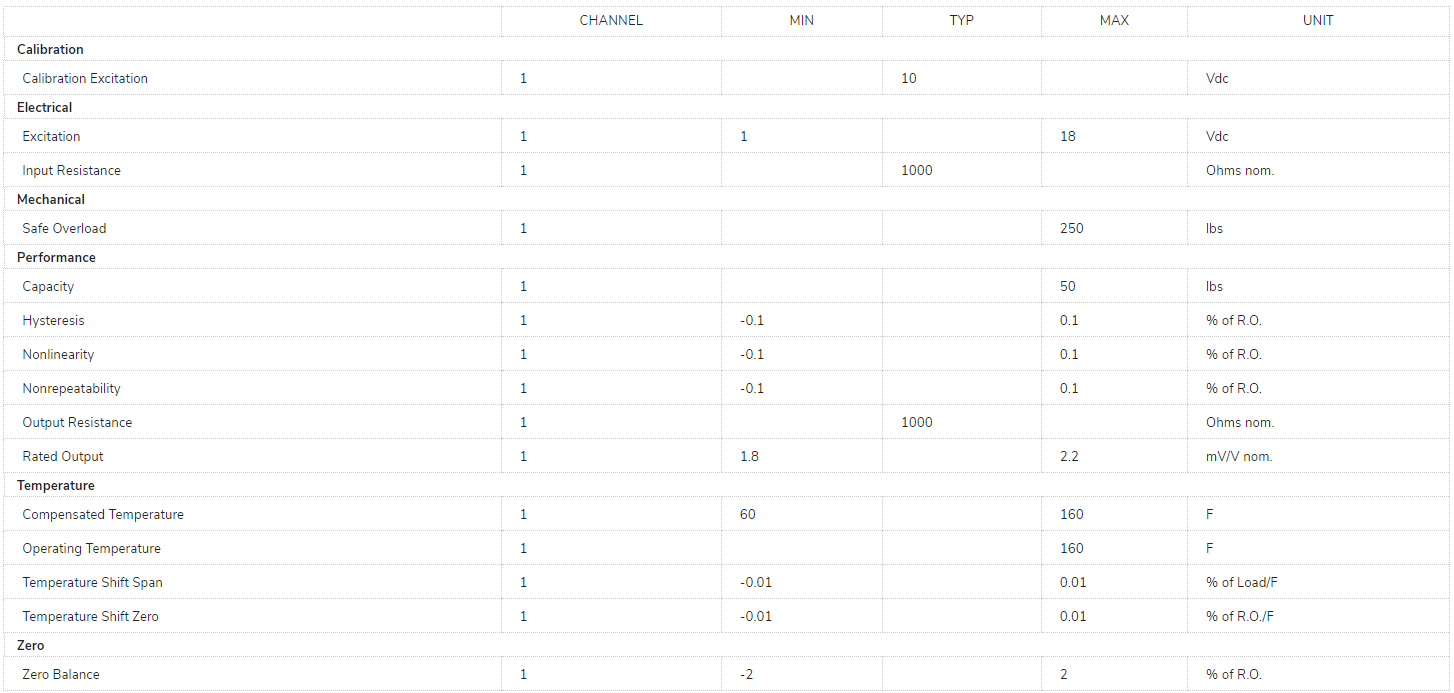

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
