홈/종합산업장비/센서/로드셀/FUTEK QLA133 Custom Pancake Load Cell w/ Built in Amplifier

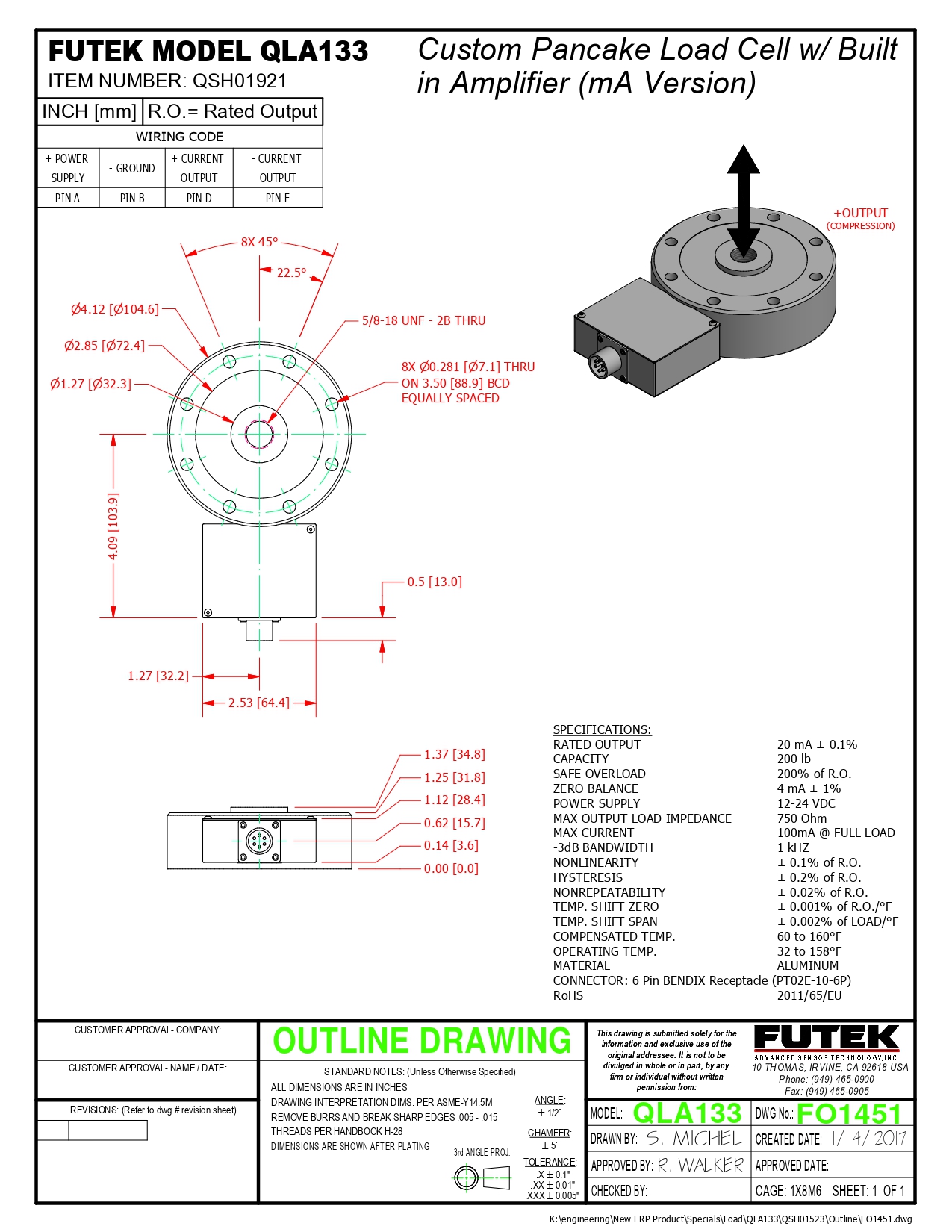

FUTEK QLA133 Custom Pancake Load Cell w/ Built in Amplifier

QLA133 , 200 lb , Custom Pancake Load Cell w/ Built in Amplifier , Amplified 4-20 mA Compression , RoHS Compliant, Material - 2024-T4 , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

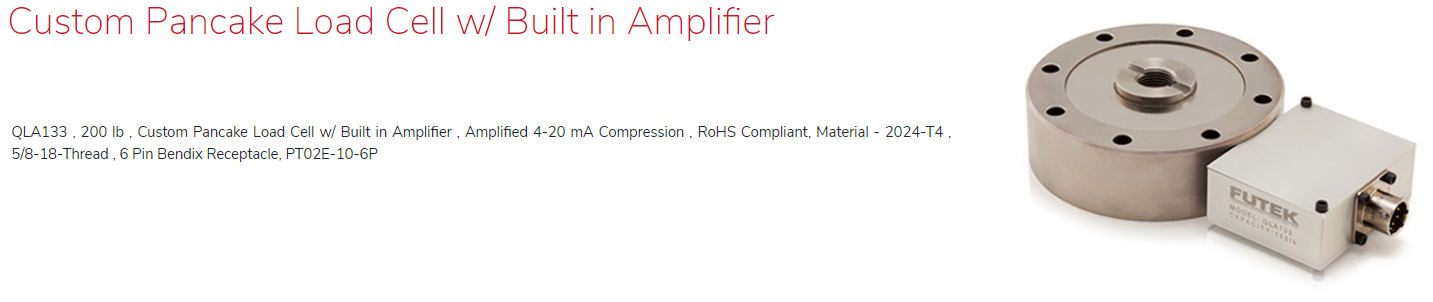

FUTEK QLA133 Custom Pancake Load Cell w/ Built in Amplifier 이미지

QLA133 , 200 lb , Custom Pancake Load Cell w/ Built in Amplifier , Amplified 4-20 mA Compression , RoHS Compliant, Material - 2024-T4 , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA133 , 200 lb , Custom Pancake Load Cell w/ Built in Amplifier , Amplified 4-20 mA Compression , RoHS Compliant, Material - 2024-T4 , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

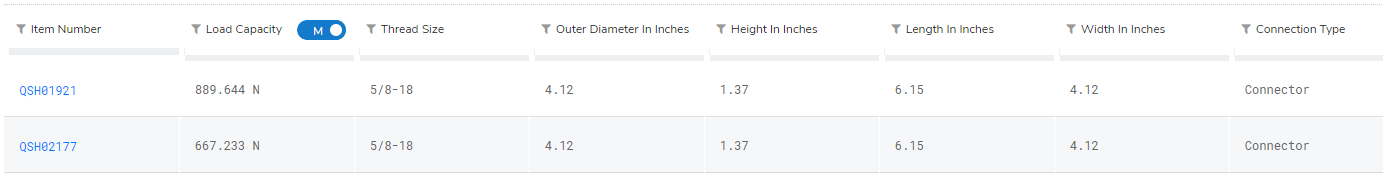

QSH01921

QSH02177

Description

Model QLA133 is a Custom Pancake Load Cell designed for compression applications. The sensor has eight bolt-down holes along its outer diameter for easy mounting. It is available in light weight 200 lb capacity Anodized Aluminum and a fatigue rated 150 lb capacity 17-4 Stainless Steel version. This custom pancake has integrated analog output to allow simplified integration into PLC controllers. Typical applications for the QLA133 include press assembly, automotive seat and material testing where eccentric and extraneous loads could occur.

Features

  • Commonly used in automotive seat testing
  • Fatigue rated version available
  • Resistant to overload
  • Resistant to eccentric loading

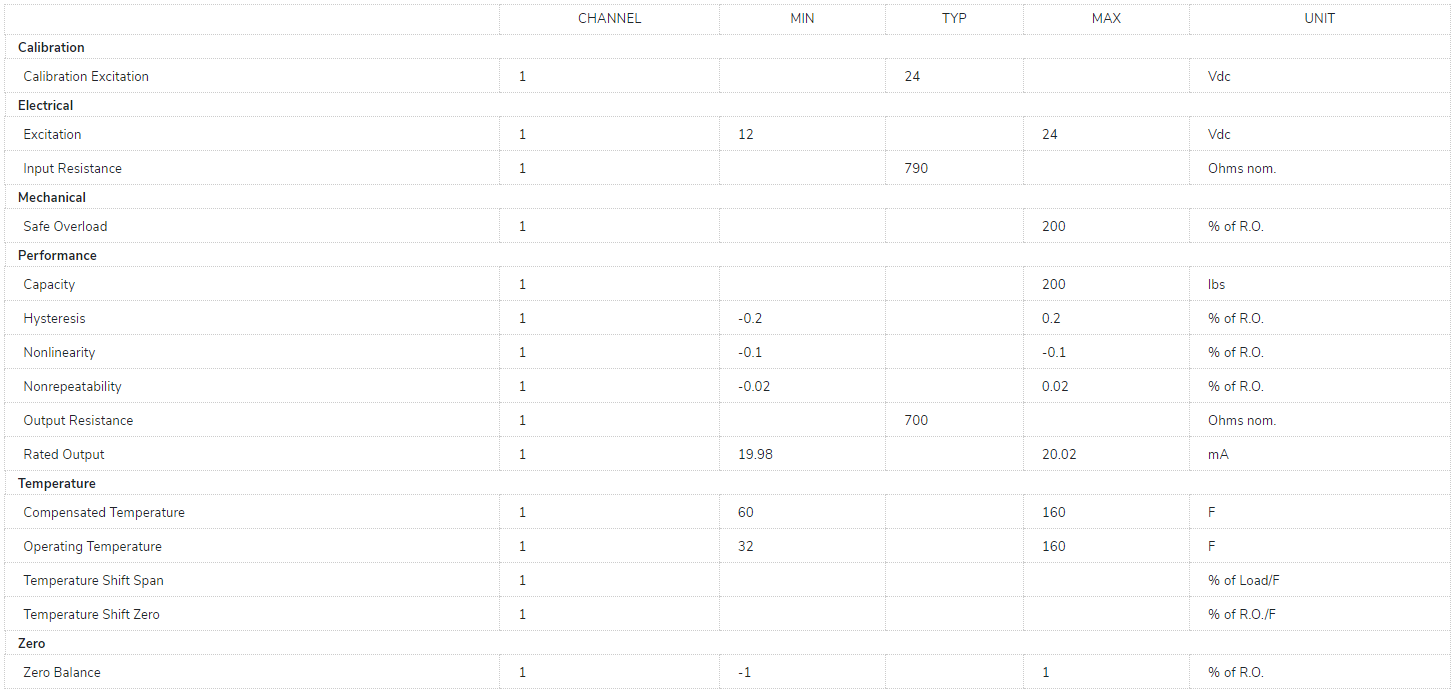

Specifications
