홈/종합산업장비/센서/로드셀/FUTEK QLA200 Custom Non-Magnetic Compression Load Cell

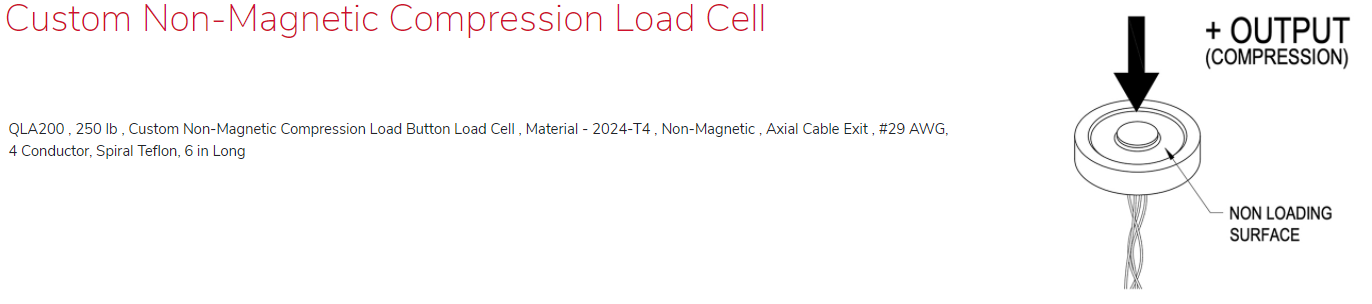

FUTEK QLA200 Custom Non-Magnetic Compression Load Cell

QLA200 , 250 lb , Custom Non-Magnetic Compression Load Button Load Cell , Material - 2024-T4 , Non-Magnetic , Axial Cable Exit , #29 AWG, 4 Conductor, Spiral Teflon, 6 in Long

FUTEK QLA200 Custom Non-Magnetic Compression Load Cell 이미지

QLA200 , 250 lb , Custom Non-Magnetic Compression Load Button Load Cell , Material - 2024-T4 , Non-Magnetic , Axial Cable Exit , #29 AWG, 4 Conductor, Spiral Teflon, 6 in Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA200 , 250 lb , Custom Non-Magnetic Compression Load Button Load Cell , Material - 2024-T4 , Non-Magnetic , Axial Cable Exit , #29 AWG, 4 Conductor, Spiral Teflon, 6 in Long

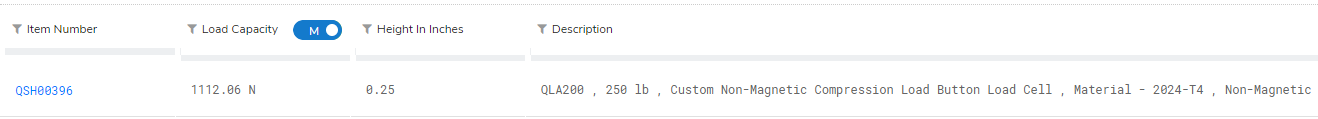

QSH00396

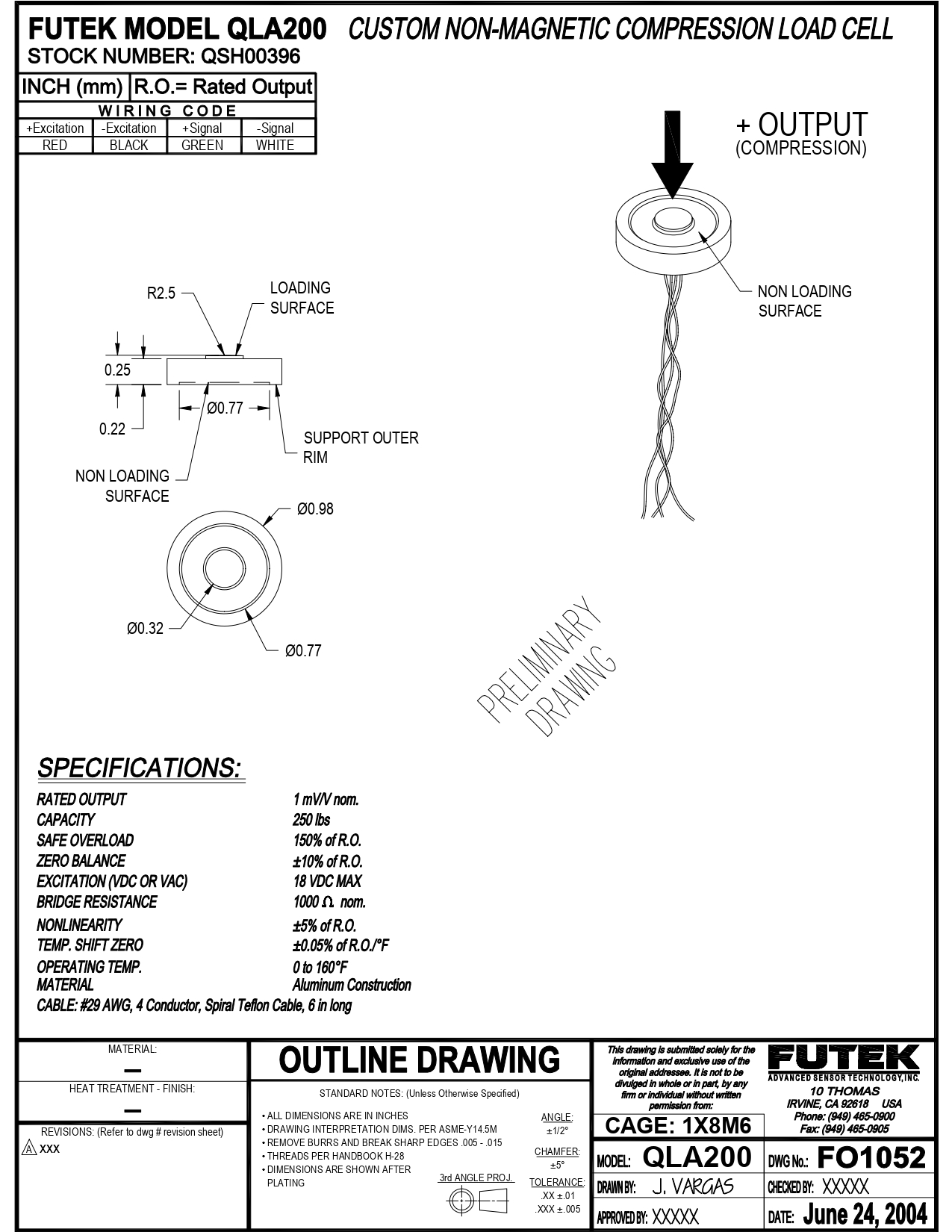

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
