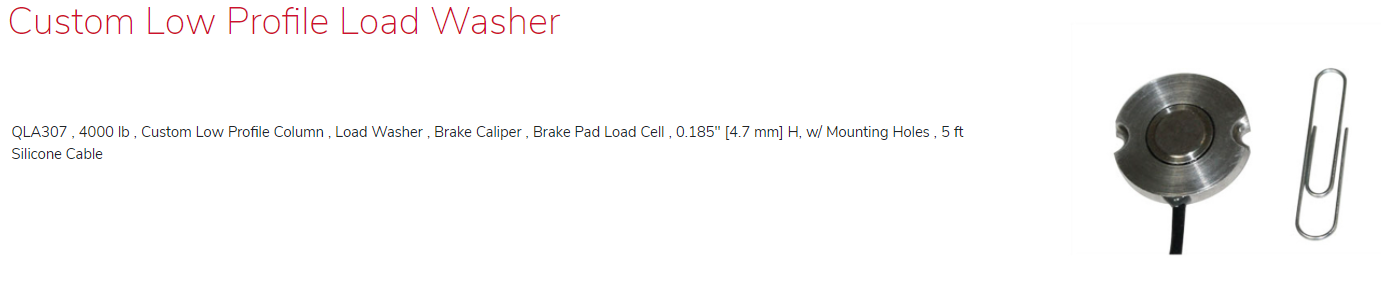

QLA307 , 4000 lb , Custom Low Profile Column , Load Washer , Brake Caliper , Brake Pad Load Cell , 0.185" [4.7 mm] H, w/ Mounting Holes , 5 ft Silicone Cable
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
QLA307 , 4000 lb , Custom Low Profile Column , Load Washer , Brake Caliper , Brake Pad Load Cell , 0.185" [4.7 mm] H, w/ Mounting Holes , 5 ft Silicone Cable
QSH01207
Description
FUTEK’s Column Load Cell (Miniature) offers an impressive compact design for high capacity applications. With a diameter of 0.9” [22.86 mm], it is ideal for tight spaces. The QLA307 Column Load Cell (Miniature) is offered in 17-4PH Stainless Steel with a 4,000 lbs [17.8 kN] capacity, with a raised surface radius to lower the possibility of off center loading.
The Column Load Cell (Miniature) is designed to measure loads in compression. This model is manufactured in US, and similar to our entire Load Cell product line, uses metal foil strain gauge technology. Additional design features include the use of a strain relief providing much greater protection from the pull on the cable.
Features
- 0.185" [4.7 mm ] Ultra Low Profile Height
- Fast Response Time
- Commonly used for Caliper & Brake Pad Testing
- Integrated Mounting Provisions
- Radial Cable Exit

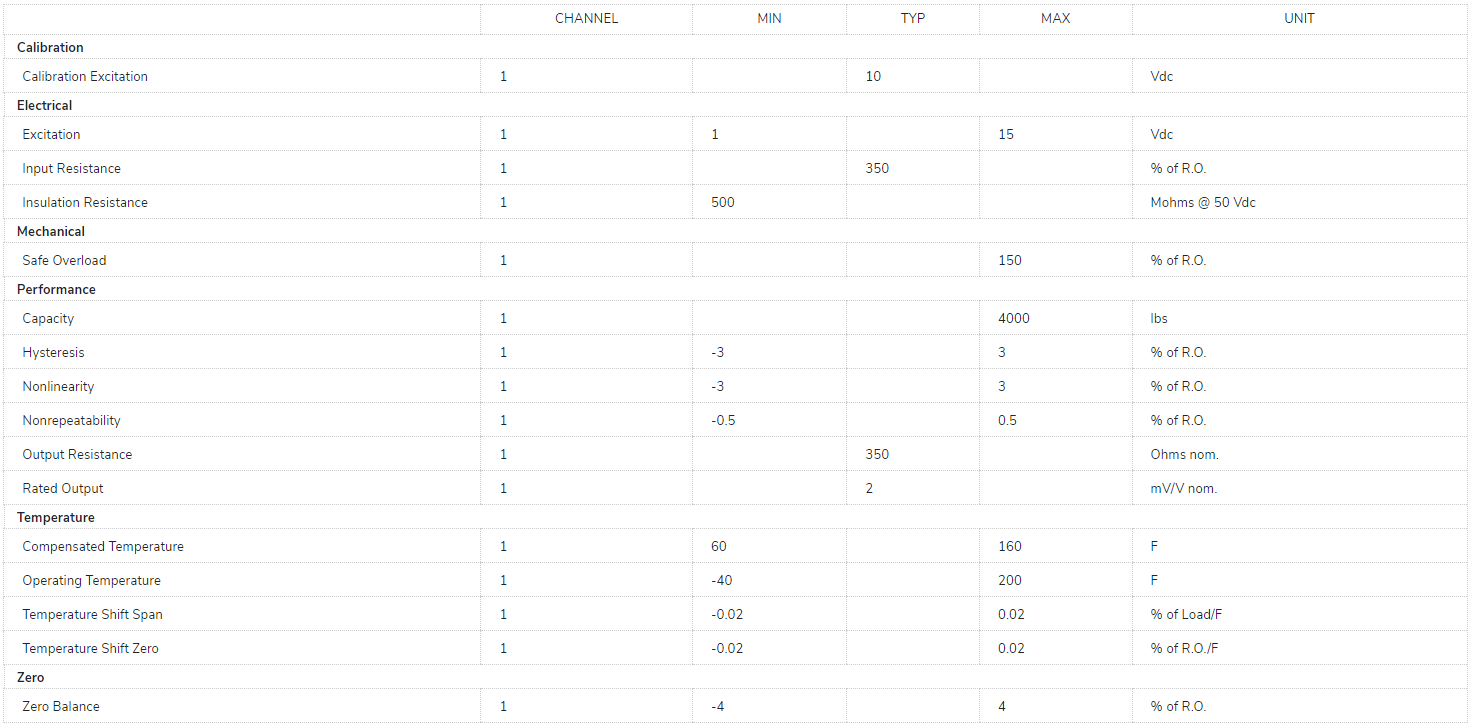

Specifications
