홈/종합산업장비/센서/로드셀/FUTEK QLA308 Custom Load Washer Load Cell

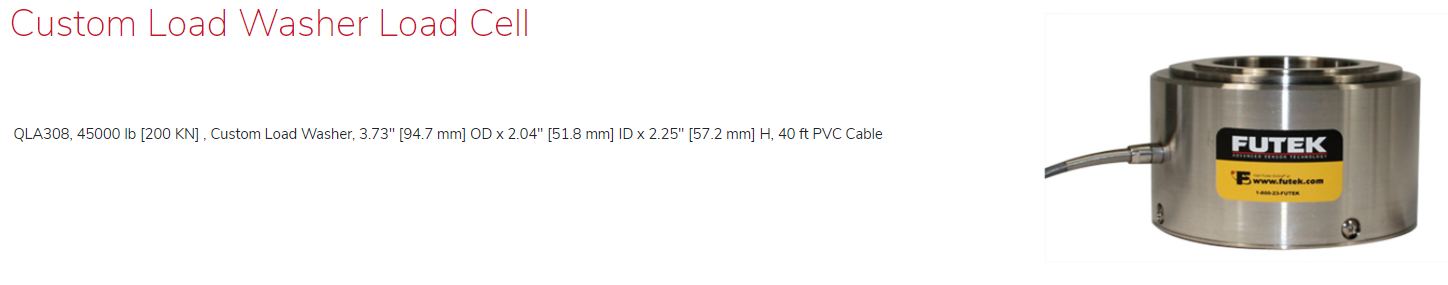

FUTEK QLA308 Custom Load Washer Load Cell

QLA308, 45000 lb [200 KN] , Custom Load Washer, 3.73" [94.7 mm] OD x 2.04" [51.8 mm] ID x 2.25" [57.2 mm] H, 40 ft PVC Cable

FUTEK QLA308 Custom Load Washer Load Cell 이미지

QLA308, 45000 lb [200 KN] , Custom Load Washer, 3.73" [94.7 mm] OD x 2.04" [51.8 mm] ID x 2.25" [57.2 mm] H, 40 ft PVC Cable

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA308, 45000 lb [200 KN] , Custom Load Washer, 3.73" [94.7 mm] OD x 2.04" [51.8 mm] ID x 2.25" [57.2 mm] H, 40 ft PVC Cable

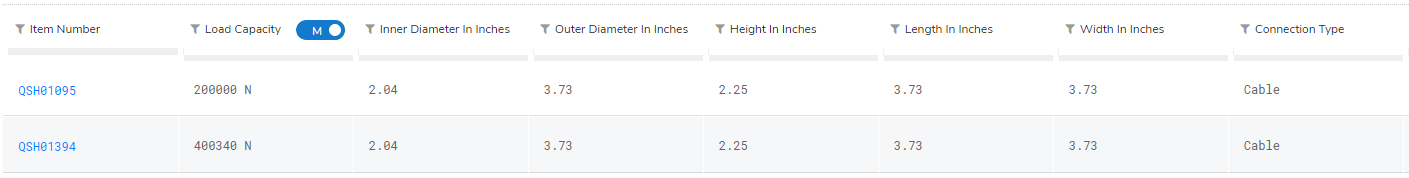

QSH01095

QSH01394

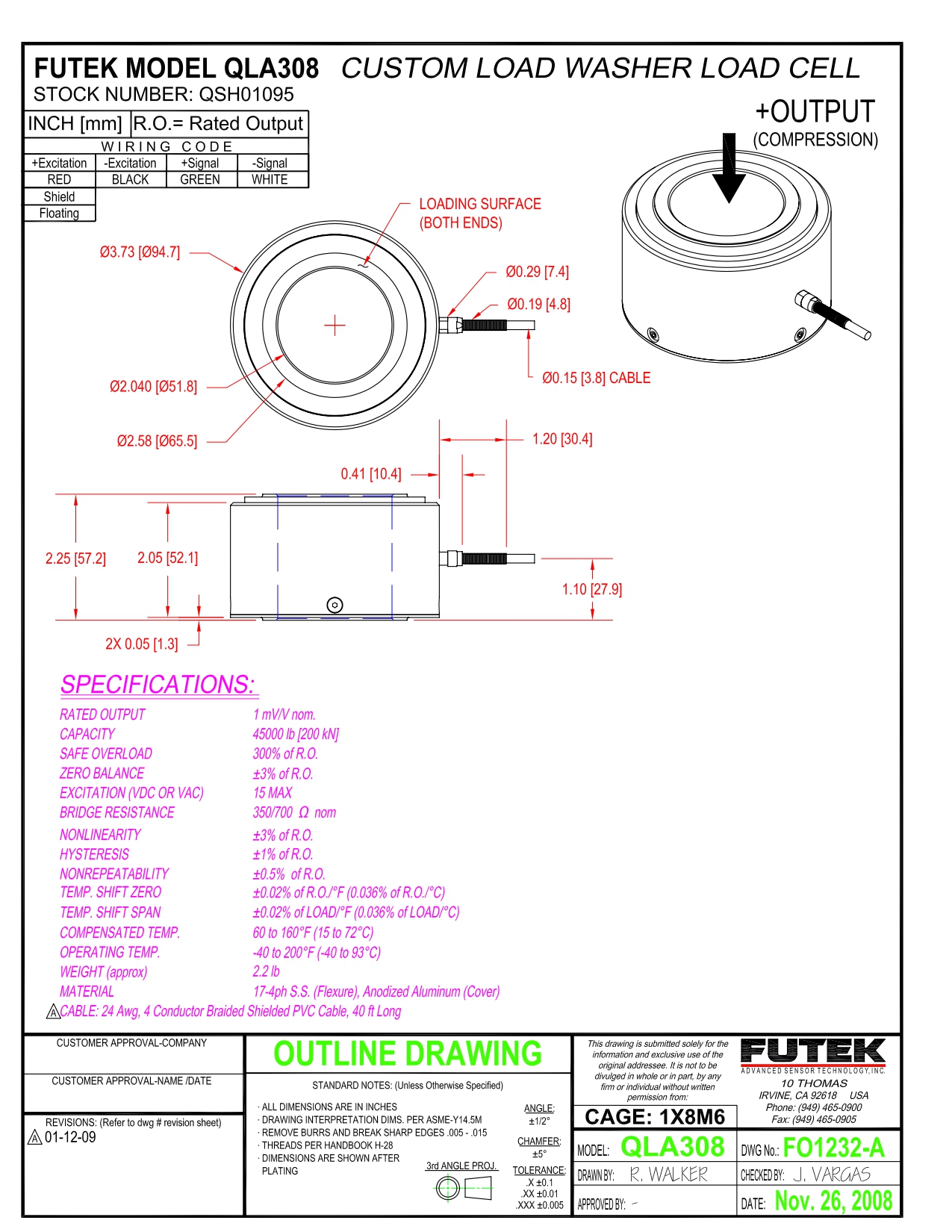

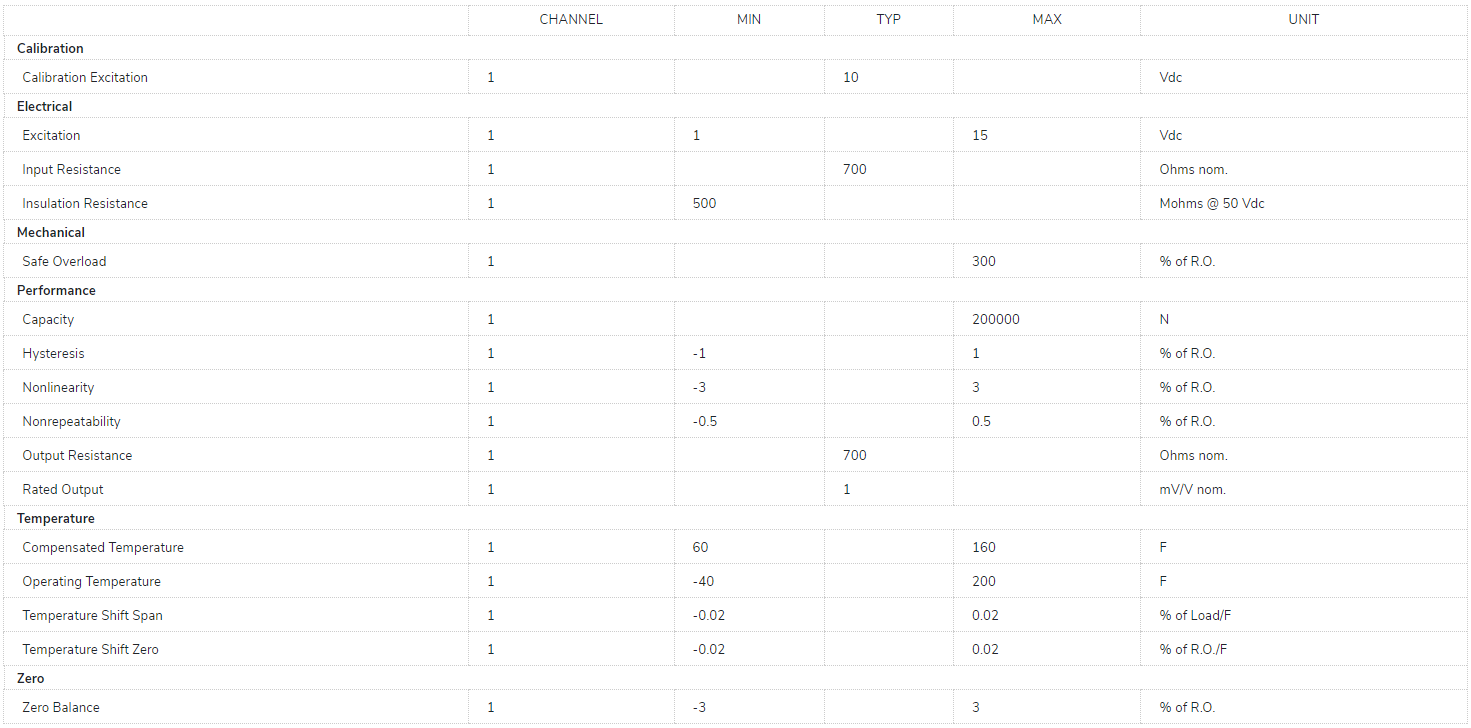

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
