홈/종합산업장비/센서/로드셀/FUTEK QLA214 Custom Load Button w/ Threaded Mounting Holes

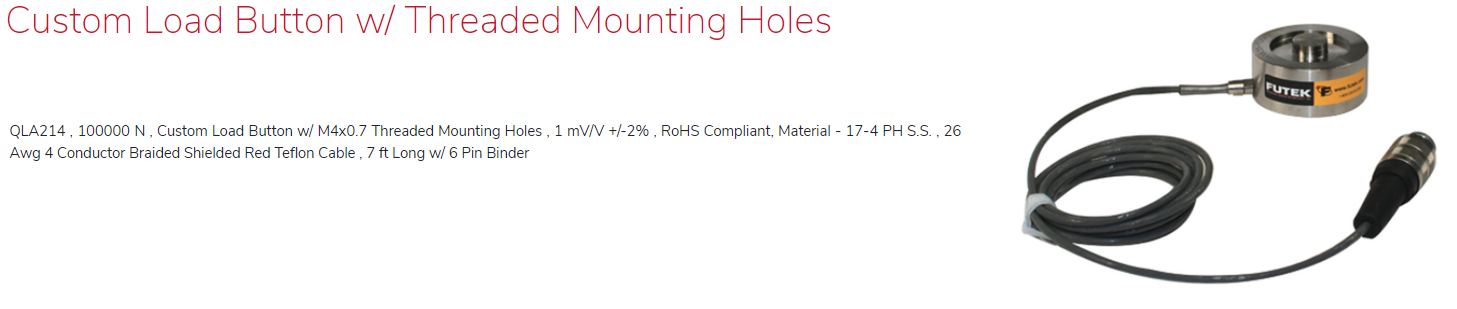

FUTEK QLA214 Custom Load Button w/ Threaded Mounting Holes

QLA214 , 100000 N , Custom Load Button w/ M4x0.7 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

FUTEK QLA214 Custom Load Button w/ Threaded Mounting Holes 이미지

QLA214 , 100000 N , Custom Load Button w/ M4x0.7 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA214 , 100000 N , Custom Load Button w/ M4x0.7 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

QSH01904

Description

Custom Load Button with Threaded Mounting Holes

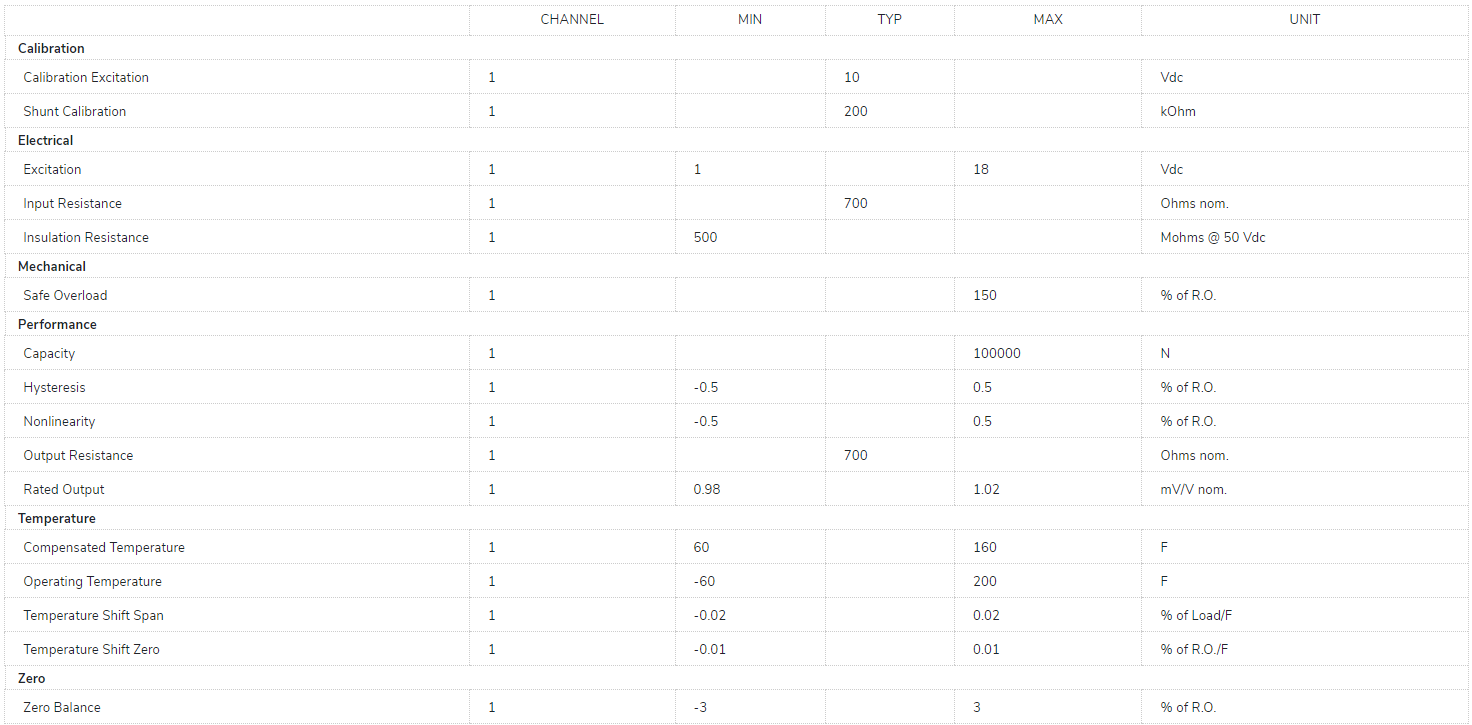

Specifications
