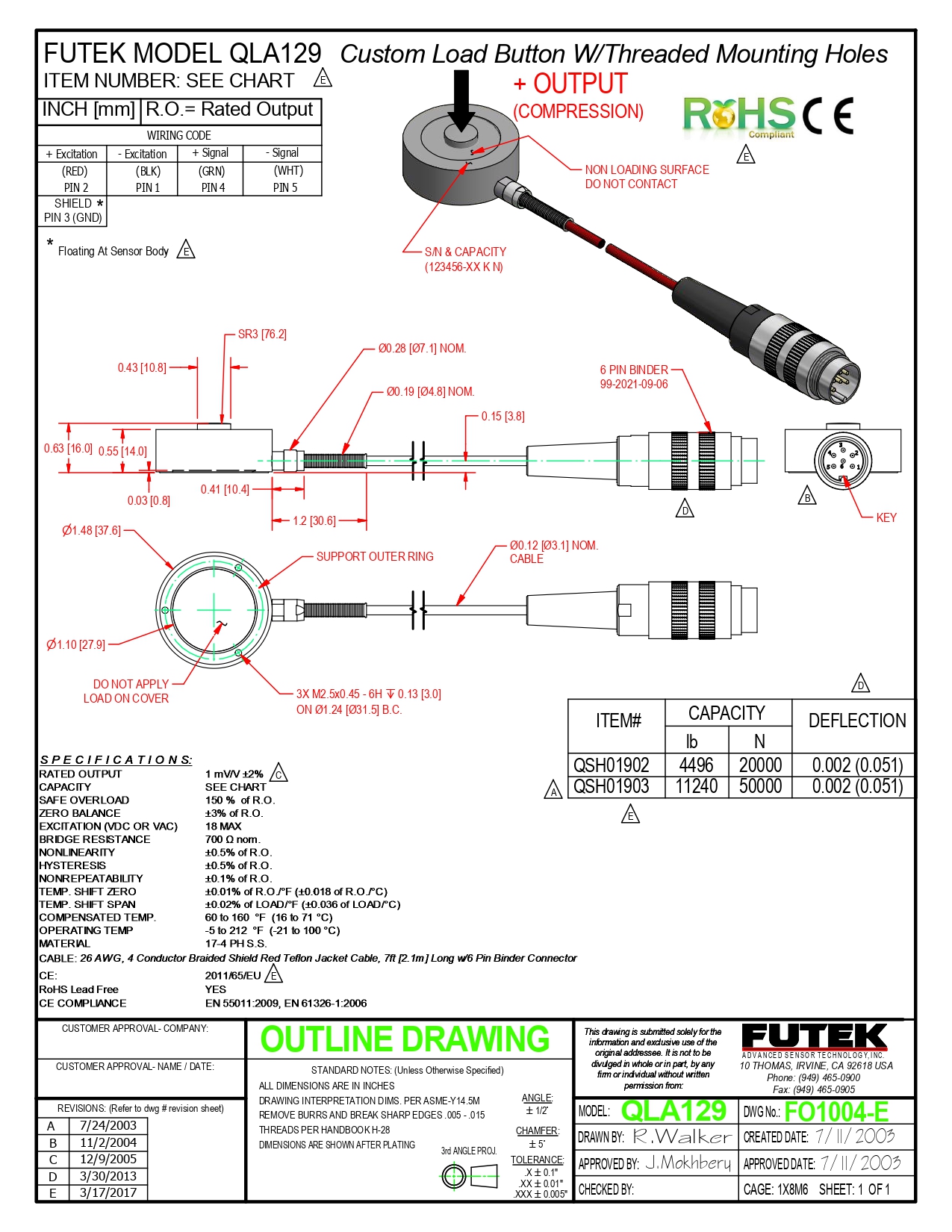

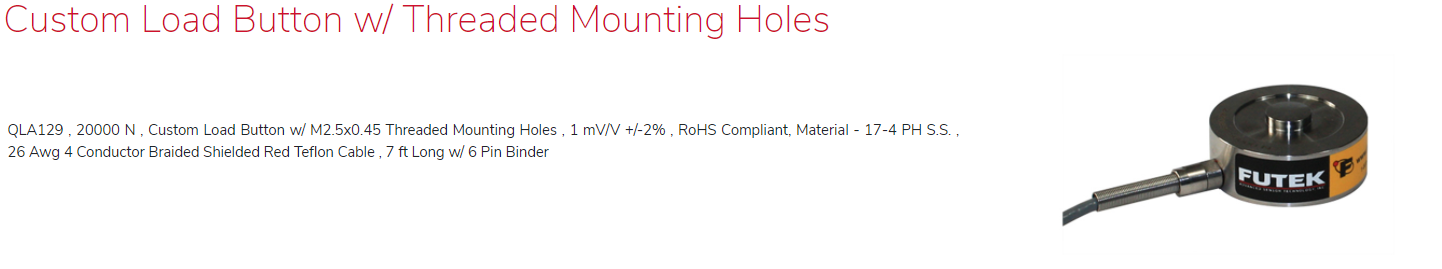

FUTEK QLA129 Custom Load Button w/ Threaded Mounting Holes

QLA129 , 20000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

FUTEK QLA129 Custom Load Button w/ Threaded Mounting Holes 이미지

QLA129 , 20000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA129 , 20000 N , Custom Load Button w/ M2.5x0.45 Threaded Mounting Holes , 1 mV/V +/-2% , RoHS Compliant, Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Red Teflon Cable , 7 ft Long w/ 6 Pin Binder

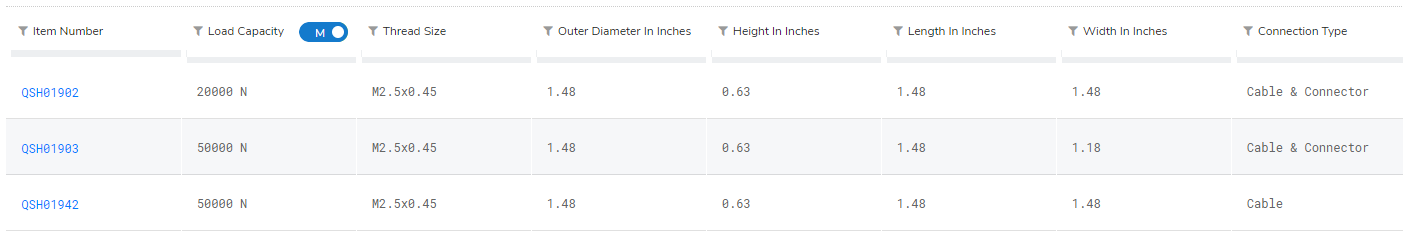

QSH01902

QSH01903

QSH01942

Description

Custom Load Button with Threaded Mounting Holes

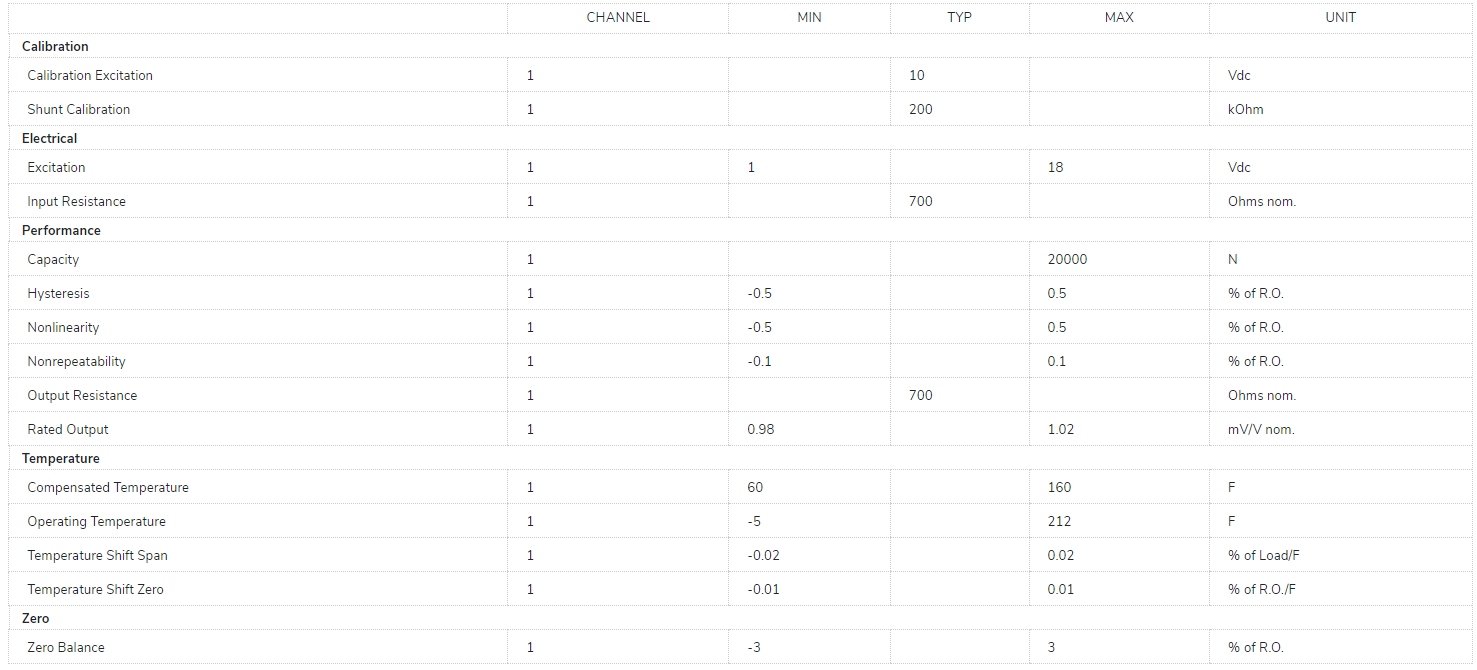

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
