FUTEK QLA367 Custom Load Button Load Cell with TEDS

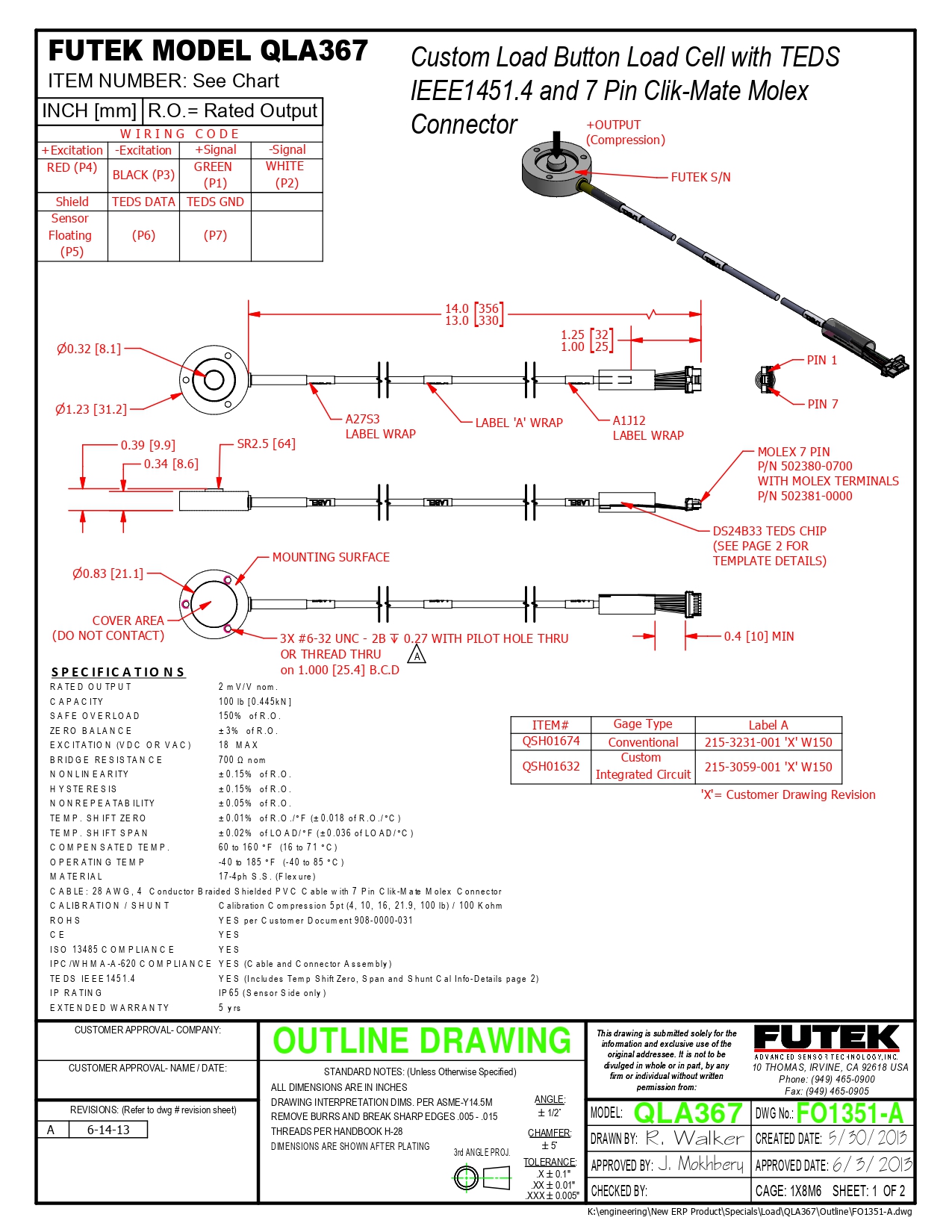

QLA367 , 100 lb , Load Button Load Cell , Special Full Circuit Gauge , IEEE1451.4 TEDS , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided PVC Cable , 13 in with 7 pin 1.25mm Clik-Mate Molex Connector

FUTEK QLA367 Custom Load Button Load Cell with TEDS 이미지

QLA367 , 100 lb , Load Button Load Cell , Special Full Circuit Gauge , IEEE1451.4 TEDS , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided PVC Cable , 13 in with 7 pin 1.25mm Clik-Mate Molex Connector

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA367 , 100 lb , Load Button Load Cell , Special Full Circuit Gauge , IEEE1451.4 TEDS , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided PVC Cable , 13 in with 7 pin 1.25mm Clik-Mate Molex Connector

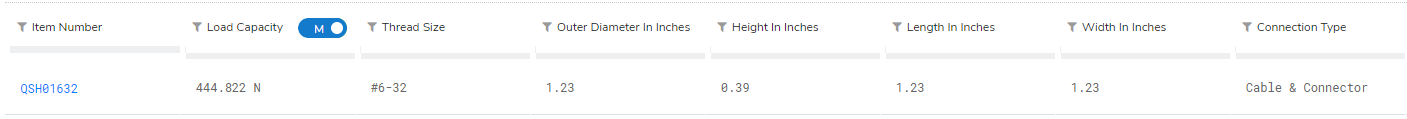

QSH01632

Description

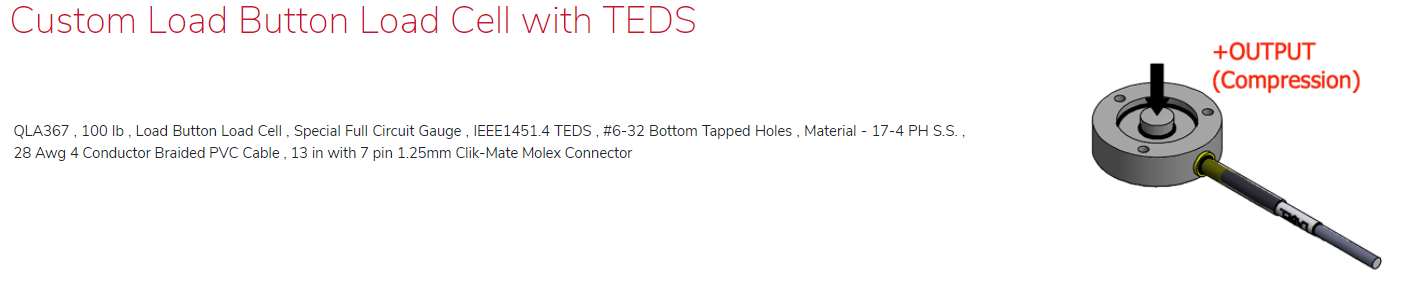

Custom Load Button Load Cell with TEDS

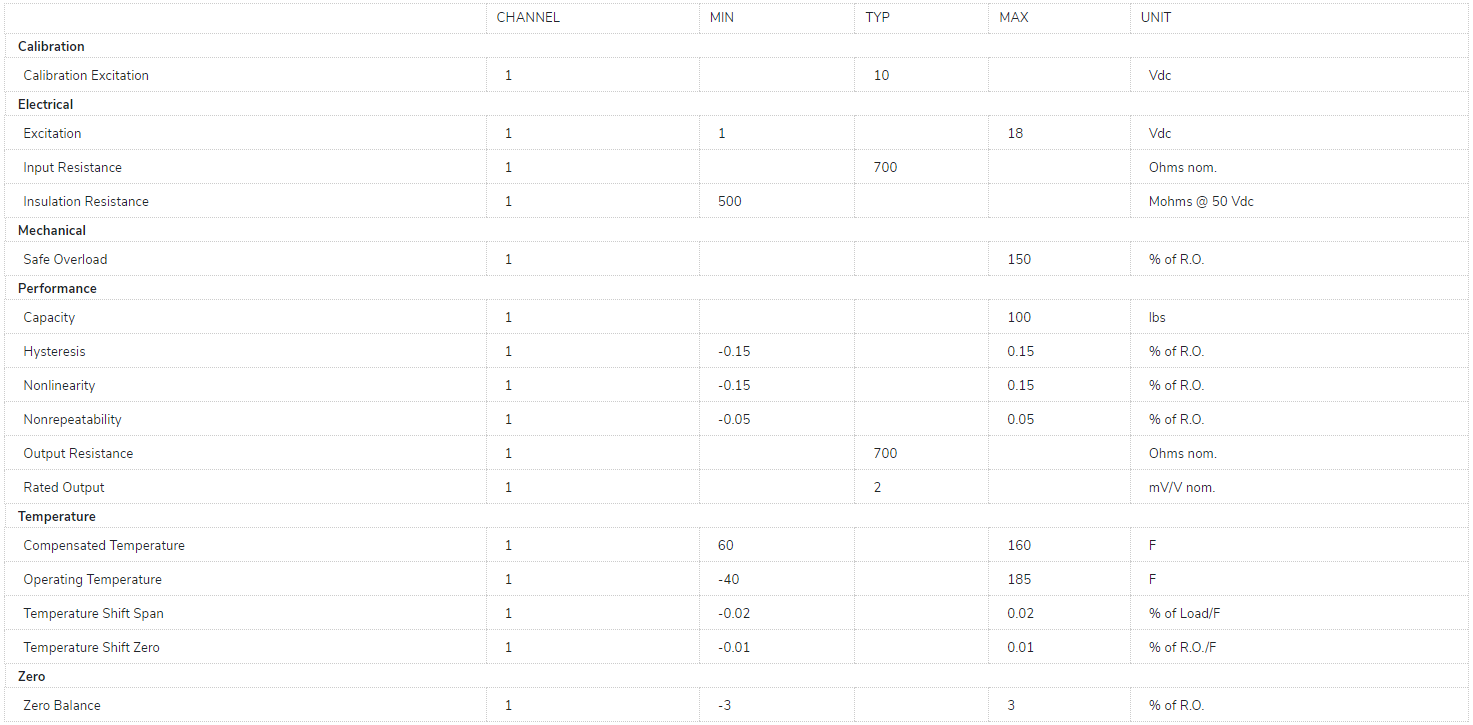

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
