홈/종합산업장비/센서/로드셀/FUTEK QLA354 Custom Load Button Load Cell

FUTEK QLA354 Custom Load Button Load Cell

QLA354 , 100 lb , Extreme High Temperature Compression Load Cell , 1800 psi (124 bar) Max Pressure , 500 F (260 C) Max Operating Temperature , Autoclavable , 3 ft Inconel Sheathed Cable with Lemo Plug (PHG.00.304)

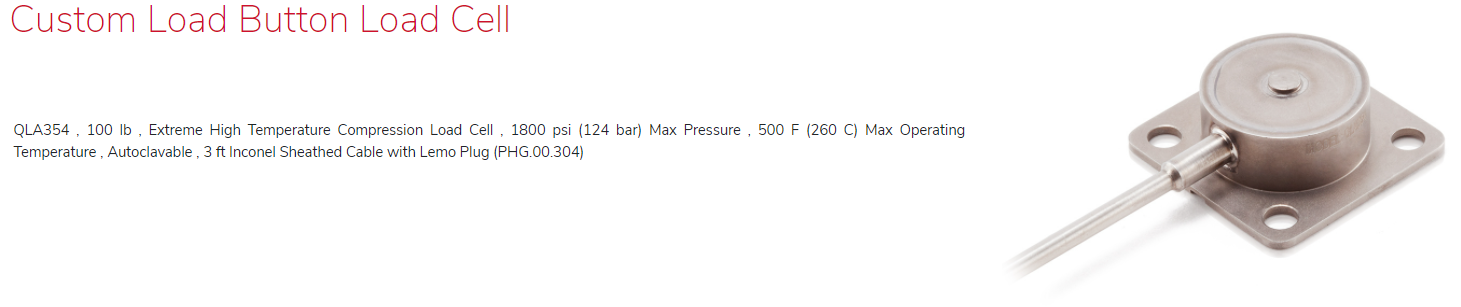

FUTEK QLA354 Custom Load Button Load Cell 이미지

QLA354 , 100 lb , Extreme High Temperature Compression Load Cell , 1800 psi (124 bar) Max Pressure , 500 F (260 C) Max Operating Temperature , Autoclavable , 3 ft Inconel Sheathed Cable with Lemo Plug (PHG.00.304)

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA354 , 100 lb , Extreme High Temperature Compression Load Cell , 1800 psi (124 bar) Max Pressure , 500 F (260 C) Max Operating Temperature , Autoclavable , 3 ft Inconel Sheathed Cable with Lemo Plug (PHG.00.304)

QSH01536

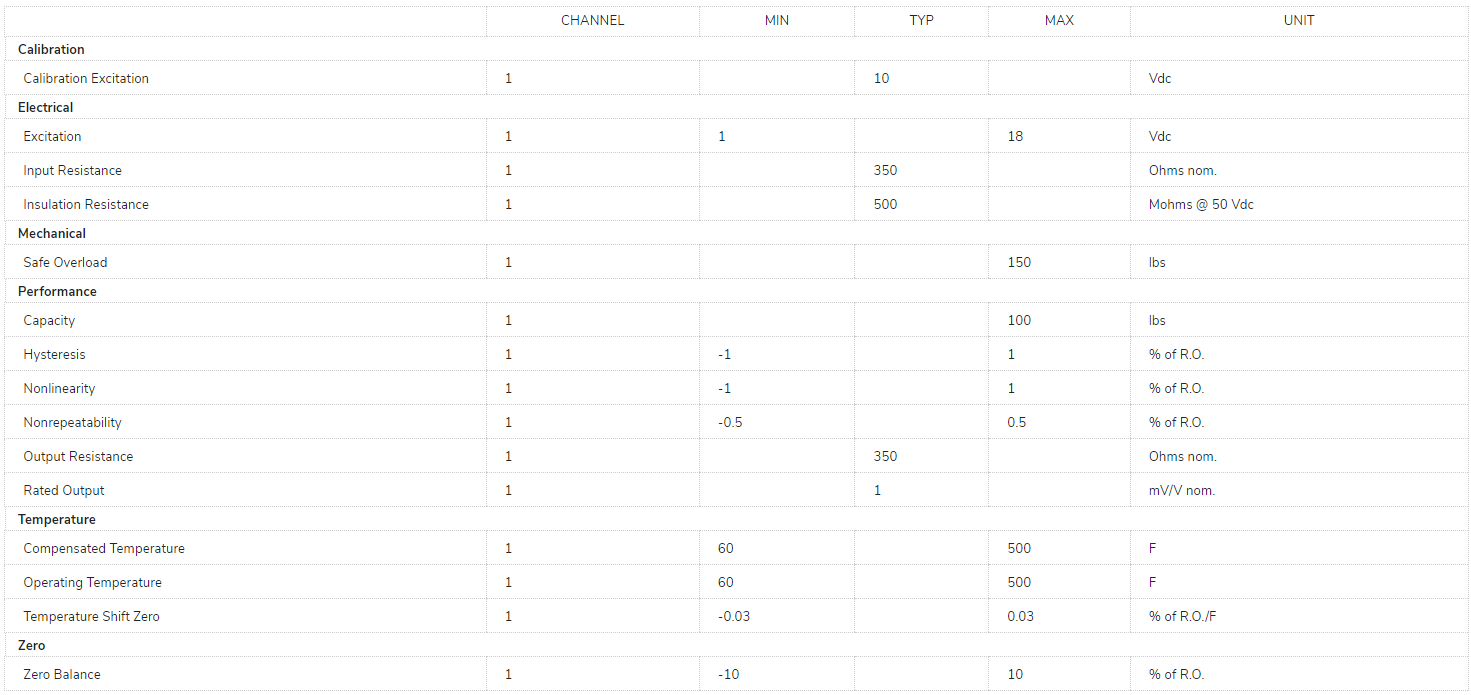

Specifications
