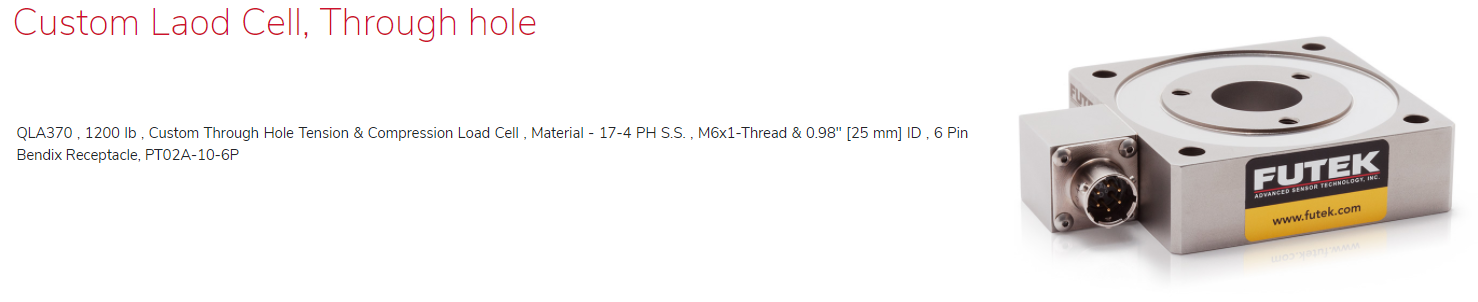

FUTEK QLA370 Custom Laod Cell, Through hole

QLA370 , 1200 lb , Custom Through Hole Tension & Compression Load Cell , Material - 17-4 PH S.S. , M6x1-Thread & 0.98" [25 mm] ID , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK QLA370 Custom Laod Cell, Through hole 이미지

QLA370 , 1200 lb , Custom Through Hole Tension & Compression Load Cell , Material - 17-4 PH S.S. , M6x1-Thread & 0.98" [25 mm] ID , 6 Pin Bendix Receptacle, PT02A-10-6P

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA370 , 1200 lb , Custom Through Hole Tension & Compression Load Cell , Material - 17-4 PH S.S. , M6x1-Thread & 0.98" [25 mm] ID , 6 Pin Bendix Receptacle, PT02A-10-6P

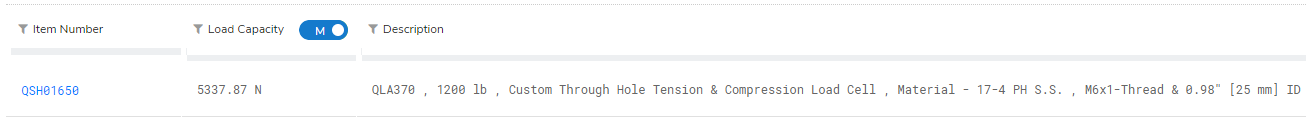

QSH01650

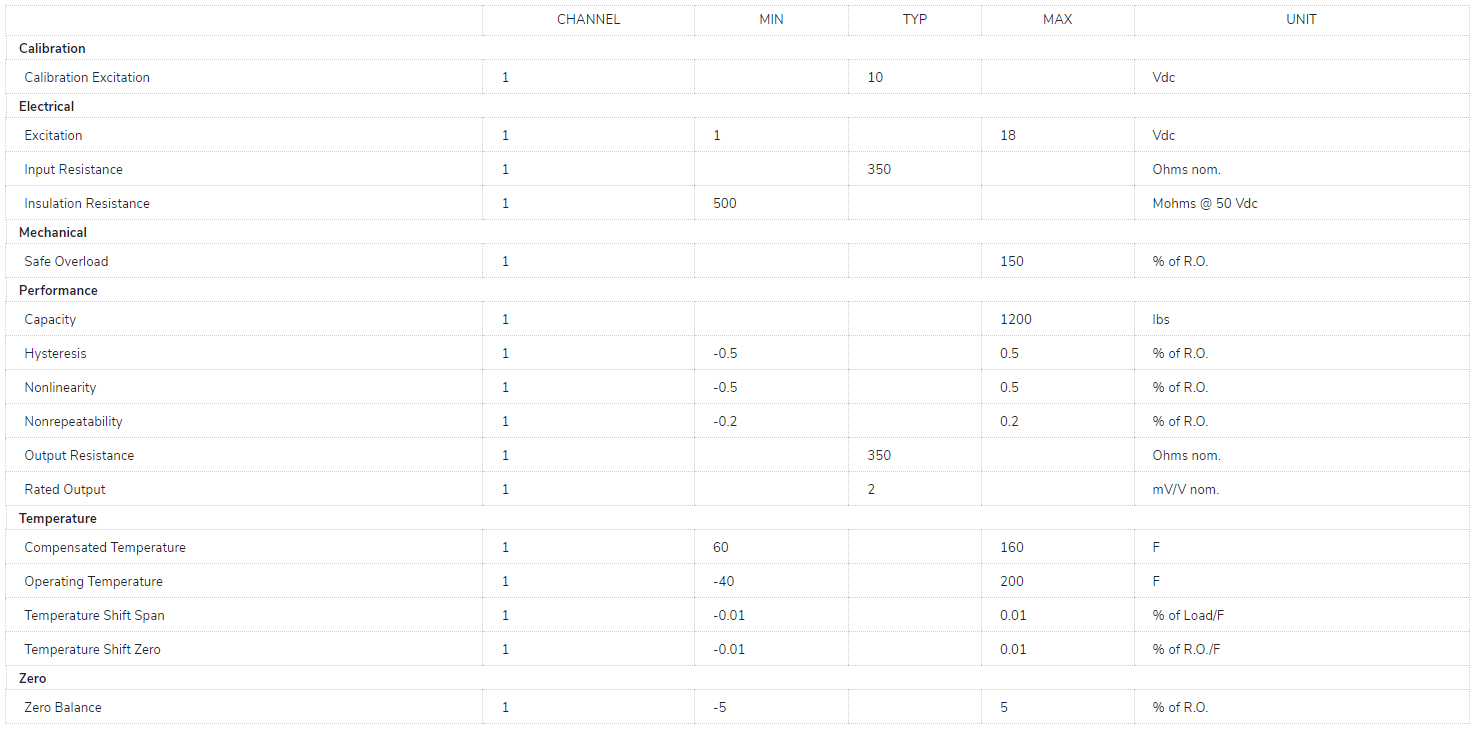

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
