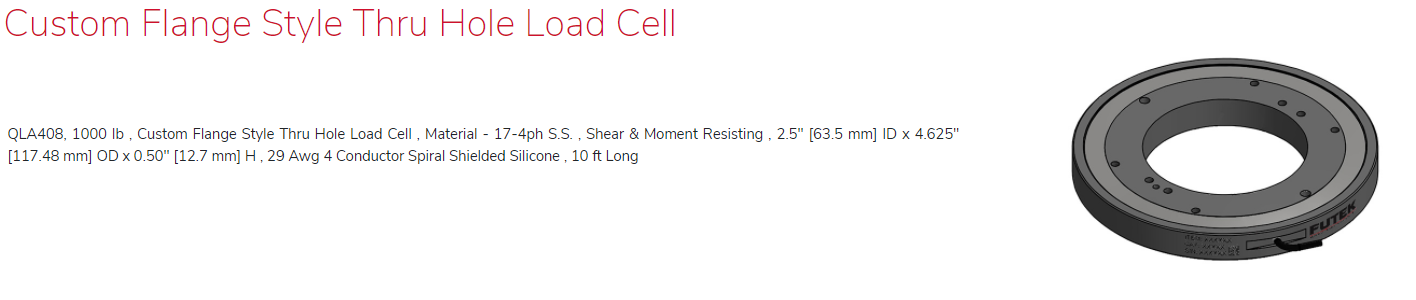

FUTEK QLA408 Custom Flange Style Thru Hole Load Cell

QLA408, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2.5" [63.5 mm] ID x 4.625" [117.48 mm] OD x 0.50" [12.7 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

FUTEK QLA408 Custom Flange Style Thru Hole Load Cell 이미지

QLA408, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2.5" [63.5 mm] ID x 4.625" [117.48 mm] OD x 0.50" [12.7 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA408, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2.5" [63.5 mm] ID x 4.625" [117.48 mm] OD x 0.50" [12.7 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

QSH01982

Description

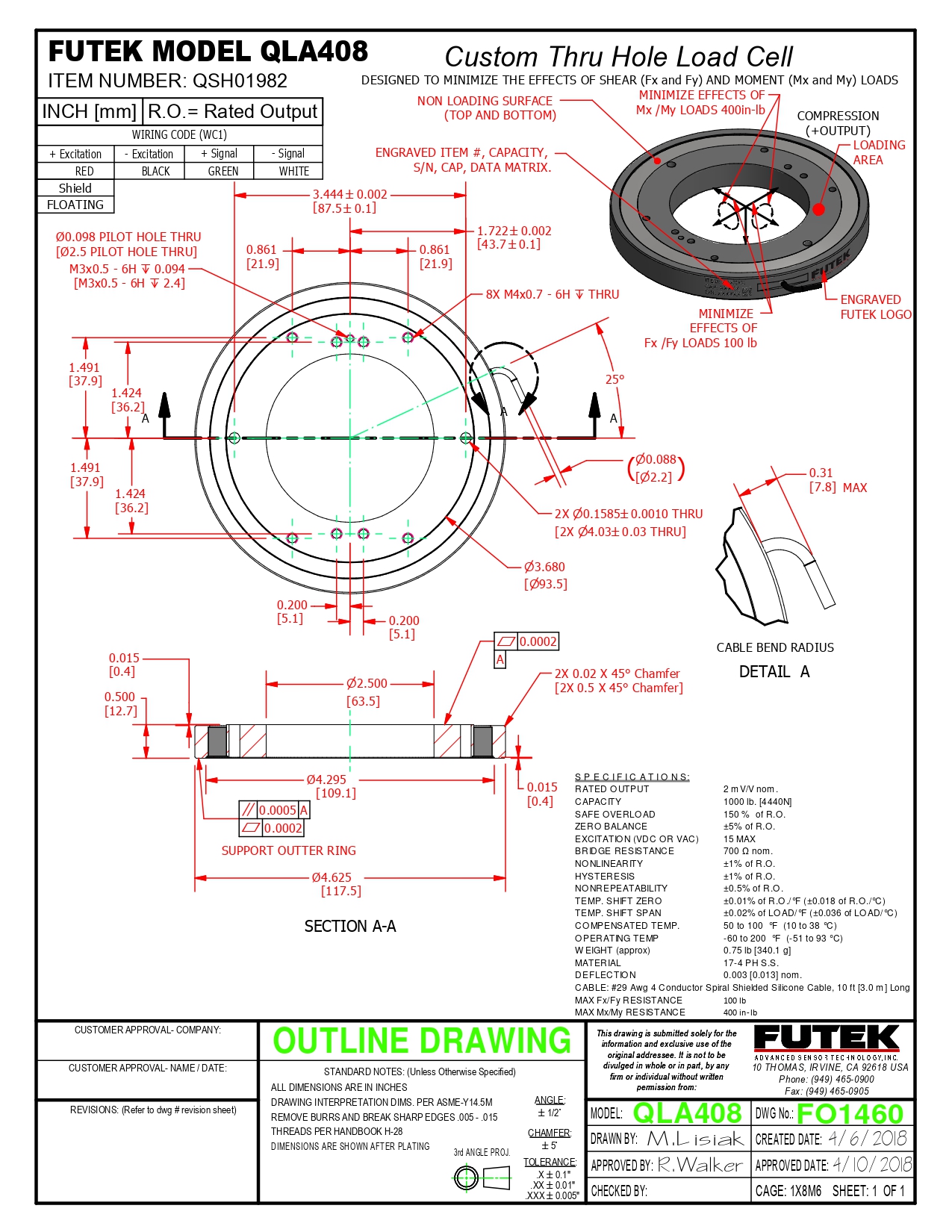

QLA408 Custom Flange Style Thru Hole Load Cell

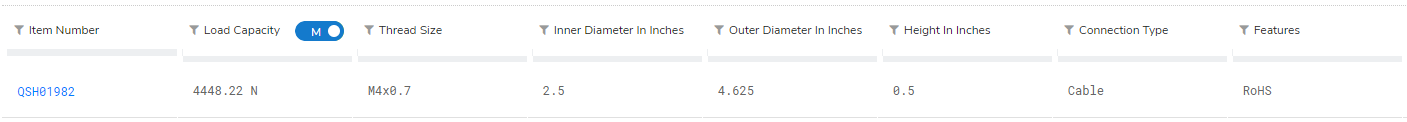

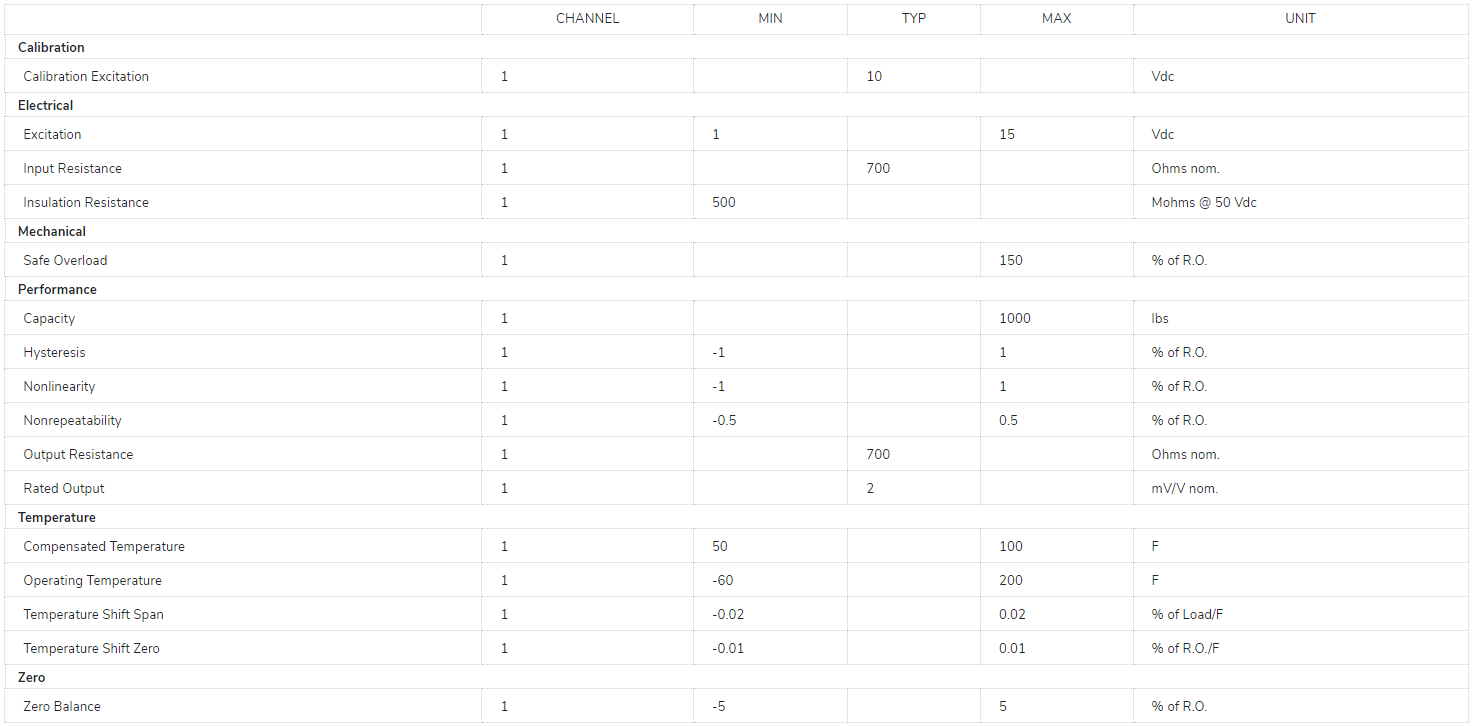

Specifications
