홈/종합산업장비/센서/로드셀/FUTEK QLA404 Custom Flange Style Thru Hole Load Cell

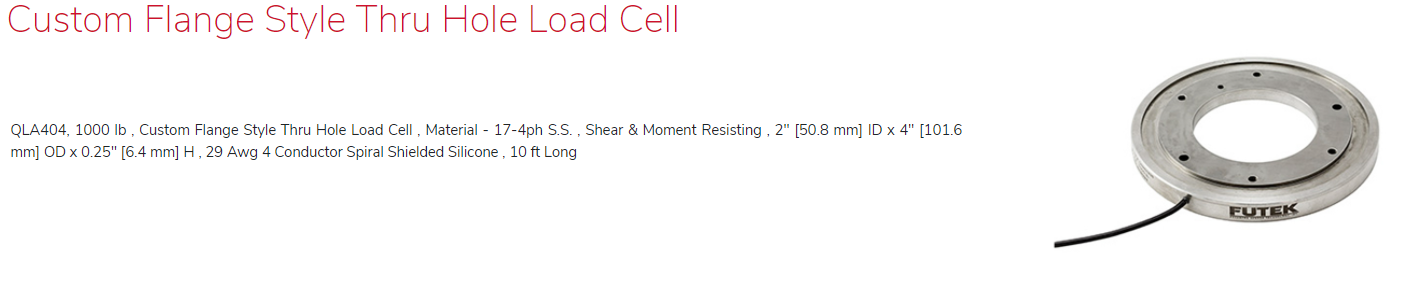

FUTEK QLA404 Custom Flange Style Thru Hole Load Cell

QLA404, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.25" [6.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

FUTEK QLA404 Custom Flange Style Thru Hole Load Cell 이미지

QLA404, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.25" [6.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA404, 1000 lb , Custom Flange Style Thru Hole Load Cell , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.25" [6.4 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long

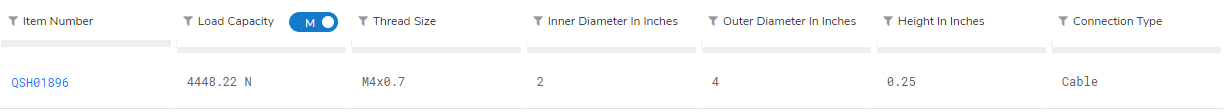

QSH01896

Description

Custom Flange Style Thru Hole Load Cell

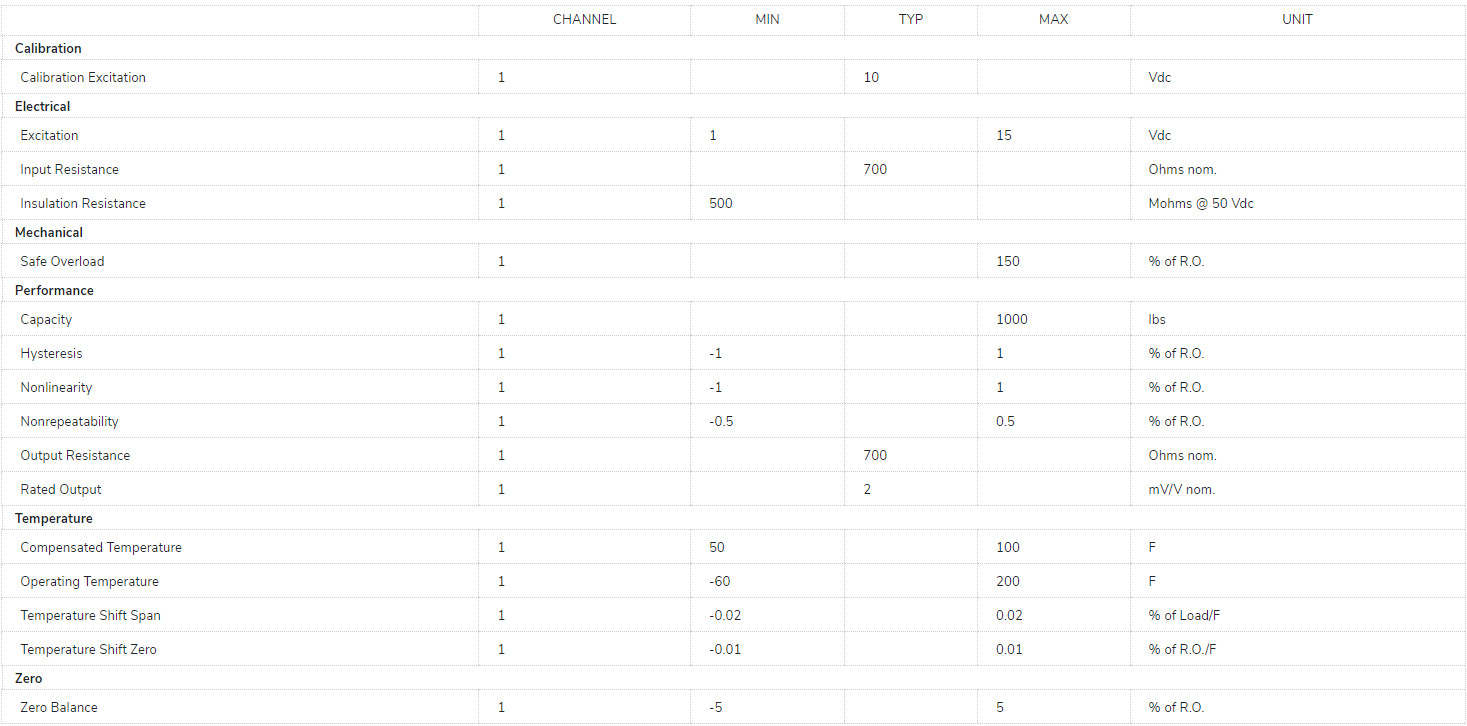

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
