홈/종합산업장비/센서/로드셀/FUTEK QLA243 Custom Dual Range Compression Load Cell

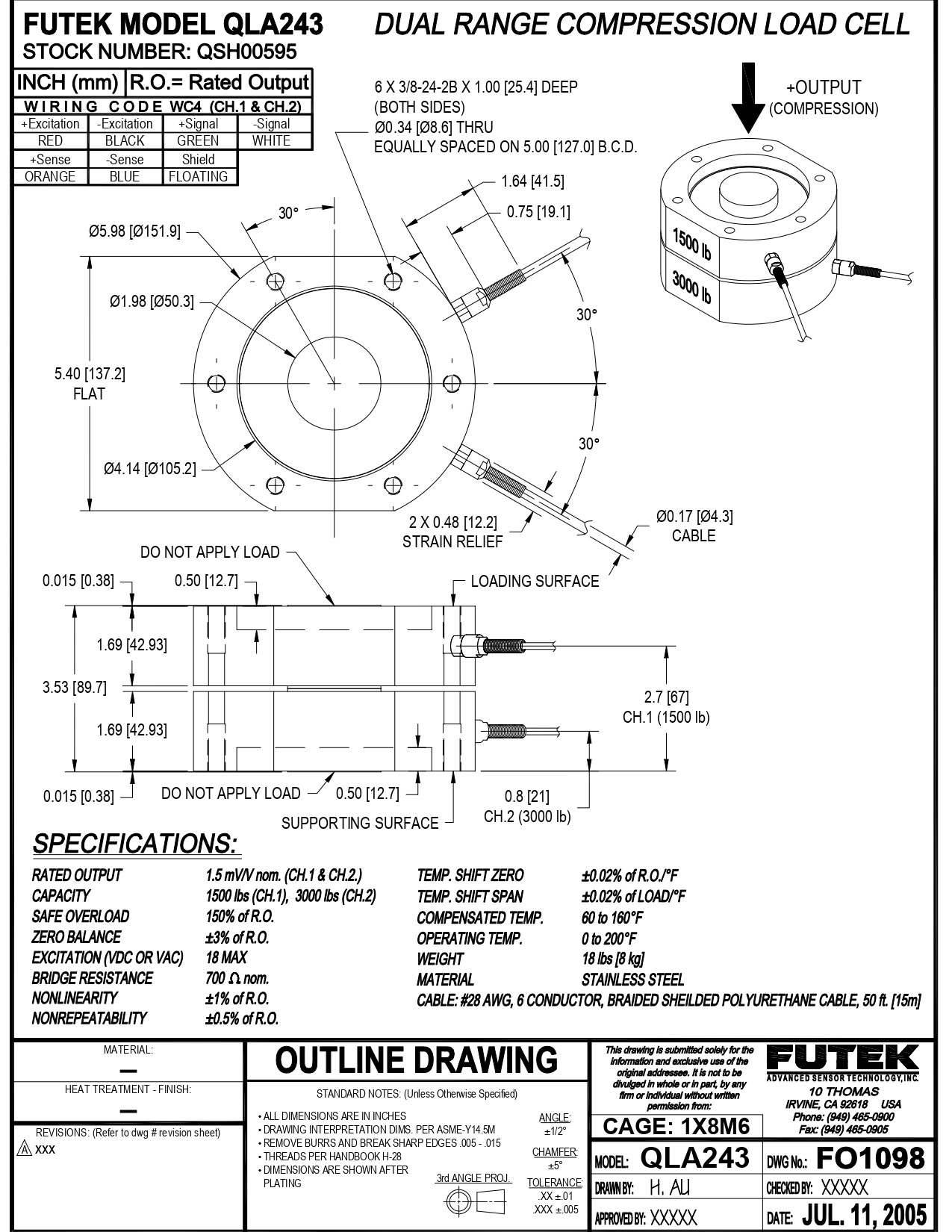

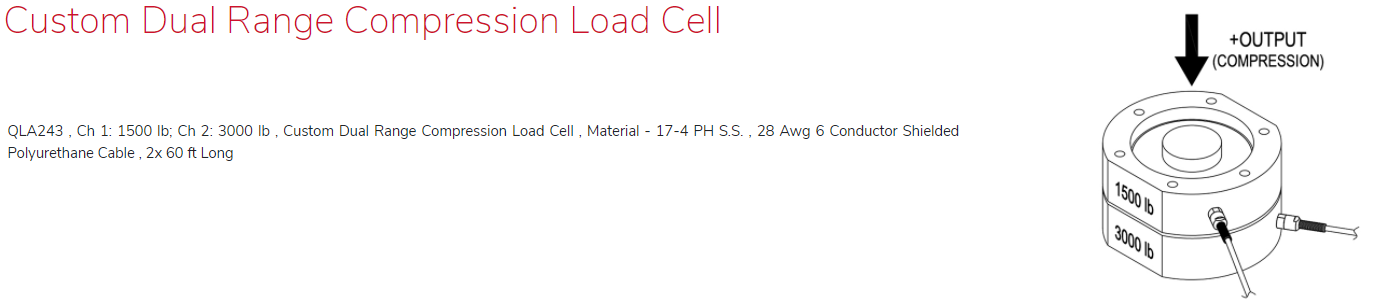

FUTEK QLA243 Custom Dual Range Compression Load Cell

QLA243 , Ch 1: 1500 lb; Ch 2: 3000 lb , Custom Dual Range Compression Load Cell , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 2x 60 ft Long

FUTEK QLA243 Custom Dual Range Compression Load Cell 이미지

QLA243 , Ch 1: 1500 lb; Ch 2: 3000 lb , Custom Dual Range Compression Load Cell , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 2x 60 ft Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA243 , Ch 1: 1500 lb; Ch 2: 3000 lb , Custom Dual Range Compression Load Cell , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 2x 60 ft Long

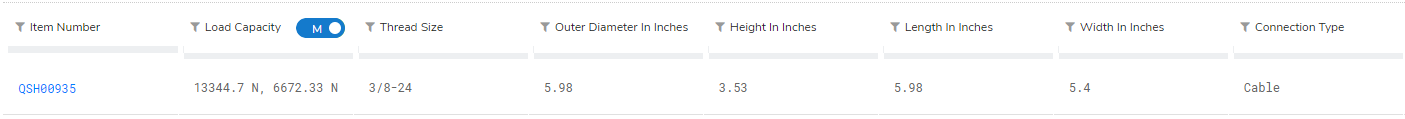

QSH00935

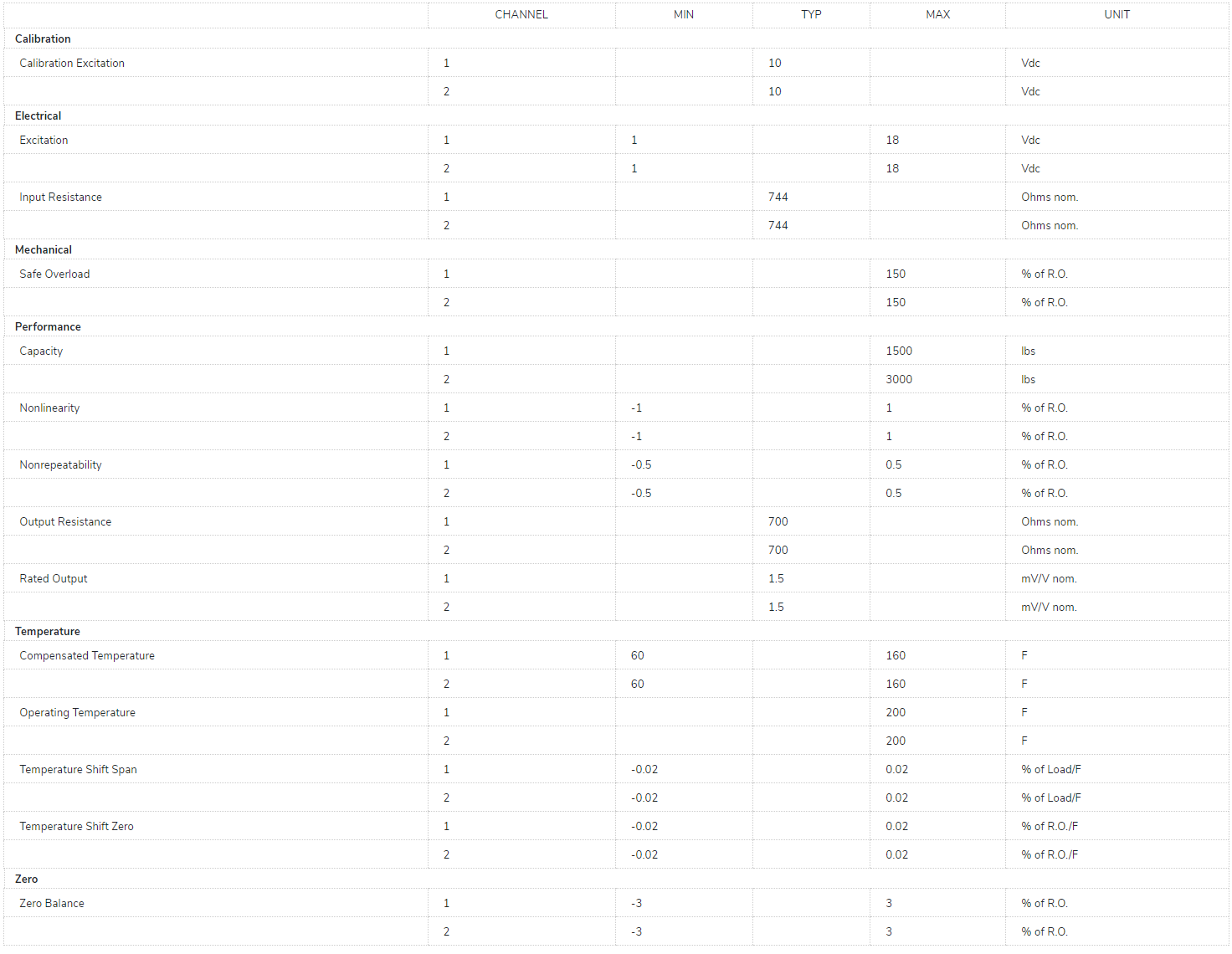

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
