FUTEK QLA352 Custom Donut Load Cell

QLA352 , 1000 lb , Custom Low Profile Donut/Through Hole/Washer Load Cell , 2.615" 66.4 mm] ID x 3.49" [88.6 mm] OD x 0.5" [3.8 mm] H , Vibration Environment , 4-20 mA Current Output , PVC Cable , 1.5 ft Long

FUTEK QLA352 Custom Donut Load Cell 이미지

QLA352 , 1000 lb , Custom Low Profile Donut/Through Hole/Washer Load Cell , 2.615" 66.4 mm] ID x 3.49" [88.6 mm] OD x 0.5" [3.8 mm] H , Vibration Environment , 4-20 mA Current Output , PVC Cable , 1.5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA352 , 1000 lb , Custom Low Profile Donut/Through Hole/Washer Load Cell , 2.615" 66.4 mm] ID x 3.49" [88.6 mm] OD x 0.5" [3.8 mm] H , Vibration Environment , 4-20 mA Current Output , PVC Cable , 1.5 ft Long

QSH01530

QSH01546

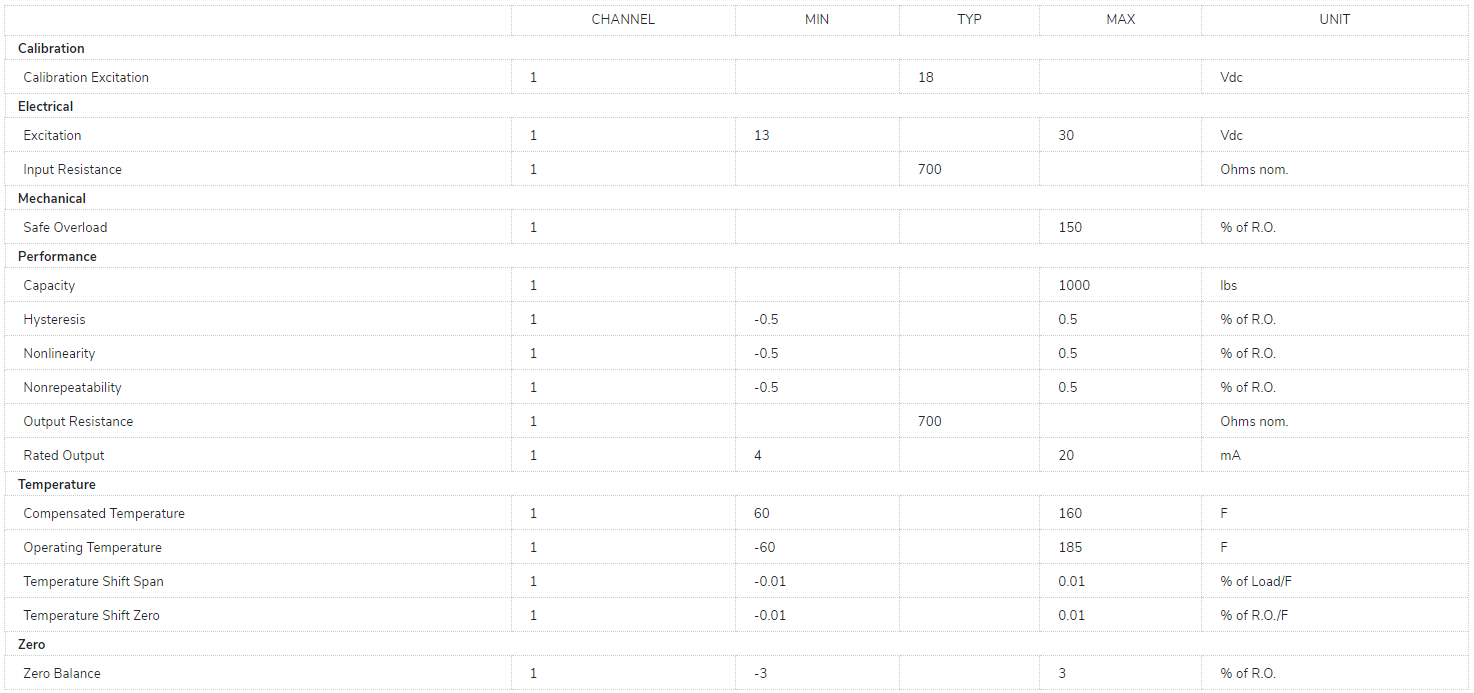

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
