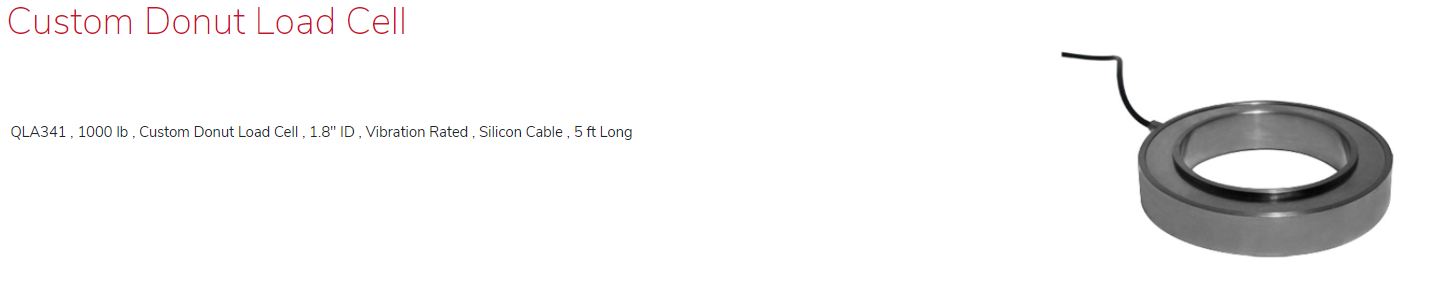

FUTEK QLA341 Custom Donut Load Cell

QLA341 , 1000 lb , Custom Donut Load Cell , 1.8" ID , Vibration Rated , Silicon Cable , 5 ft Long

FUTEK QLA341 Custom Donut Load Cell 이미지

QLA341 , 1000 lb , Custom Donut Load Cell , 1.8" ID , Vibration Rated , Silicon Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA341 , 1000 lb , Custom Donut Load Cell , 1.8" ID , Vibration Rated , Silicon Cable , 5 ft Long

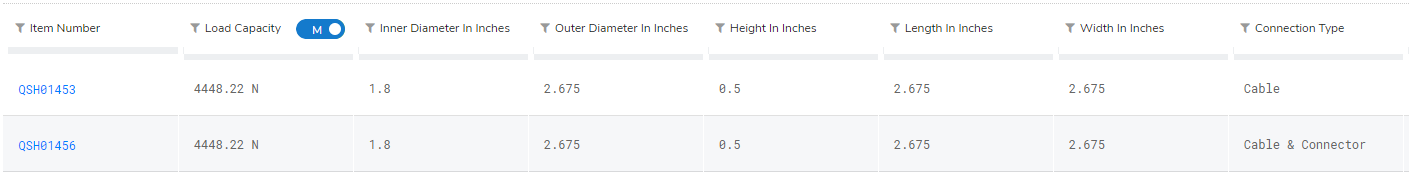

QSH01453

QSH01456

Description

Custom Donut Load Cell

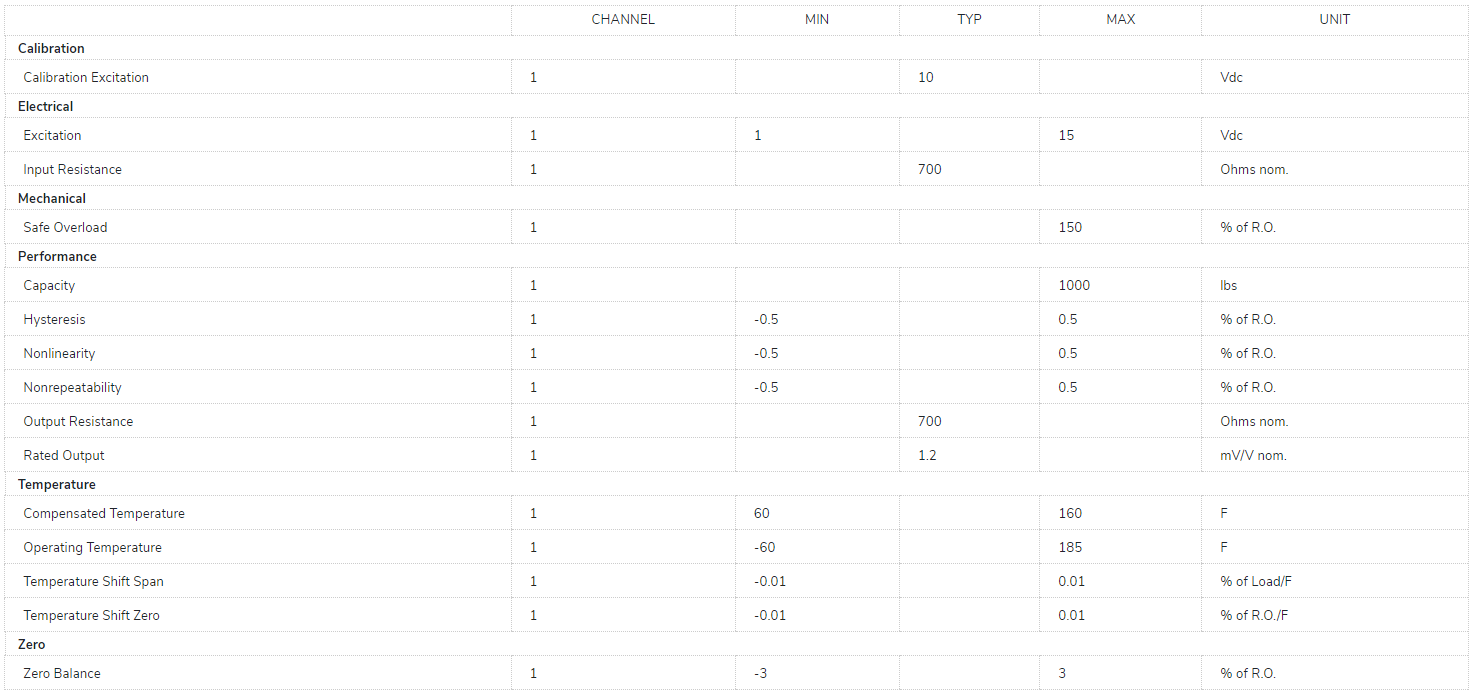

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
