industrial equipment

홈/종합산업장비/센서/로드셀/FUTEK QLA298 Custom Donut Load Cell

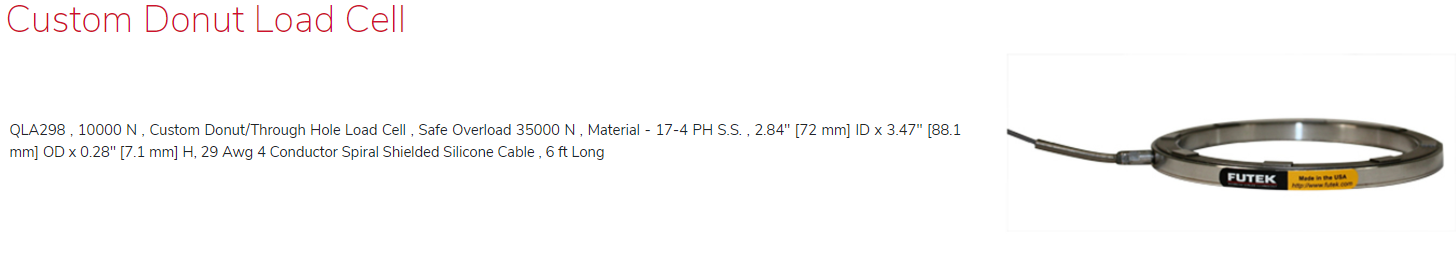

FUTEK QLA298 Custom Donut Load Cell

QLA298 , 10000 N , Custom Donut/Through Hole Load Cell , Safe Overload 35000 N , Material - 17-4 PH S.S. , 2.84" [72 mm] ID x 3.47" [88.1 mm] OD x 0.28" [7.1 mm] H, 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 ft Long

FUTEK QLA298 Custom Donut Load Cell 이미지

QLA298 , 10000 N , Custom Donut/Through Hole Load Cell , Safe Overload 35000 N , Material - 17-4 PH S.S. , 2.84" [72 mm] ID x 3.47" [88.1 mm] OD x 0.28" [7.1 mm] H, 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA298 , 10000 N , Custom Donut/Through Hole Load Cell , Safe Overload 35000 N , Material - 17-4 PH S.S. , 2.84" [72 mm] ID x 3.47" [88.1 mm] OD x 0.28" [7.1 mm] H, 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 ft Long

QSH01130

Description

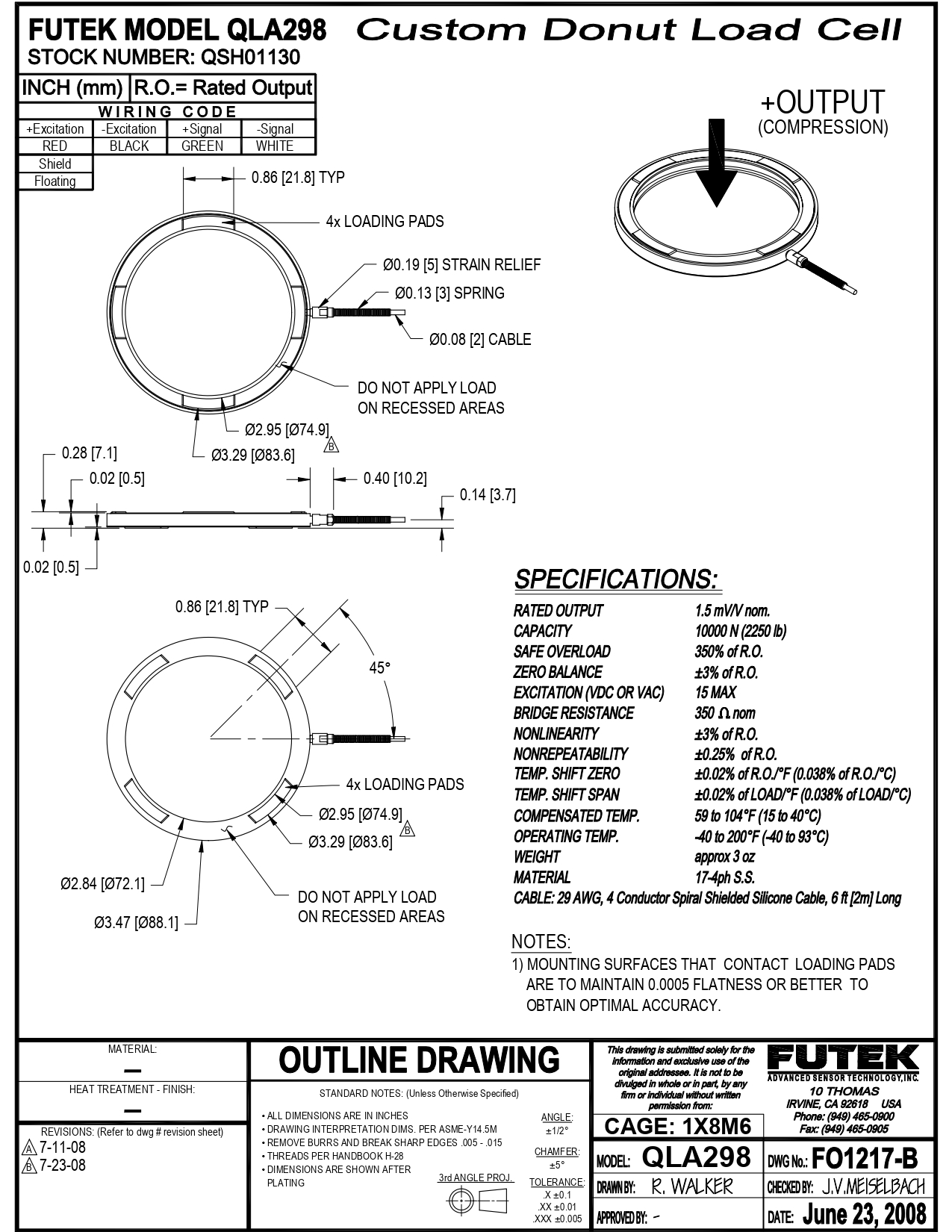

QLA298 Custom Donut Load Cell

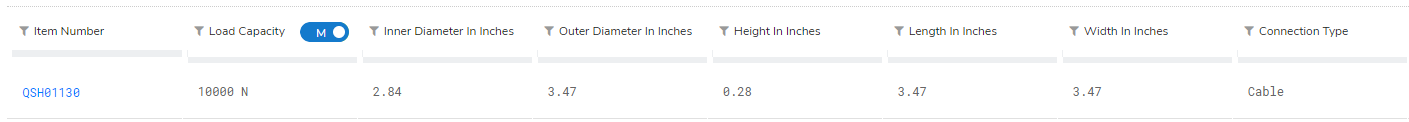

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
