FUTEK QLA293 Custom Donut Load Cell

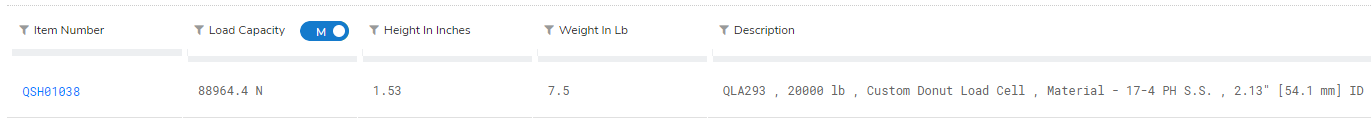

QLA293 , 20000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 2.13" [54.1 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

FUTEK QLA293 Custom Donut Load Cell 이미지

QLA293 , 20000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 2.13" [54.1 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA293 , 20000 lb , Custom Donut Load Cell , Material - 17-4 PH S.S. , 2.13" [54.1 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

QSH01038

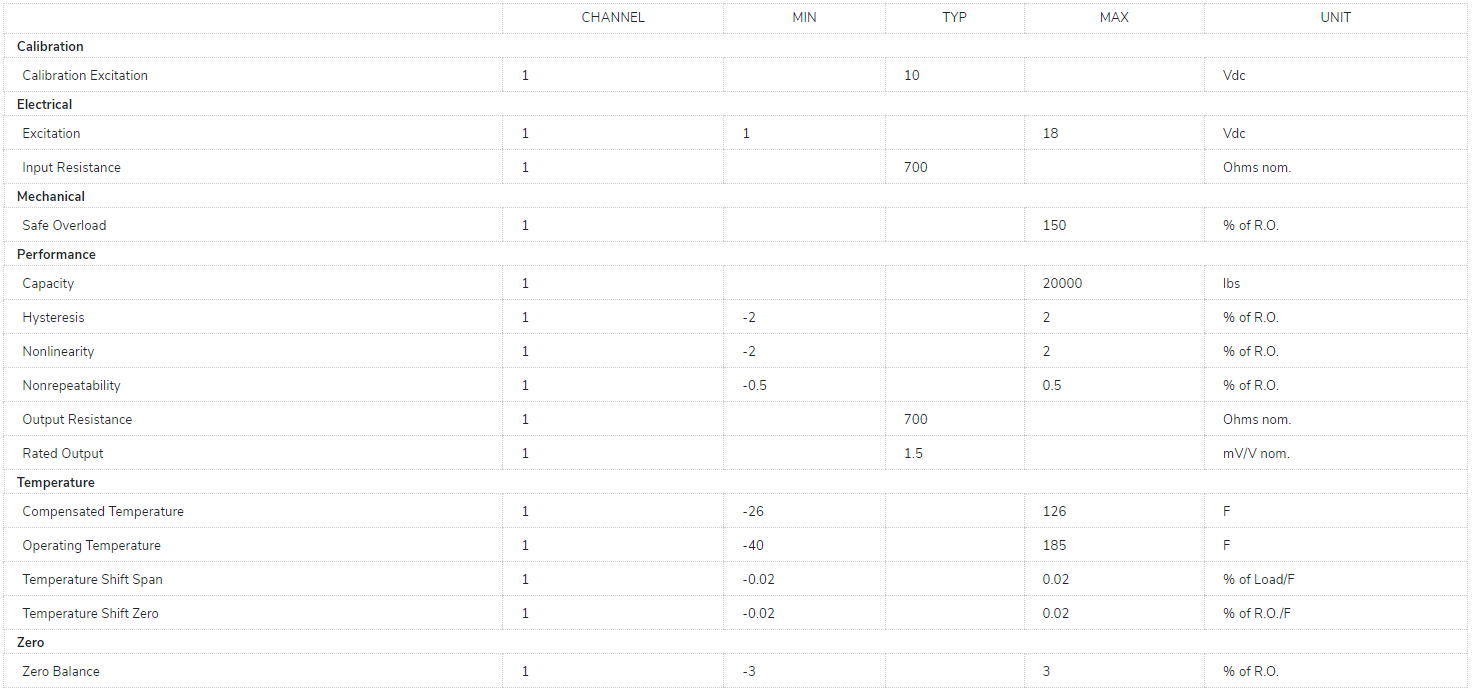

Specifications
