FUTEK QLA292 Custom Donut Load Cell

QLA292 , 25000 lb , Custom Donut Load Cell , Water Resistant , Material - 17-4 PH S.S. , 3.25" [82.6 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01024-A)

FUTEK QLA292 Custom Donut Load Cell 이미지

QLA292 , 25000 lb , Custom Donut Load Cell , Water Resistant , Material - 17-4 PH S.S. , 3.25" [82.6 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01024-A)

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA292 , 25000 lb , Custom Donut Load Cell , Water Resistant , Material - 17-4 PH S.S. , 3.25" [82.6 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long (Supersedes QSH01024-A)

QSH01203

Description

Custom Donut Load Cell

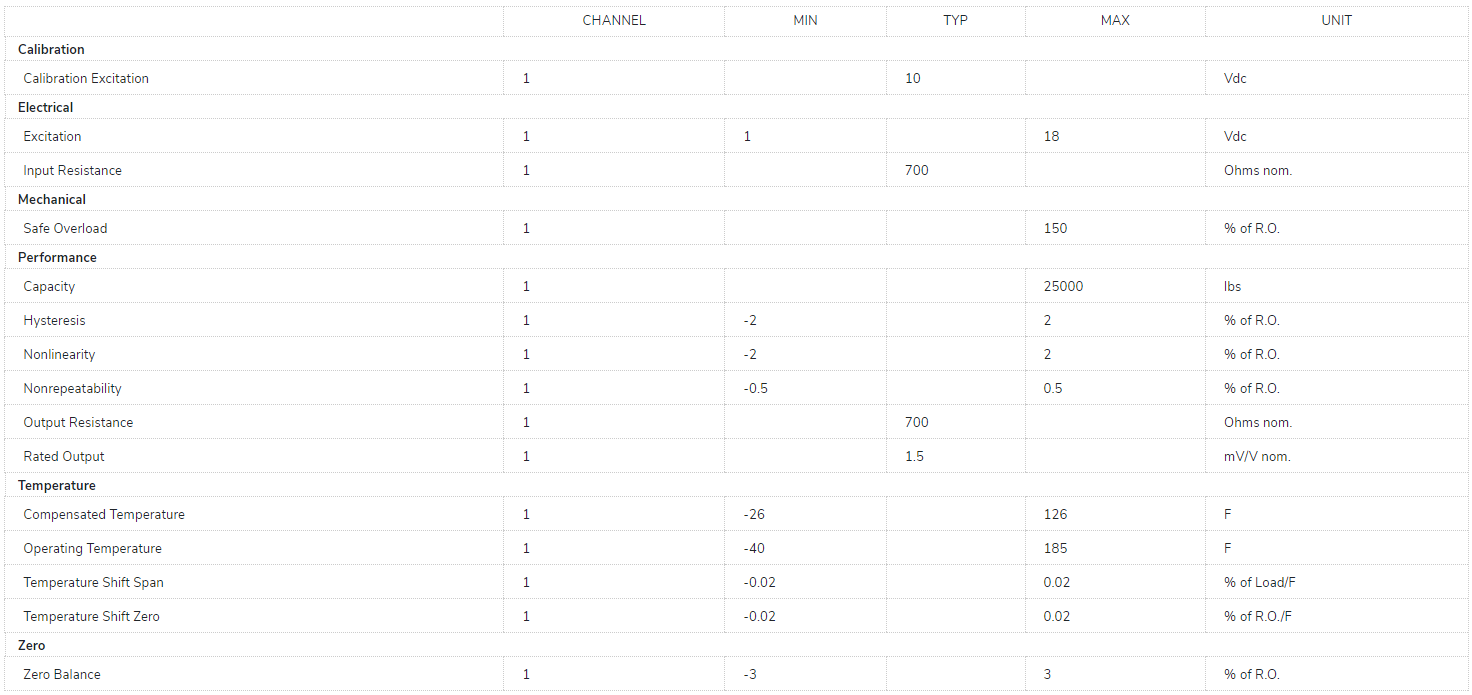

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
