홈/종합산업장비/센서/로드셀/FUTEK QLA246 Custom Cryogenic Load Cell

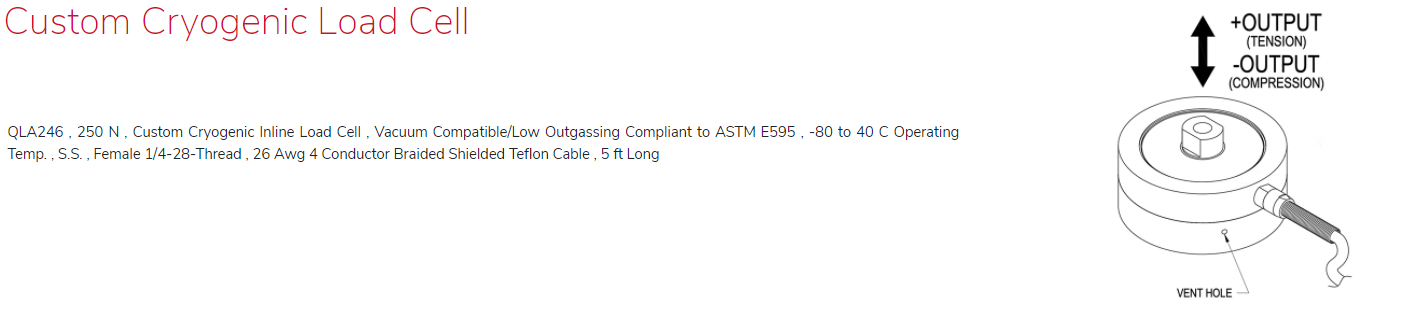

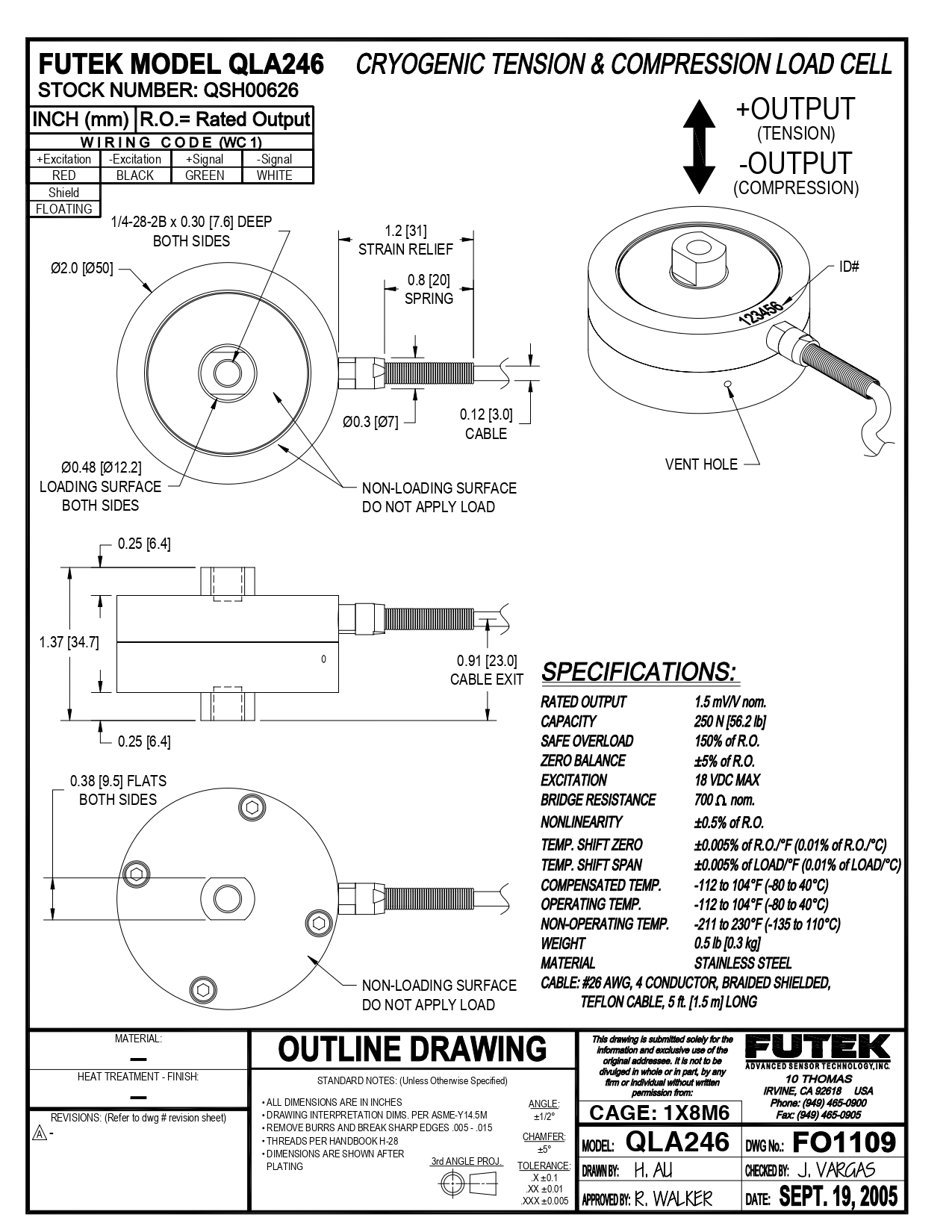

FUTEK QLA246 Custom Cryogenic Load Cell

QLA246 , 250 N , Custom Cryogenic Inline Load Cell , Vacuum Compatible/Low Outgassing Compliant to ASTM E595 , -80 to 40 C Operating Temp. , S.S. , Female 1/4-28-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

FUTEK QLA246 Custom Cryogenic Load Cell 이미지

QLA246 , 250 N , Custom Cryogenic Inline Load Cell , Vacuum Compatible/Low Outgassing Compliant to ASTM E595 , -80 to 40 C Operating Temp. , S.S. , Female 1/4-28-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA246 , 250 N , Custom Cryogenic Inline Load Cell , Vacuum Compatible/Low Outgassing Compliant to ASTM E595 , -80 to 40 C Operating Temp. , S.S. , Female 1/4-28-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

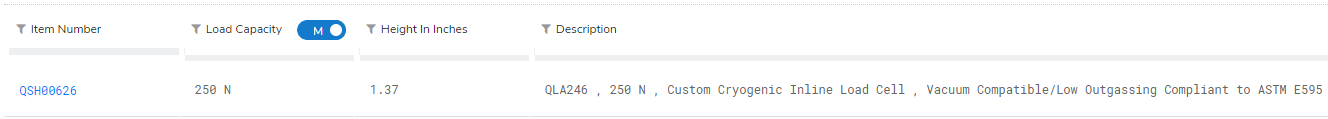

QSH00626

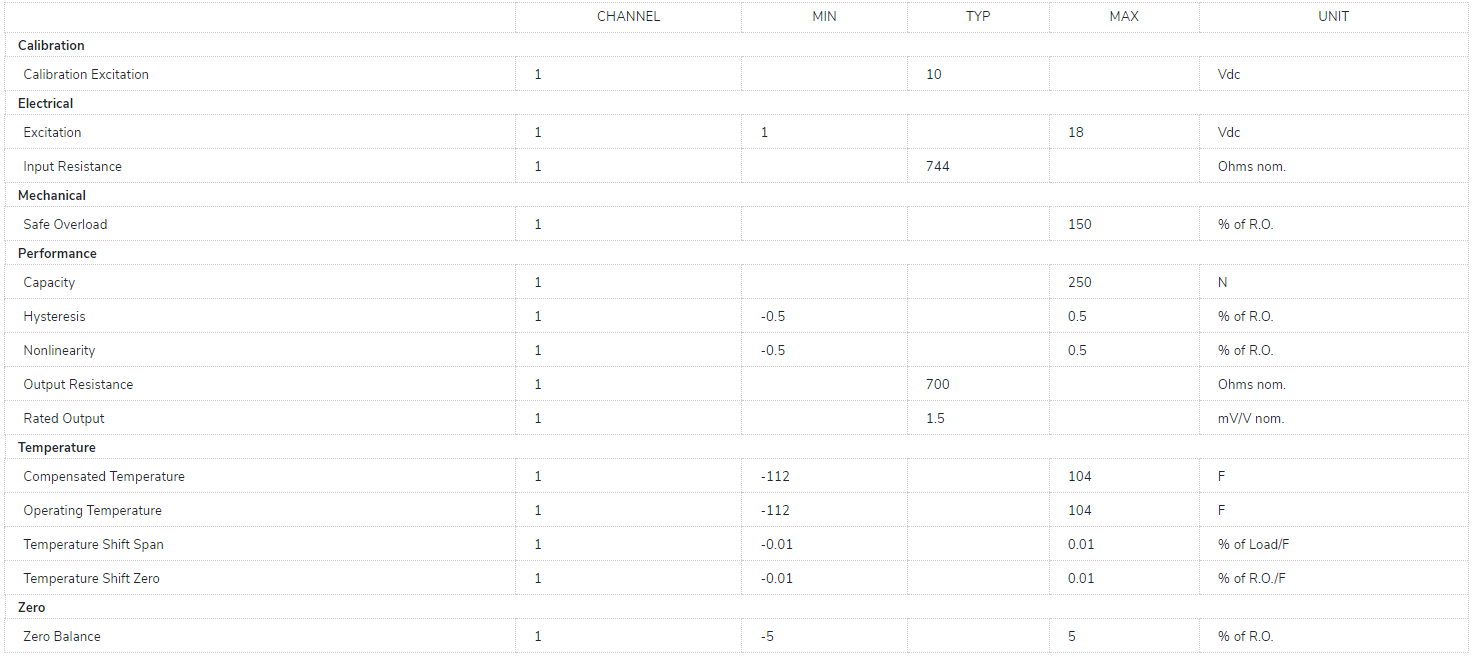

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
