industrial equipment

홈/종합산업장비/센서/로드셀/FUTEK QLA374 Custom Compression Pancake Load Cell

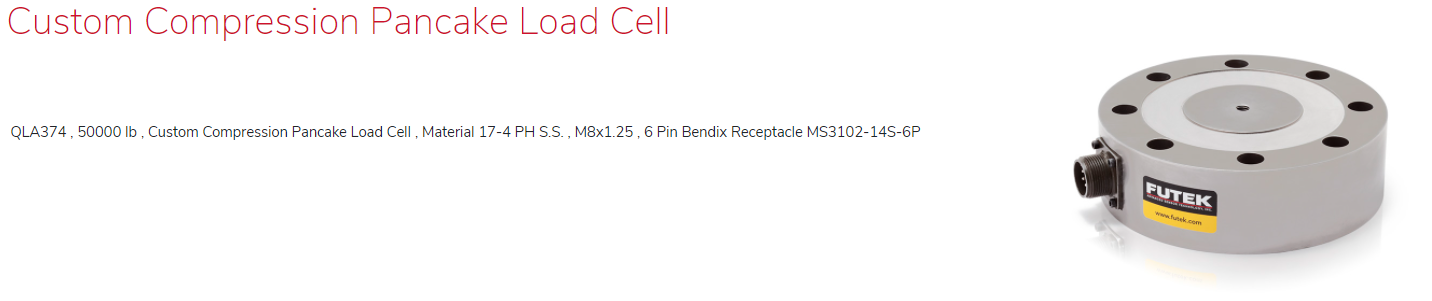

FUTEK QLA374 Custom Compression Pancake Load Cell

QLA374 , 50000 lb , Custom Compression Pancake Load Cell , Material 17-4 PH S.S. , M8x1.25 , 6 Pin Bendix Receptacle MS3102-14S-6P

FUTEK QLA374 Custom Compression Pancake Load Cell 이미지

QLA374 , 50000 lb , Custom Compression Pancake Load Cell , Material 17-4 PH S.S. , M8x1.25 , 6 Pin Bendix Receptacle MS3102-14S-6P

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA374 , 50000 lb , Custom Compression Pancake Load Cell , Material 17-4 PH S.S. , M8x1.25 , 6 Pin Bendix Receptacle MS3102-14S-6P

QSH01670

Description

QLA374 Custom Compression Pancake Load Cell

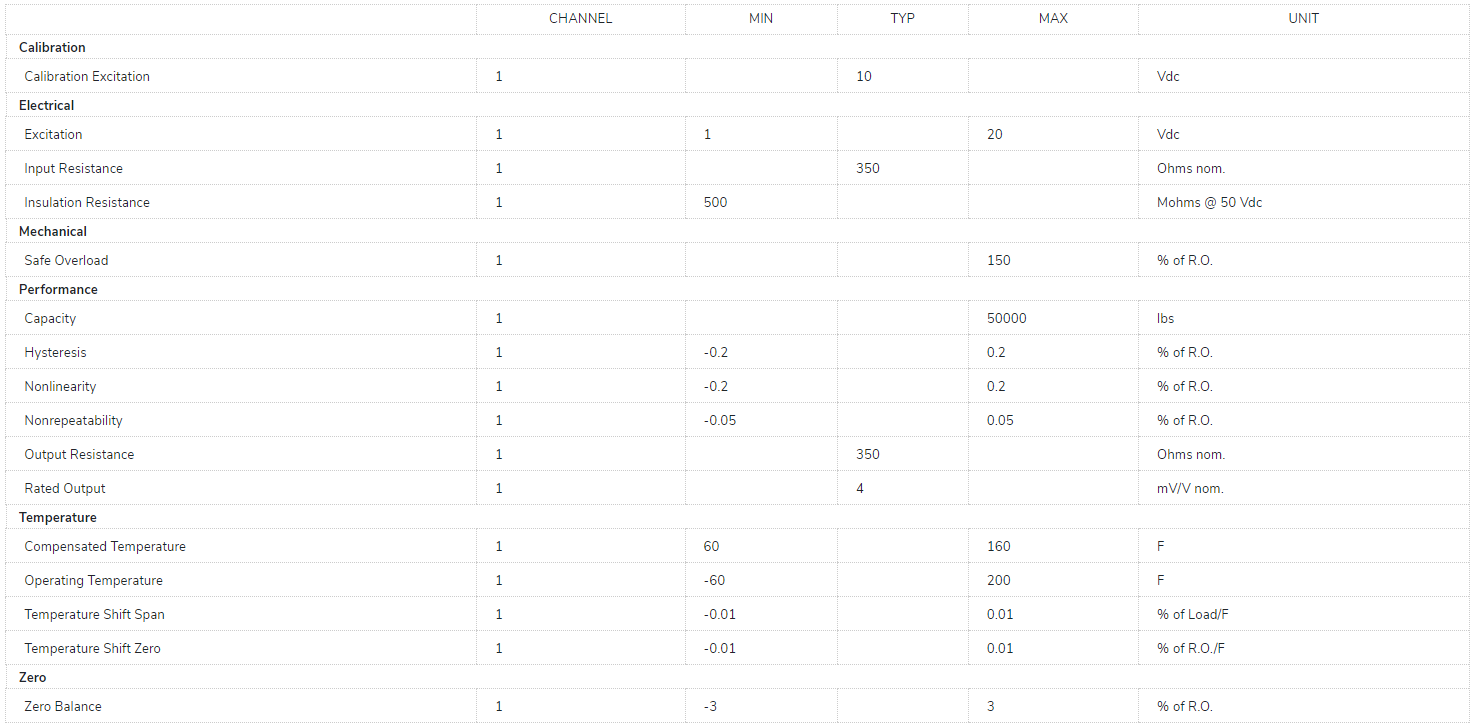

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
