홈/종합산업장비/센서/로드셀/FUTEK QLA288 Custom Compression Load Cell

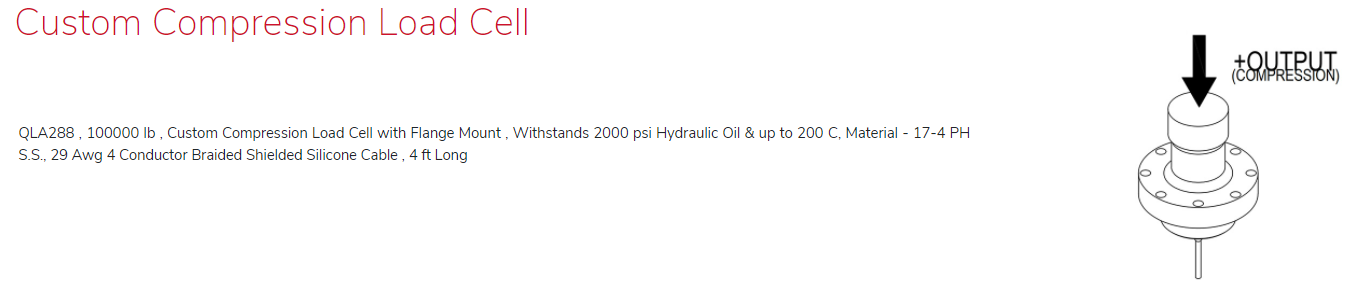

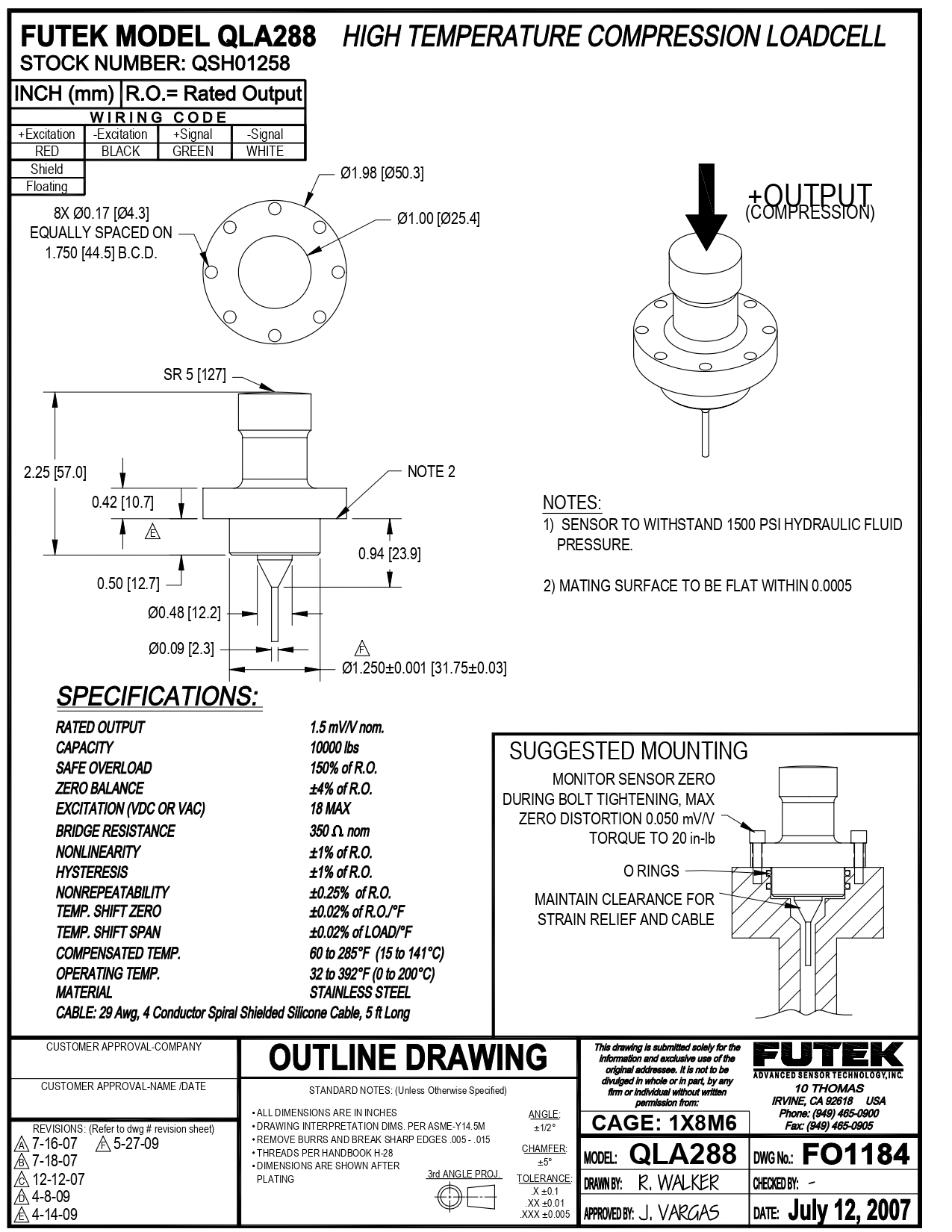

FUTEK QLA288 Custom Compression Load Cell

QLA288 , 100000 lb , Custom Compression Load Cell with Flange Mount , Withstands 2000 psi Hydraulic Oil & up to 200 C, Material - 17-4 PH S.S., 29 Awg 4 Conductor Braided Shielded Silicone Cable , 4 ft Long

FUTEK QLA288 Custom Compression Load Cell 이미지

QLA288 , 100000 lb , Custom Compression Load Cell with Flange Mount , Withstands 2000 psi Hydraulic Oil & up to 200 C, Material - 17-4 PH S.S., 29 Awg 4 Conductor Braided Shielded Silicone Cable , 4 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA288 , 100000 lb , Custom Compression Load Cell with Flange Mount , Withstands 2000 psi Hydraulic Oil & up to 200 C, Material - 17-4 PH S.S., 29 Awg 4 Conductor Braided Shielded Silicone Cable , 4 ft Long

QSH01259

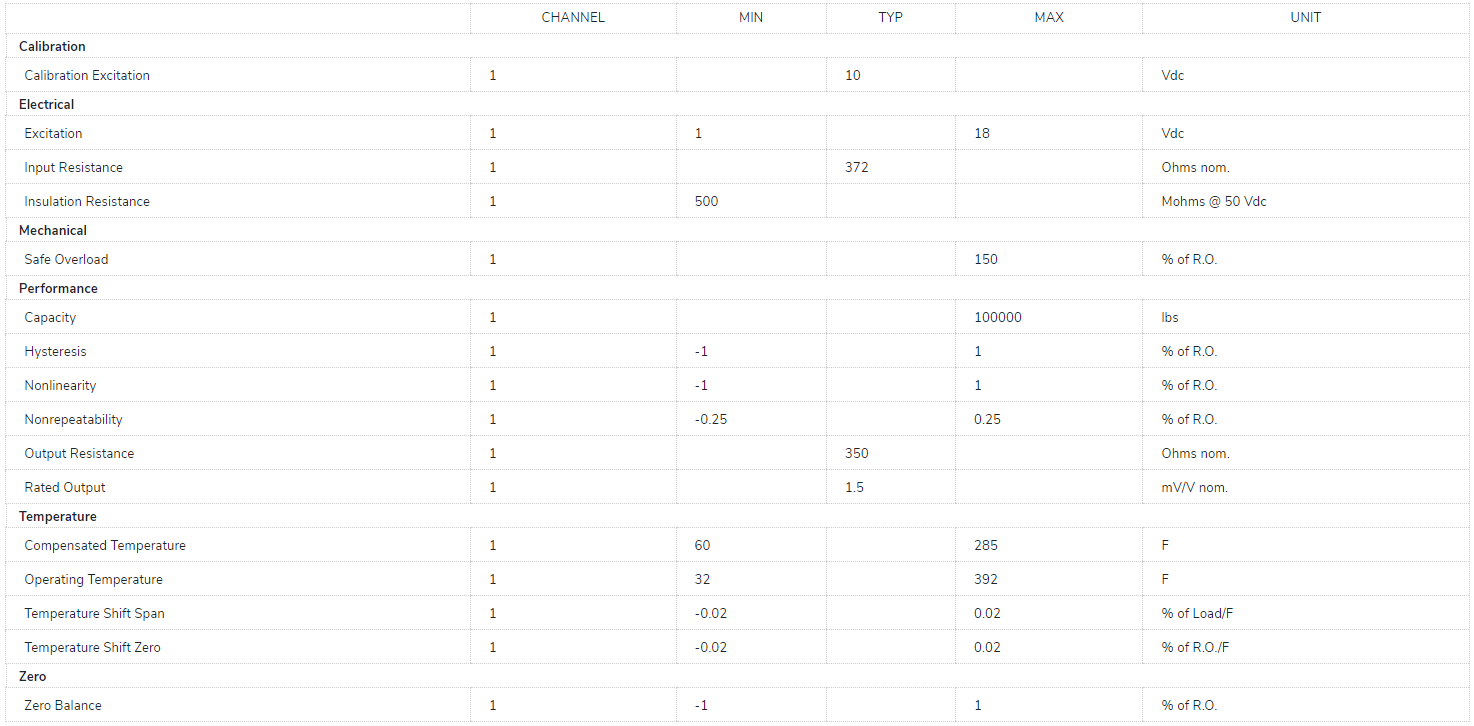

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
