홈/종합산업장비/센서/로드셀/FUTEK QLA267 Custom Compression Load Cell

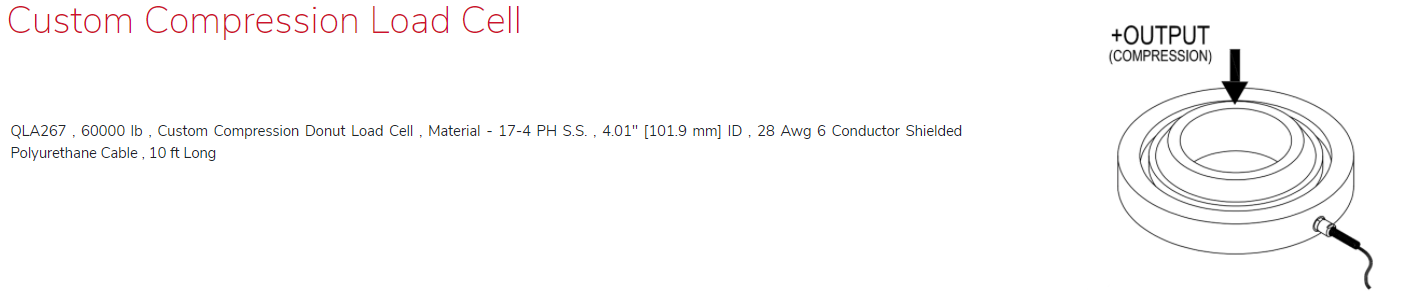

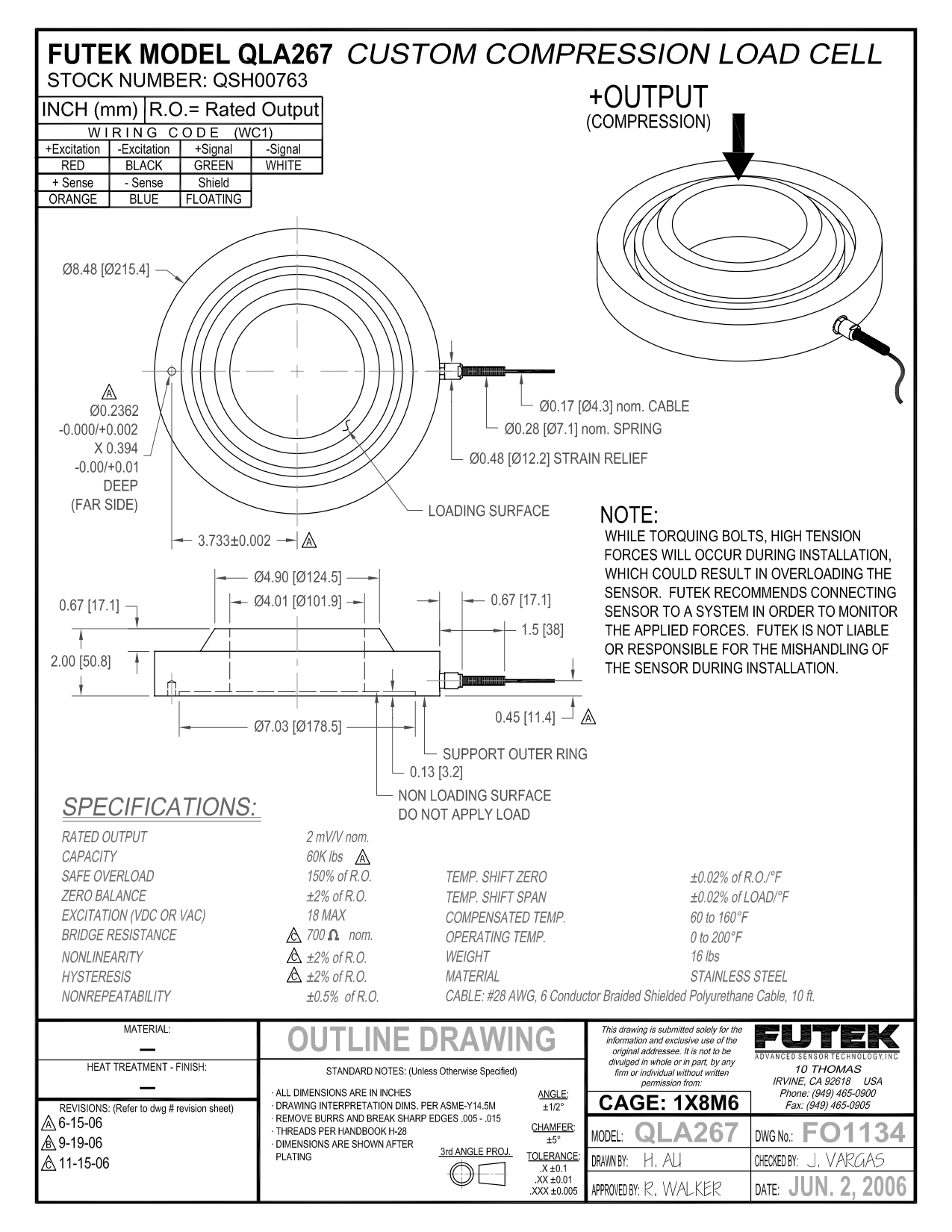

FUTEK QLA267 Custom Compression Load Cell

QLA267 , 60000 lb , Custom Compression Donut Load Cell , Material - 17-4 PH S.S. , 4.01" [101.9 mm] ID , 28 Awg 6 Conductor Shielded Polyurethane Cable , 10 ft Long

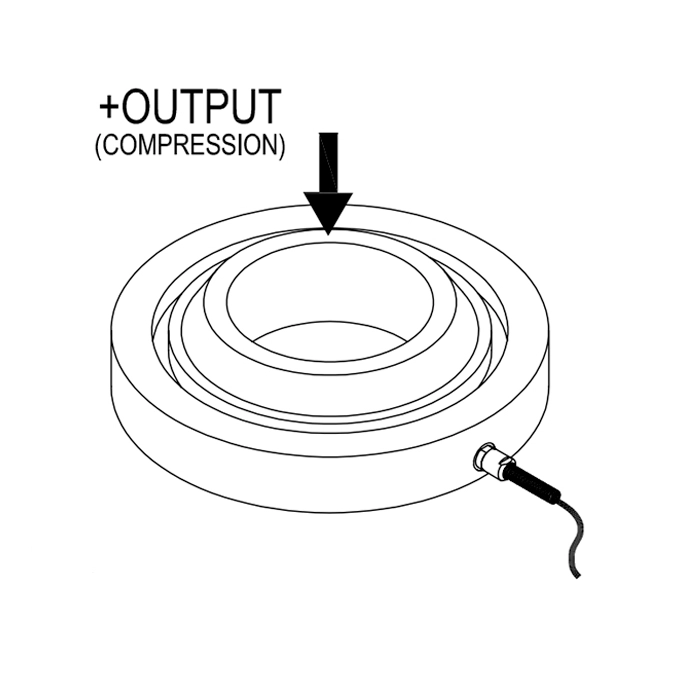

FUTEK QLA267 Custom Compression Load Cell 이미지

QLA267 , 60000 lb , Custom Compression Donut Load Cell , Material - 17-4 PH S.S. , 4.01" [101.9 mm] ID , 28 Awg 6 Conductor Shielded Polyurethane Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA267 , 60000 lb , Custom Compression Donut Load Cell , Material - 17-4 PH S.S. , 4.01" [101.9 mm] ID , 28 Awg 6 Conductor Shielded Polyurethane Cable , 10 ft Long

QSH00763

Description

QLA267 Custom Compression Load Cell

Z

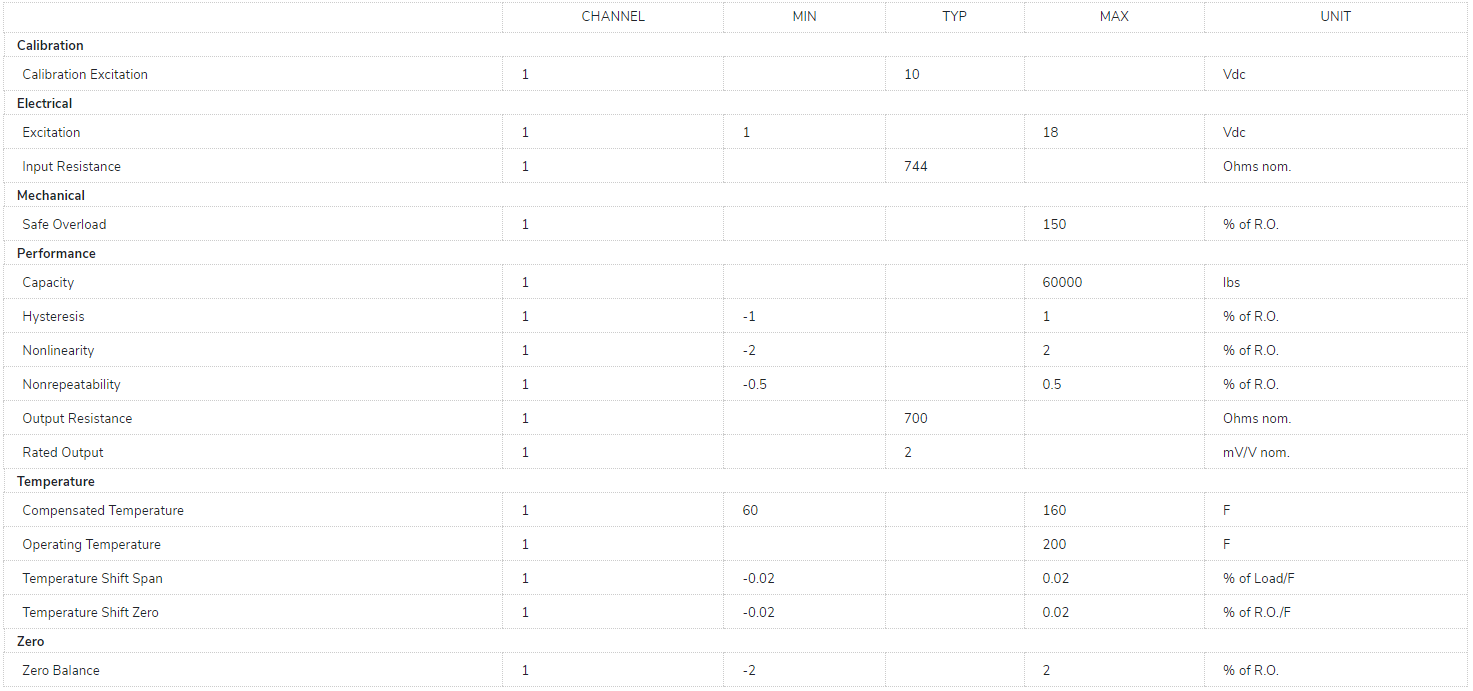

Specifications
