FUTEK QLA371 Custom Compression Donut Load Cell

QLA371, 5000 lb, Custom Compression Donut Load Cell, Material - 17-4 PH S.S., 5.68" OD x 4.25" [108 mm] ID, 24 Awg 4 Conductor Braided Shielded Teflon Cable , 2 inch Long to 4 Pin Lemo PHG.0B.304.CLLD (CC4)

FUTEK QLA371 Custom Compression Donut Load Cell 이미지

QLA371, 5000 lb, Custom Compression Donut Load Cell, Material - 17-4 PH S.S., 5.68" OD x 4.25" [108 mm] ID, 24 Awg 4 Conductor Braided Shielded Teflon Cable , 2 inch Long to 4 Pin Lemo PHG.0B.304.CLLD (CC4)

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA371, 5000 lb, Custom Compression Donut Load Cell, Material - 17-4 PH S.S., 5.68" OD x 4.25" [108 mm] ID, 24 Awg 4 Conductor Braided Shielded Teflon Cable , 2 inch Long to 4 Pin Lemo PHG.0B.304.CLLD (CC4)

QSH00659

Description

QLA371 Custom Compression Donut Load Cell

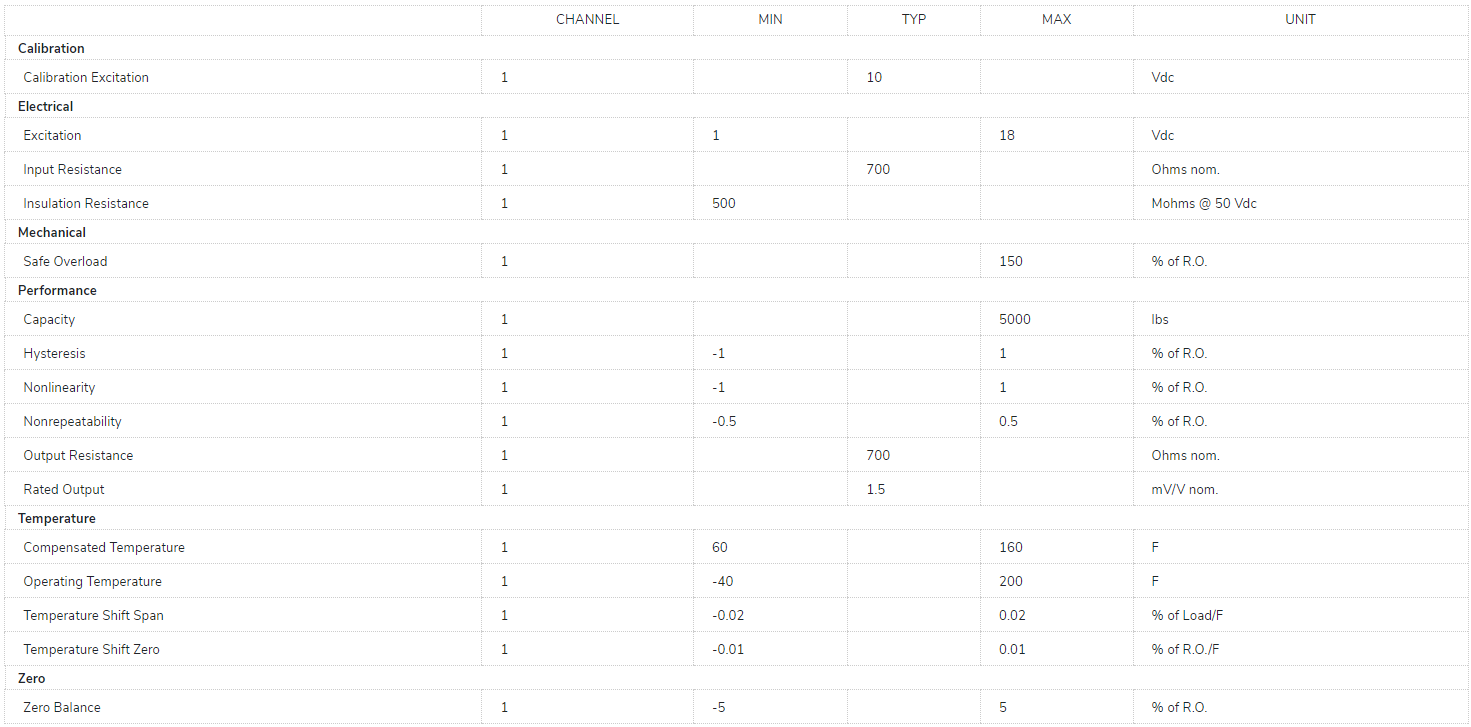

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
