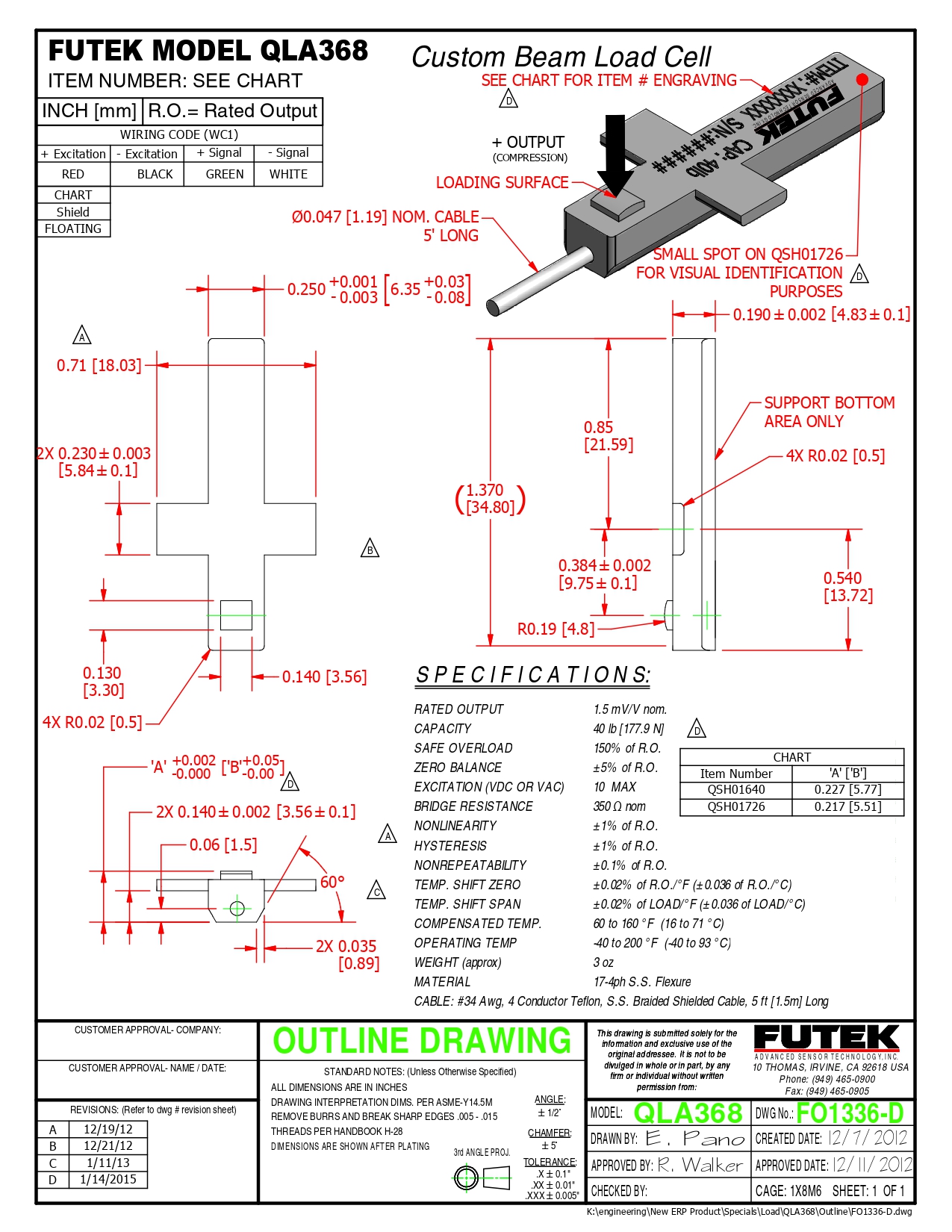

FUTEK QLA368 Custom Beam w/ Load Button

QLA368 , 40 lb , Custom Low Profile Beam Load Cell Designed for Laparoscopic Tool (MIS) Calibration/Verification , 0.217" [5.51 mm] Height , Material - 17-4PH , 34 Awg 4 Conductor Braided Cable , 5 ft Long

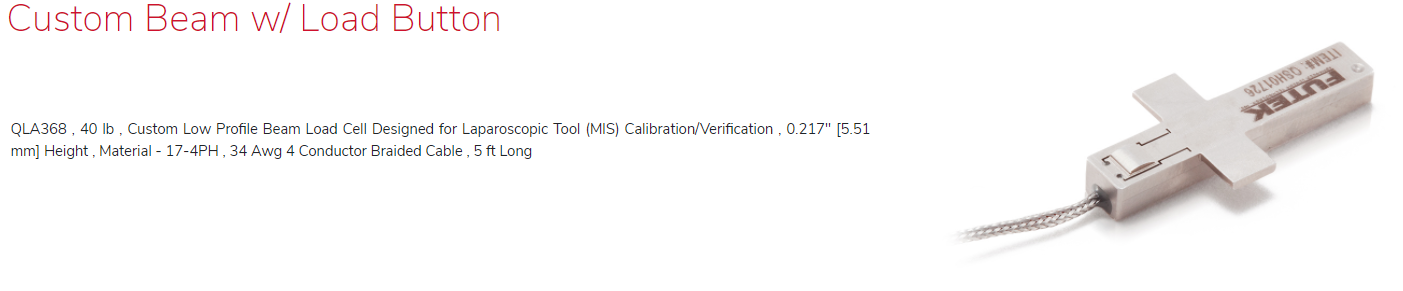

FUTEK QLA368 Custom Beam w/ Load Button 이미지

QLA368 , 40 lb , Custom Low Profile Beam Load Cell Designed for Laparoscopic Tool (MIS) Calibration/Verification , 0.217" [5.51 mm] Height , Material - 17-4PH , 34 Awg 4 Conductor Braided Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA368 , 40 lb , Custom Low Profile Beam Load Cell Designed for Laparoscopic Tool (MIS) Calibration/Verification , 0.217" [5.51 mm] Height , Material - 17-4PH , 34 Awg 4 Conductor Braided Cable , 5 ft Long

QSH01726

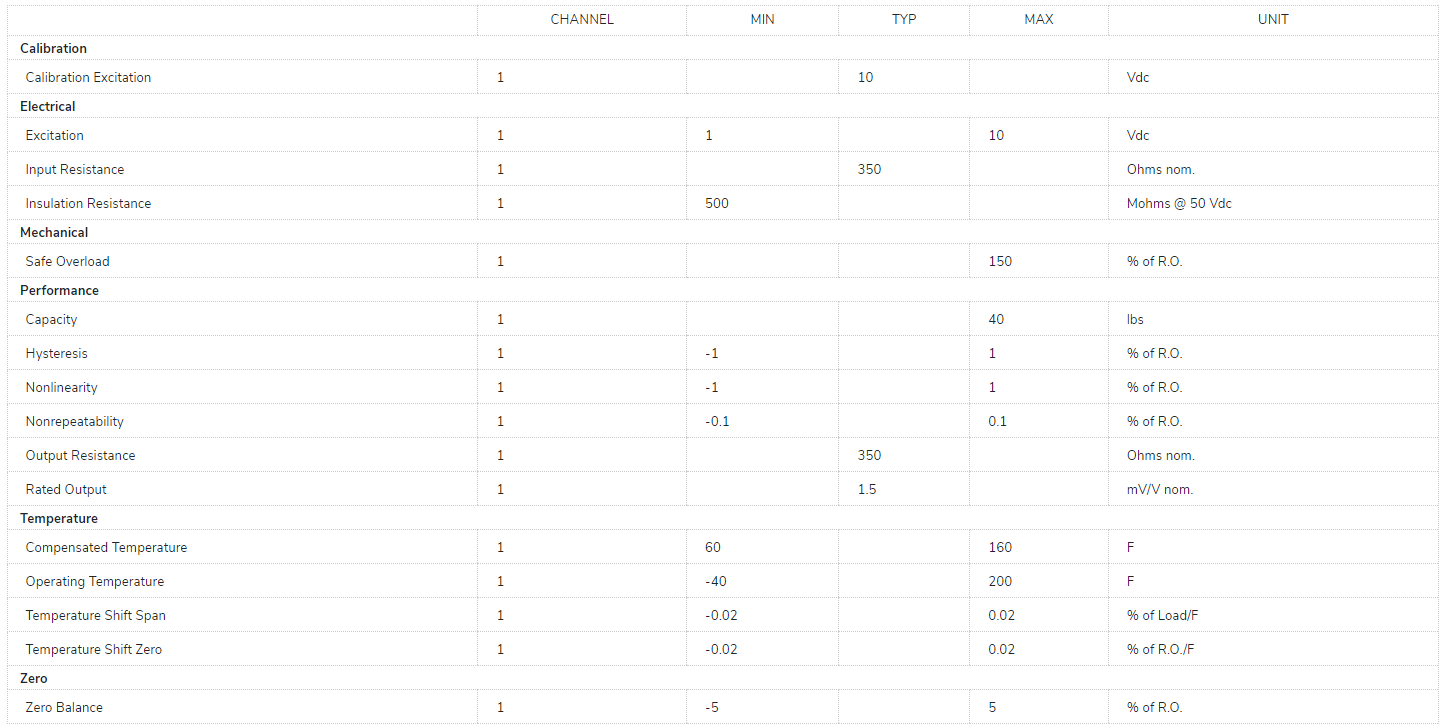

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
