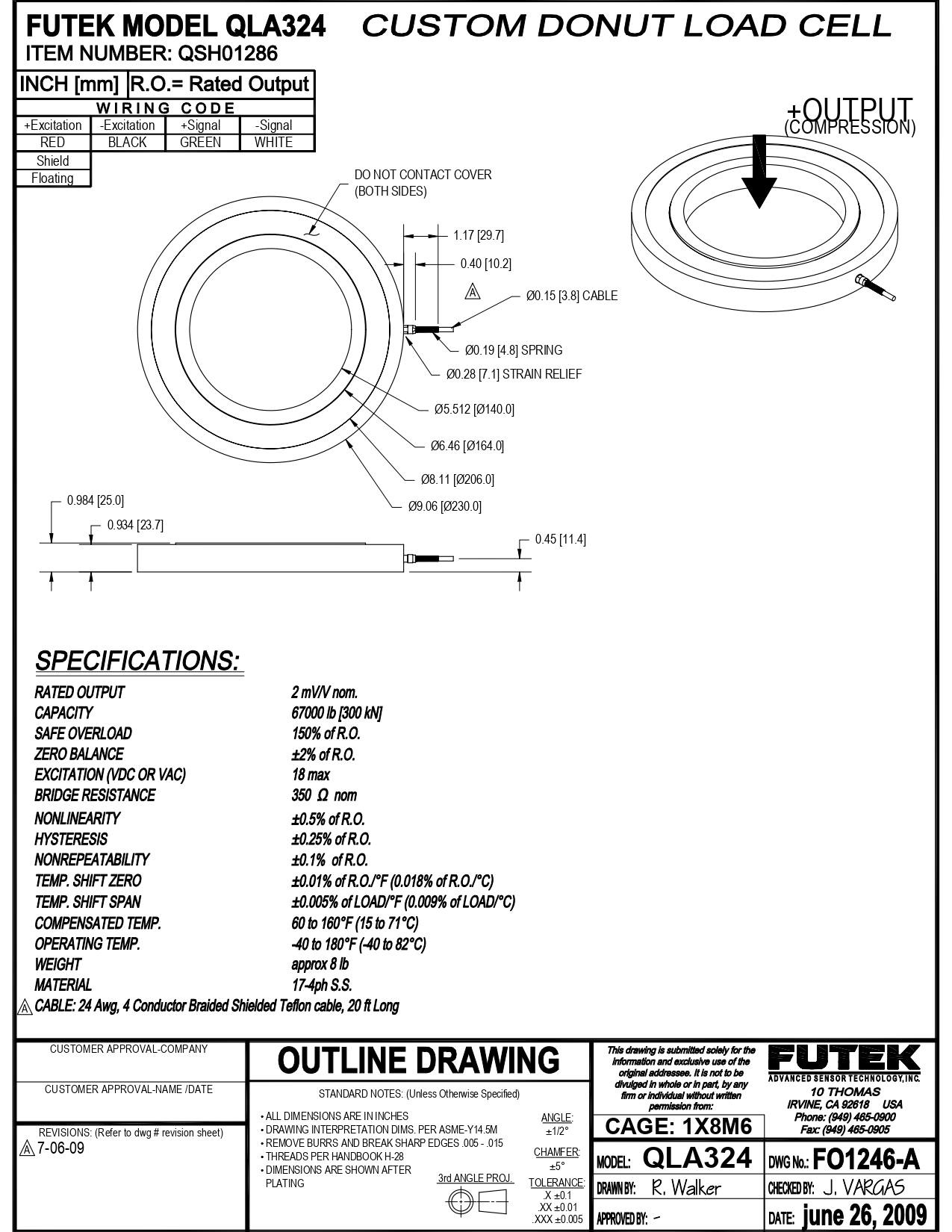

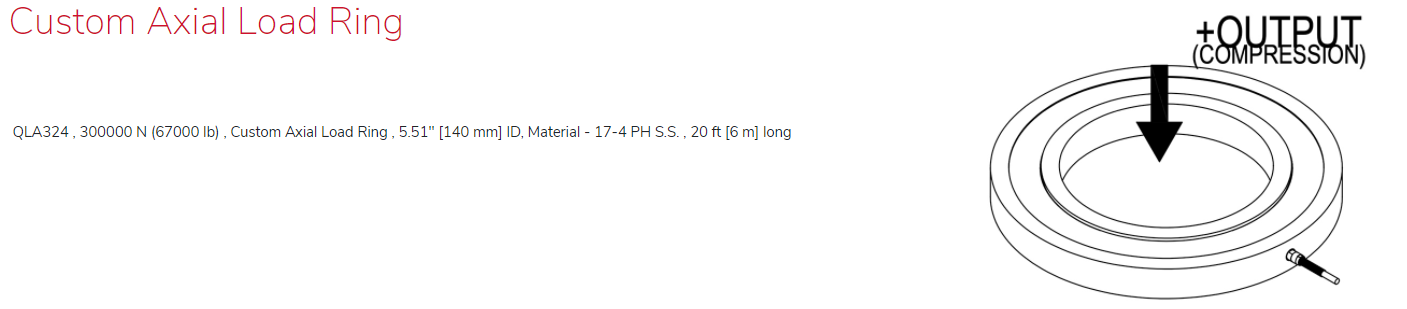

FUTEK QLA324 Custom Axial Load Ring

QLA324 , 300000 N (67000 lb) , Custom Axial Load Ring , 5.51" [140 mm] ID, Material - 17-4 PH S.S. , 20 ft [6 m] long

FUTEK QLA324 Custom Axial Load Ring 이미지

QLA324 , 300000 N (67000 lb) , Custom Axial Load Ring , 5.51" [140 mm] ID, Material - 17-4 PH S.S. , 20 ft [6 m] long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA324 , 300000 N (67000 lb) , Custom Axial Load Ring , 5.51" [140 mm] ID, Material - 17-4 PH S.S. , 20 ft [6 m] long

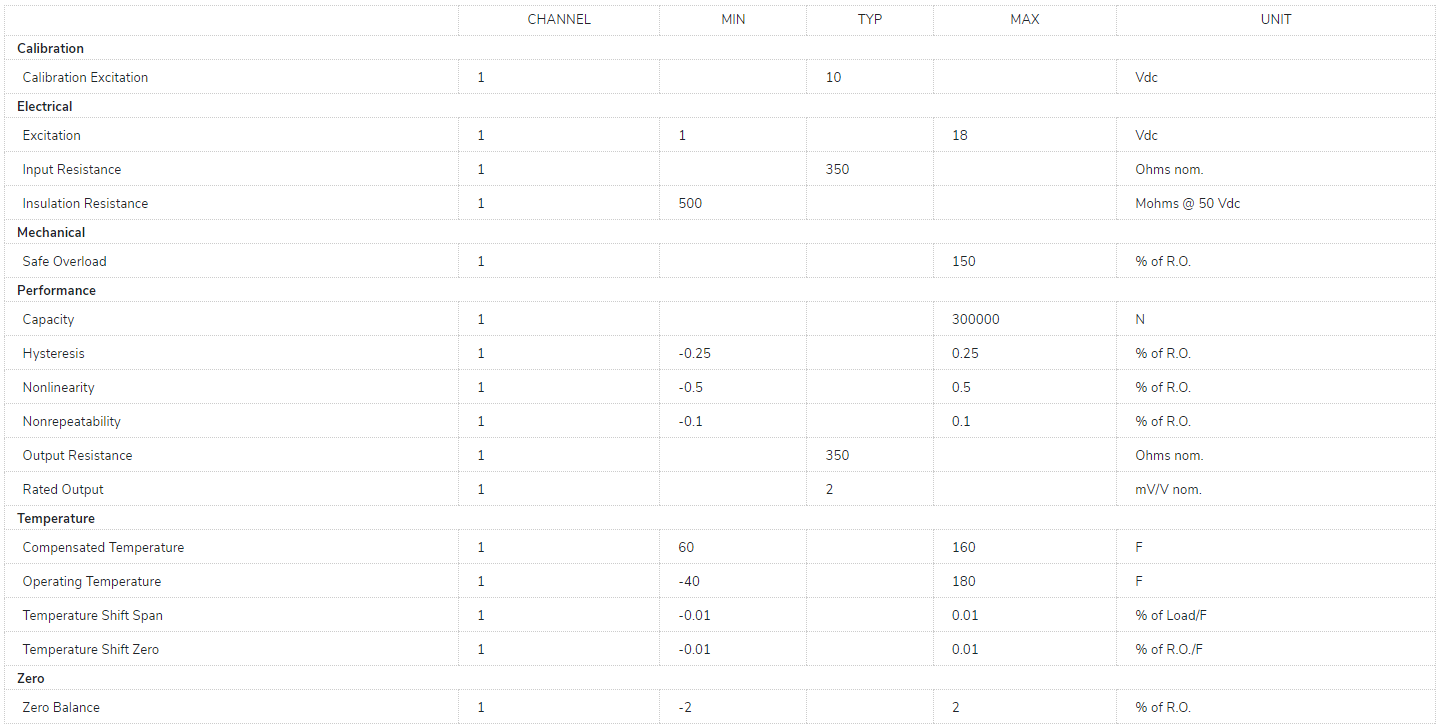

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
