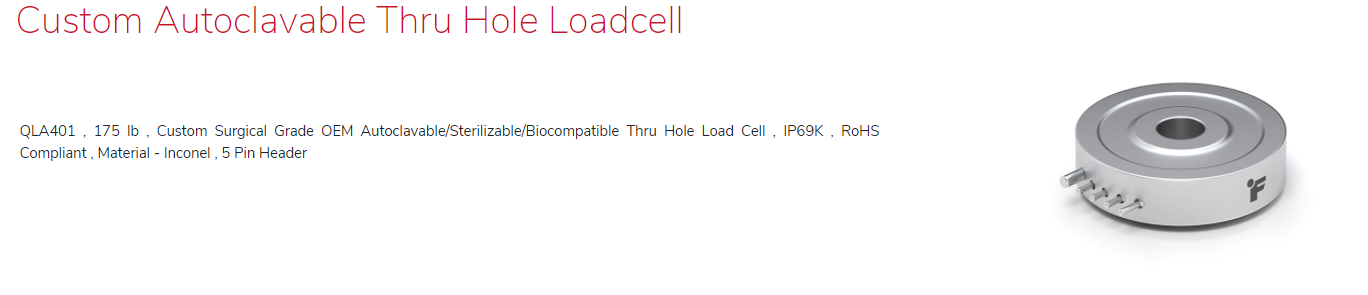

FUTEK QLA401 Custom Autoclavable Thru Hole Loadcell

QLA401 , 175 lb , Custom Surgical Grade OEM Autoclavable/Sterilizable/Biocompatible Thru Hole Load Cell , IP69K , RoHS Compliant , Material - Inconel , 5 Pin Header

FUTEK QLA401 Custom Autoclavable Thru Hole Loadcell 이미지

QLA401 , 175 lb , Custom Surgical Grade OEM Autoclavable/Sterilizable/Biocompatible Thru Hole Load Cell , IP69K , RoHS Compliant , Material - Inconel , 5 Pin Header

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA401 , 175 lb , Custom Surgical Grade OEM Autoclavable/Sterilizable/Biocompatible Thru Hole Load Cell , IP69K , RoHS Compliant , Material - Inconel , 5 Pin Header

Autoclavable Sensors Production Facility | Hermetically Sealed Load Cells

FUTEK Autoclavable Load Cells Overview

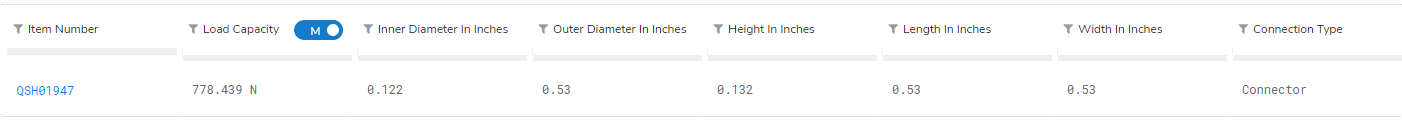

QSH01947

Description

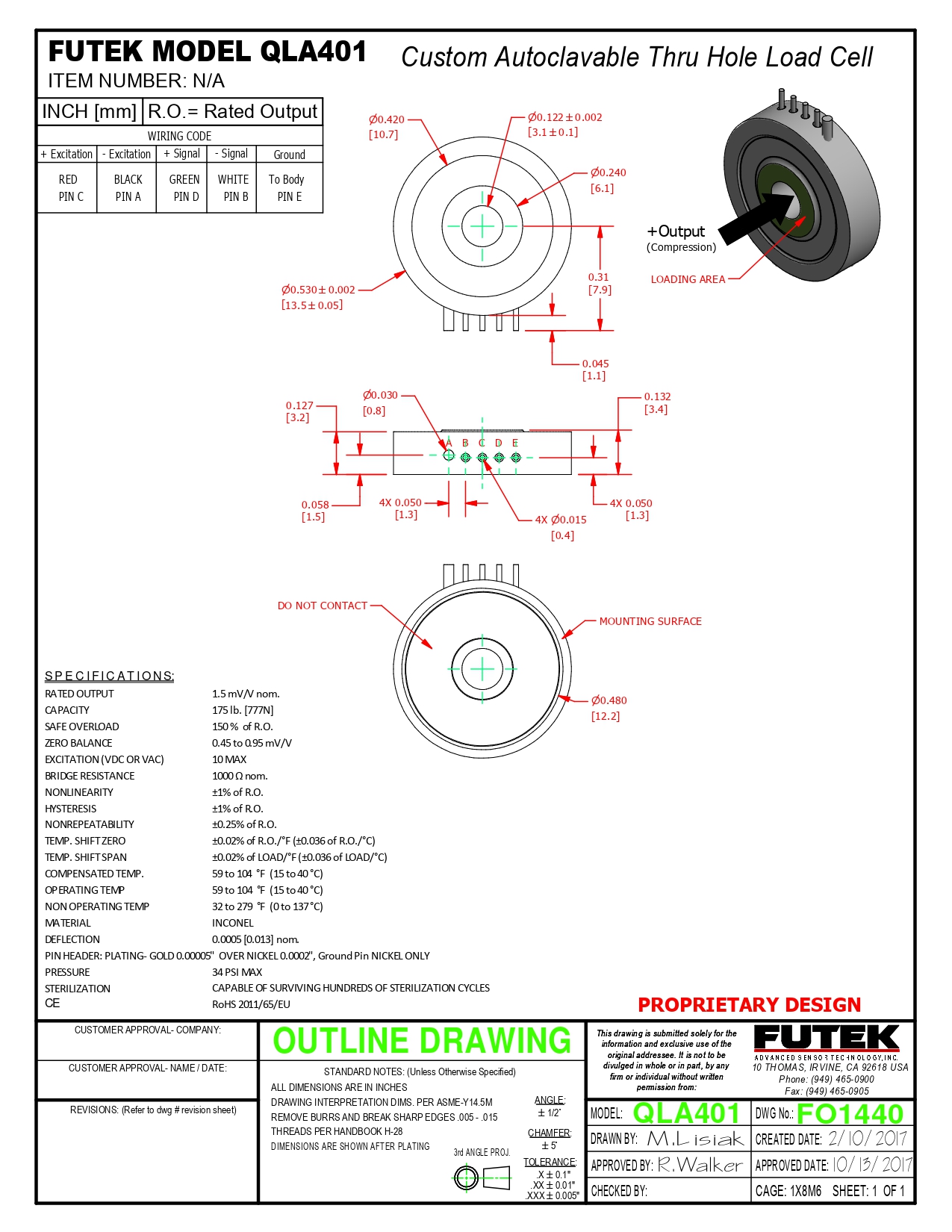

QLA401 Custom Autoclavable Thru Hole Loadcell

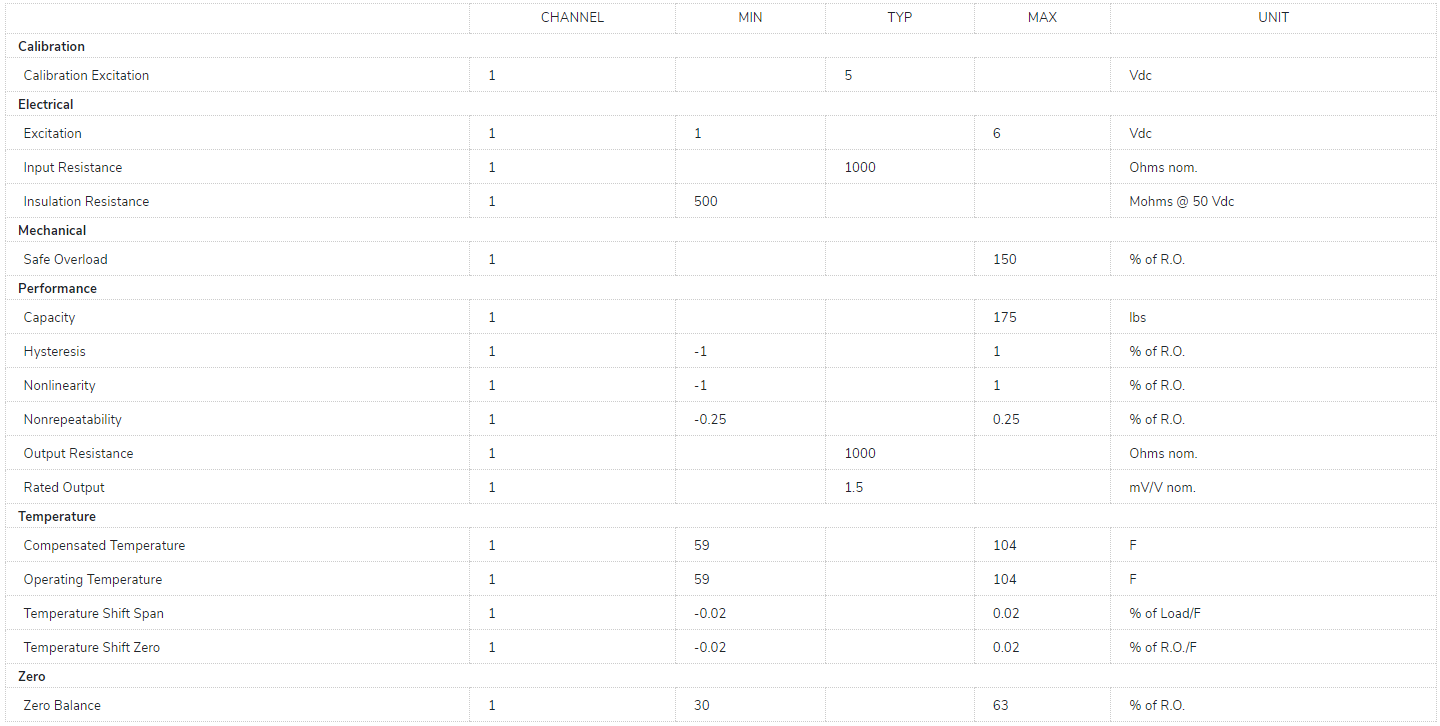

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
