FUTEK QLA295 Cryogenic Donut Load Cell

QLA295 , Ch 1: 200 N; Ch 2: 200 N , Custom Cryogenic Donut Load Cell , Dual Bridge , Vacuum Compatible / Low Outgassing Compliant to ASTM E595 , Material - S.S. , 0.93 " [23.7 mm] ID , 4x Twisted Pair Cable , Axial Cable Exit , 3.3 ft Long

FUTEK QLA295 Cryogenic Donut Load Cell 이미지

QLA295 , Ch 1: 200 N; Ch 2: 200 N , Custom Cryogenic Donut Load Cell , Dual Bridge , Vacuum Compatible / Low Outgassing Compliant to ASTM E595 , Material - S.S. , 0.93 " [23.7 mm] ID , 4x Twisted Pair Cable , Axial Cable Exit , 3.3 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA295 , Ch 1: 200 N; Ch 2: 200 N , Custom Cryogenic Donut Load Cell , Dual Bridge , Vacuum Compatible / Low Outgassing Compliant to ASTM E595 , Material - S.S. , 0.93 " [23.7 mm] ID , 4x Twisted Pair Cable , Axial Cable Exit , 3.3 ft Long

wQSH01025

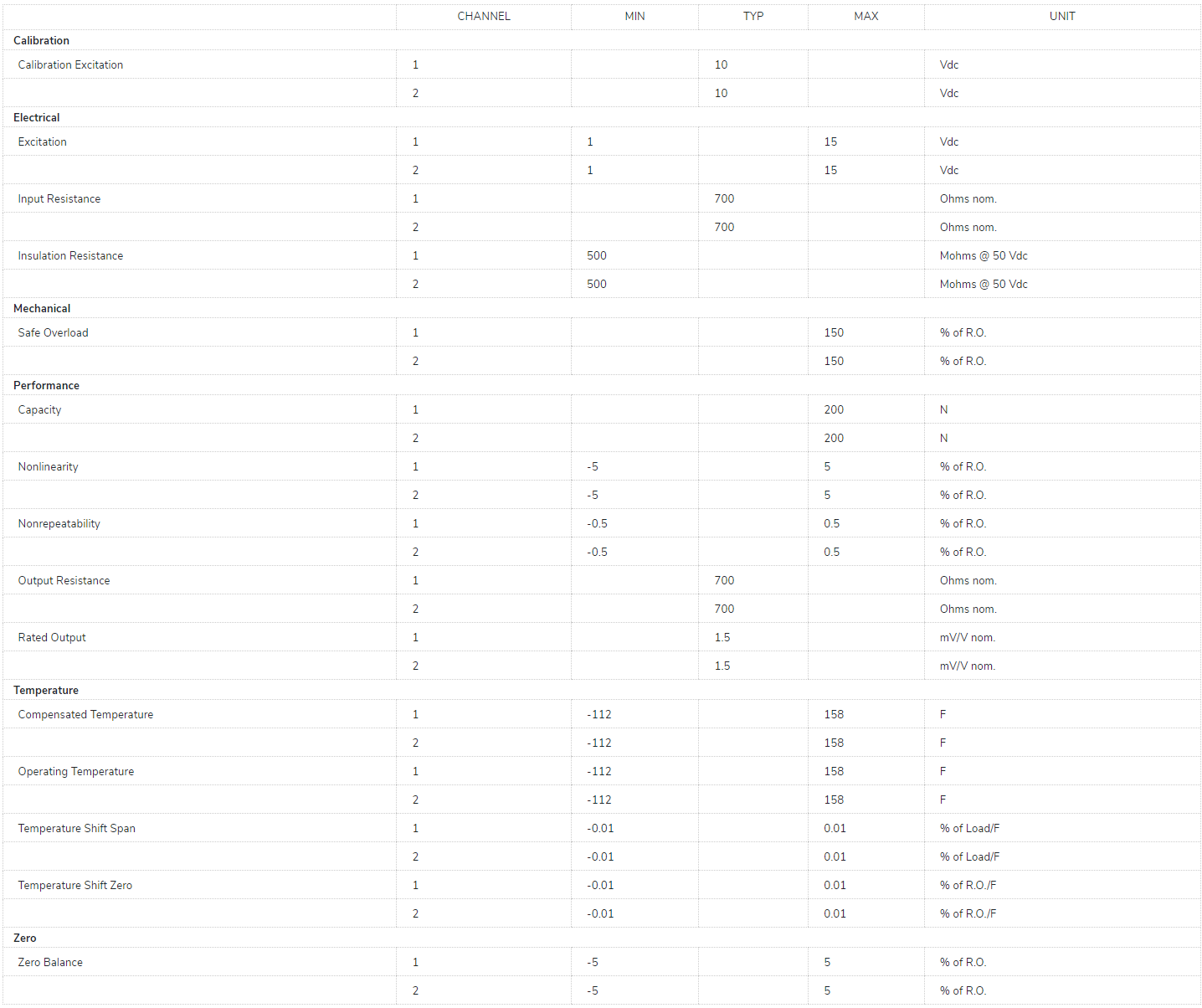

Specifications
